Bateson
Bateson PT66 - 18' x 7' Triple Axle Hydraulic tilt three axle platform trailer extra wide in stock 2.3m
Bateson PT66 - 18' x 7' Triple Axle Hydraulic tilt three axle platform trailer extra wide in stock 2.3m
Plus VAT
In stock
Couldn't load pickup availability
Bateson PT66 18' x 7' Triple Axle Multi‑Purpose Hydraulic Tilt, extra wide in stock 2.3m Trailer £7,150.00 (exc. VAT) – £8,580.00 (inc. VAT) ***SALE PRICE £6,792.00 (exc. VAT) - £8,150.40 (inc.VAT)
The PT66 hydraulic tilt platform trailer extends the proven PT56 design to 5660mm (18'), making it the largest model compatible with triple steel hinged sides. This extra-capacity platform is engineered for operators who need versatile load handling for light commercial vehicles or ground maintenance machinery with implements attached.
Key Features & Benefits
- Extended 18' platform – 5660mm body length provides additional capacity while maintaining manoeuvrability
- Hydraulic tilt operation – Smooth, controlled loading and unloading with minimal effort
- Triple steel hinged sides available – Optional 30cm (12") sides offer load containment and versatility (shown in the picture)
- Full-width rear loading ramp – Wide access for easy drive-on/drive-off operation
-
Multi-purpose design – Handles light comm
ercial vehicles, ground maintenance equipment, and machinery with attachments
Safety & Security
- Robust steel construction for reliable load support
- Hydraulic tilt system ensures controlled, stable loading angles
- Optional triple sides help secure loads during transport
- Full-width ramp design reduces tipping risk during loading
Practical Features
- Shares all proven features of the popular PT56 model
- Compatible with triple steel hinged side upgrades for added flexibility
- Ideal for operators requiring that extra capacity without stepping up to a larger trailer class
- Accommodates machinery with implements still attached, reducing prep time
Specifications
Trailer Weight & Capacity (KG)
| Gross Weight | 3500 |
| Unladen Weight | 935 |
| Capacity | 2565 |
Overall Dimensions (MM)
| Length | 6950 |
| Width | 2100 |
Internal Dimensions (MM)
| Length | 5660 |
| Width | 2100 |
Additional Information
| Tyre Size | 195-50 x 10 |
| Tow Ball Height | 430mm |

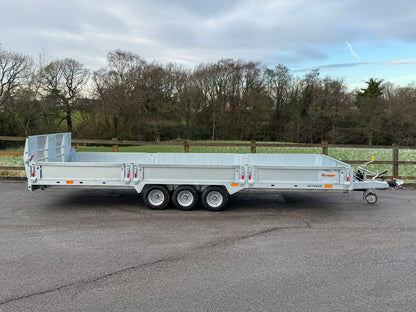

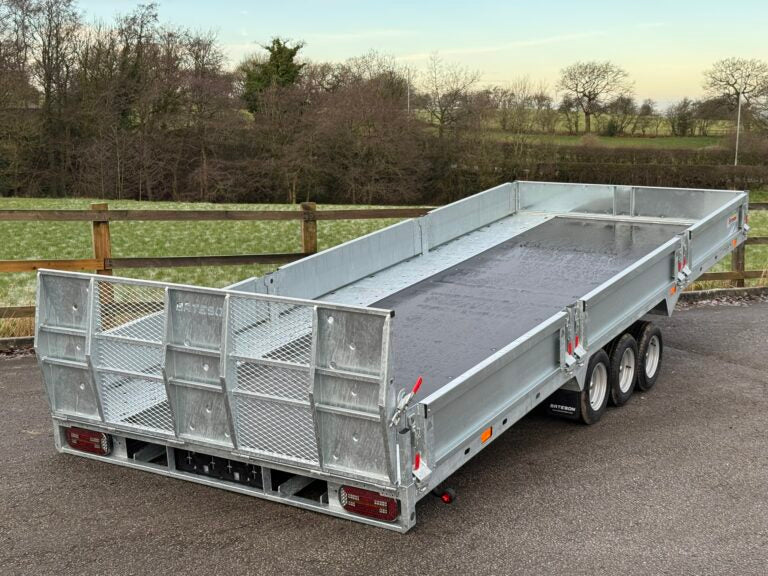

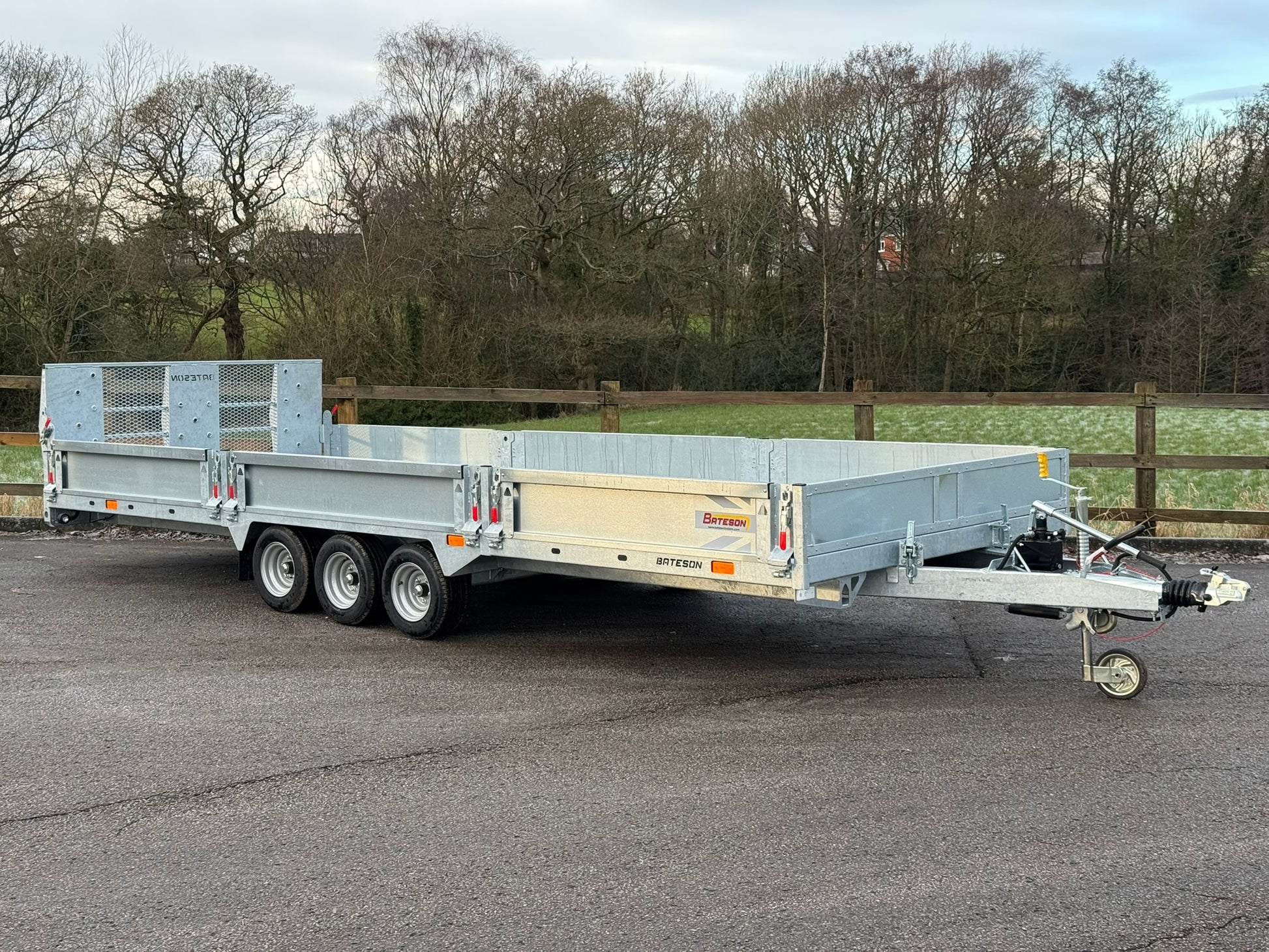

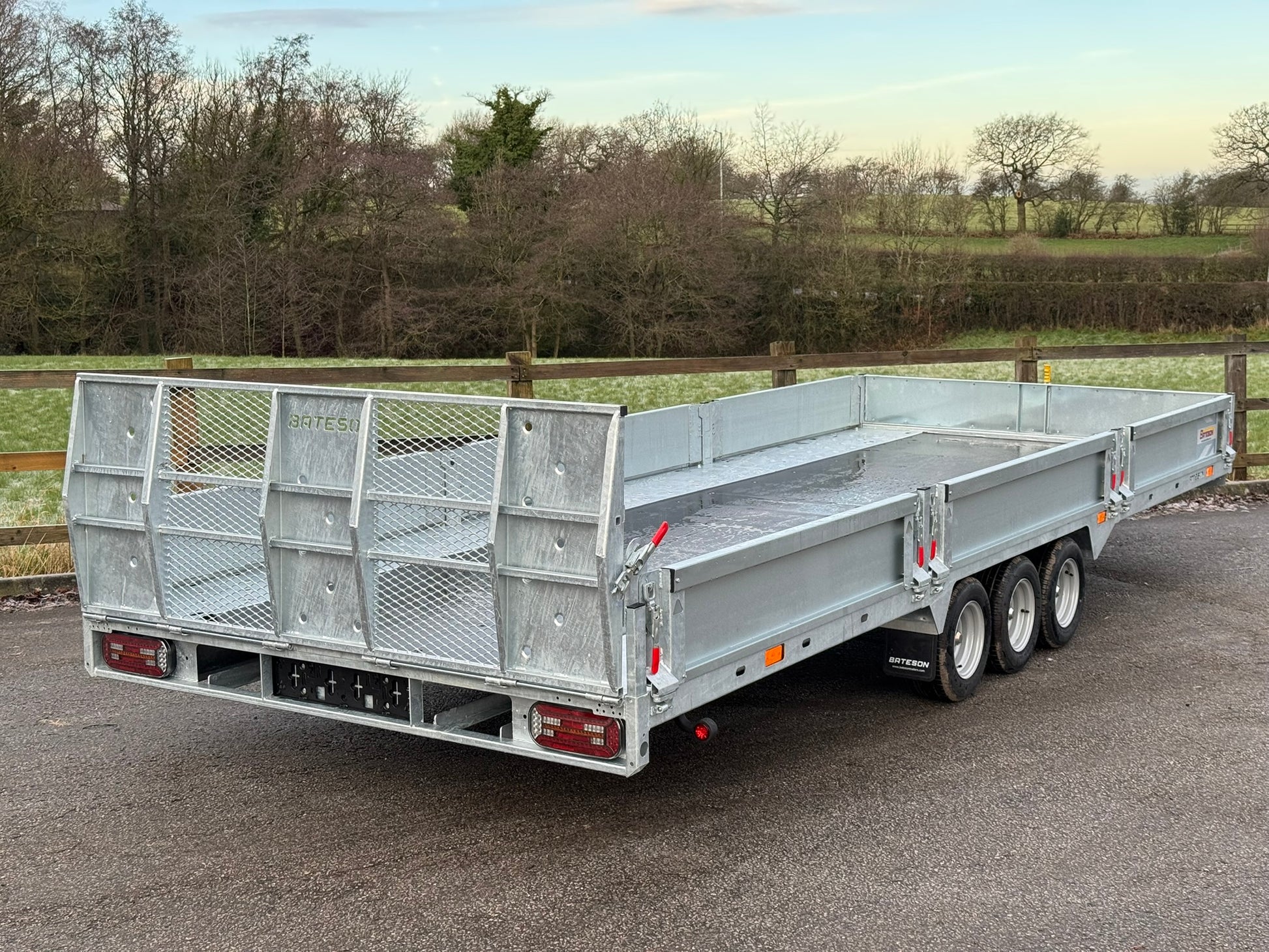

Trailer shown with full-width rear loading ramp and optional 30cm (12") triple steel sides upgrade.
Bateson PT66 Trailer Add-Ons
All prices exclude VAT at 20%. Carrying capacity may vary with optional specification.
| Add-On Option | Price (exc VAT) |
| 30cm (12") Triple Steel Sides | £675.00 |
| 195 x 10 Alloy Wheels x 6 | £300.00 |
| 2000kg Winch & Bracket PT Models | £425.00 |
| 4000kg Electric Winch w/ Battery & Bracket | £800.00 |
| Adjustable f'ront Wheel Chock | £85.00 |
| Extra Body Width to 2.3m | £400.00 |
| Headboard | £140.00 |
| Over wheel ratchet straps | £100.00 |
| Ramp extension blocks for low vehicles | £240.00 |
| Data Tag Security | £100.00 |
| Side Loading Ramps & Carrier | £165.00 |
| Underbody Strap Box | £140.00 |
| Wheel Clamp (Hydraulic Trailers) | £175.00 |
| Winch Bracket only | £100.00 |
| Deliver outside of Geographical Area | £130.00 |
| Service outside of 24 months or Geographical Area (subject to fuel surcharge) | £90.00 |
Bateson PT66 - 18' x 7' Triple Axle Multi‑Purpose Hydraulic Tilt Trailer
Is this trailer Free Service and Free Delivery
Yes if in the geographical area of Southern Scotland and Cumbria. The free labour only service must be taken within 24 months of purchase.
Is the Model PT66 suitable for use behind a 4x4?
Yes. The trailer is specifically designed to work safely and efficiently behind most 4x4 vehicles.
Does this trailer come fully galvanised?
Yes. The chassis and major components are fully galvanised for long-term corrosion protection.
Can I add ramps, winches or side extensions?
Yes. A wide range of professional add-ons including ramps, winches, mesh sides, alloy sides and floor upgrades are available.
What braking system does it use?
The trailer is fitted with auto-reversing overrun brakes for safe and effective stopping power.
Is independent suspension included?
Yes. It features Avonride fully independent rubber suspension axles for smooth towing under load.
What is the internal loading space?
The internal deck measures 5660mm x 2100mm with a flat platform height (0mm sides).
Call today: 0791 777 33 27 to discuss available add-ons and lead times.
