3500kg 35MD Plant Trailer/Mini Digger Trailer
3500kg 35MD Plant Trailer/Mini Digger Trailer
Plus VAT
In stock
Couldn't load pickup availability
3500kg 35MD Plant Trailer – Excavator Trailer for Tracked Machines up to 2775kg
£4,000.00 (ex. VAT) – £4,800.00 (inc. VAT)

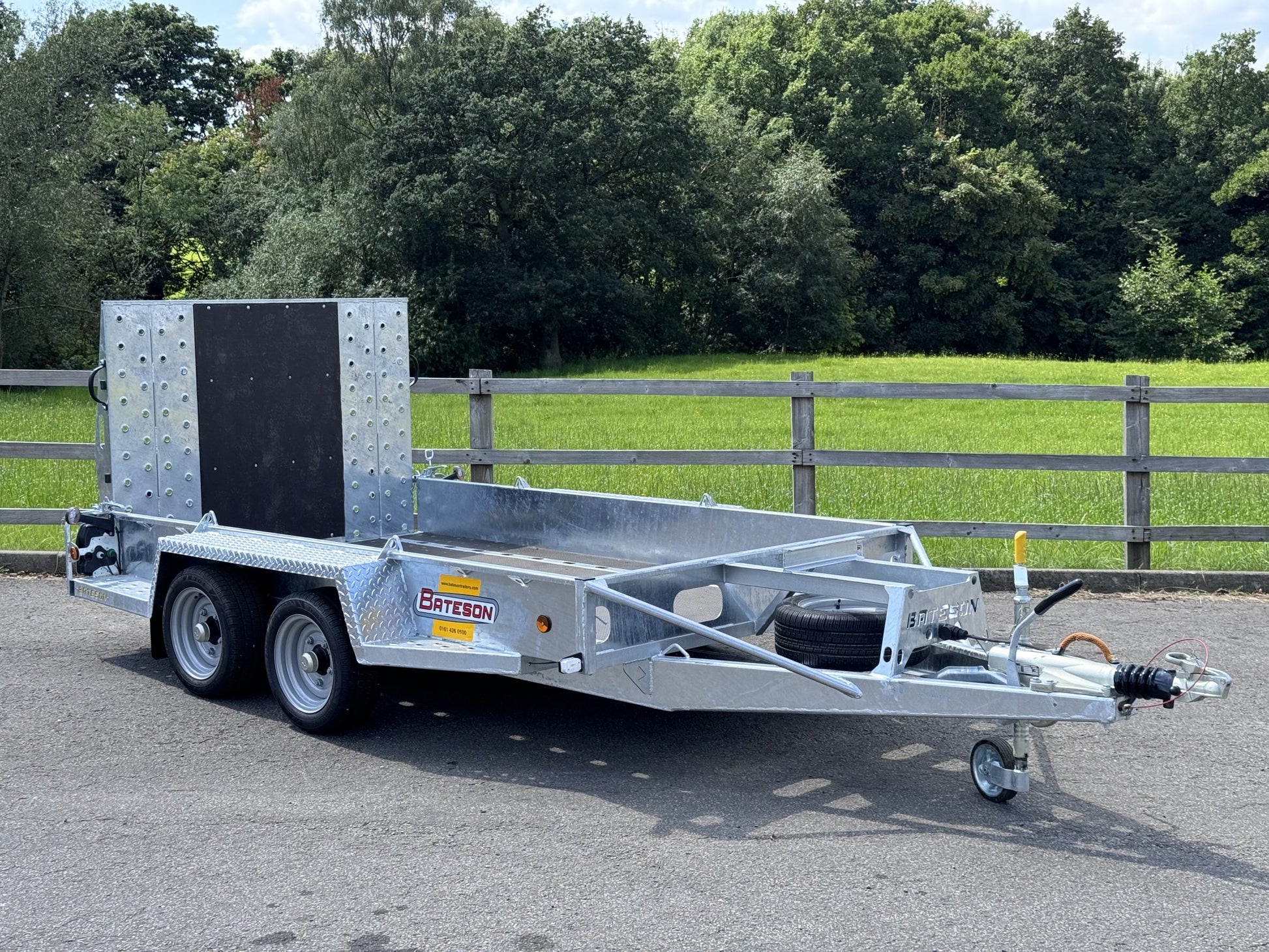

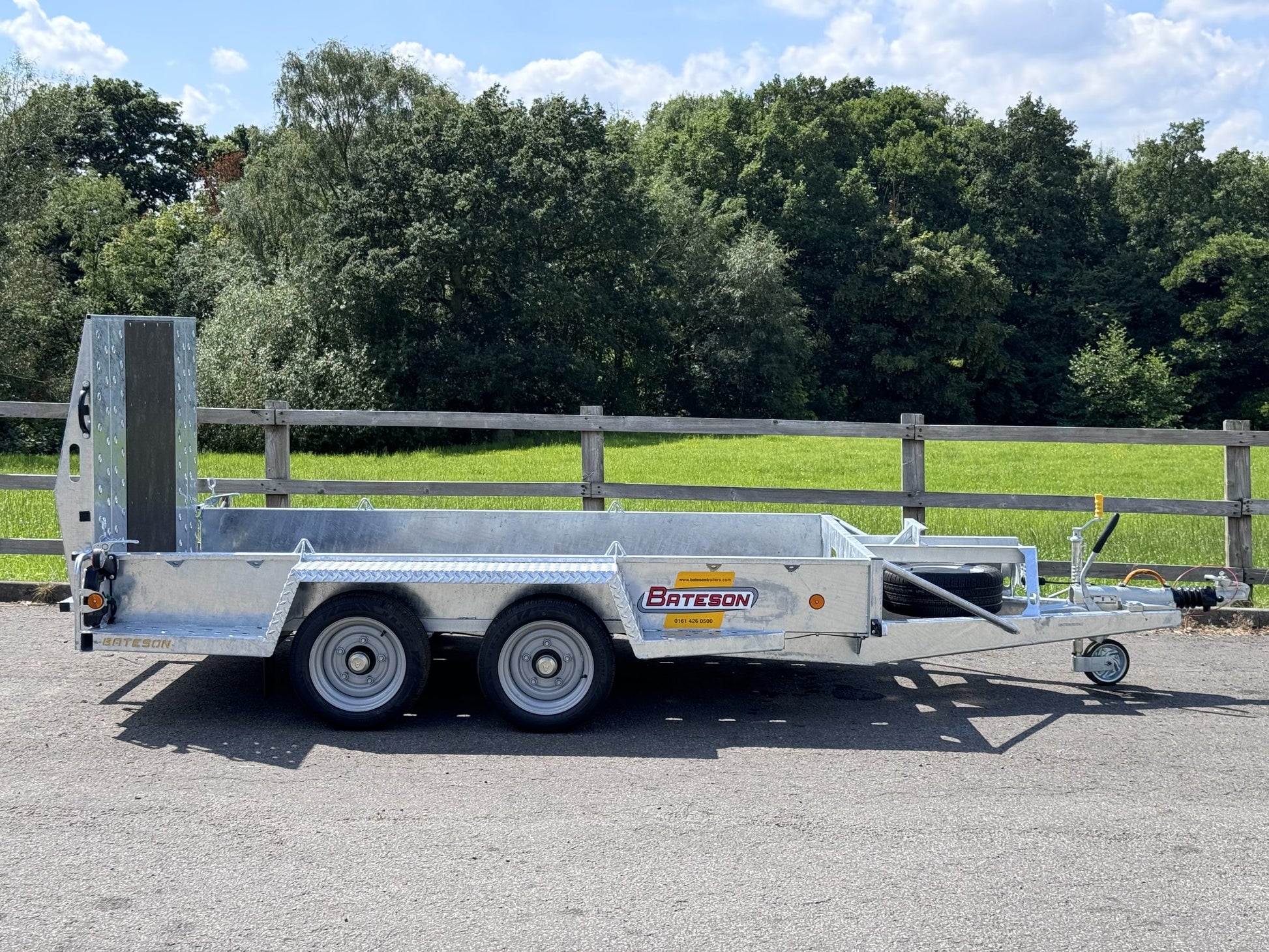

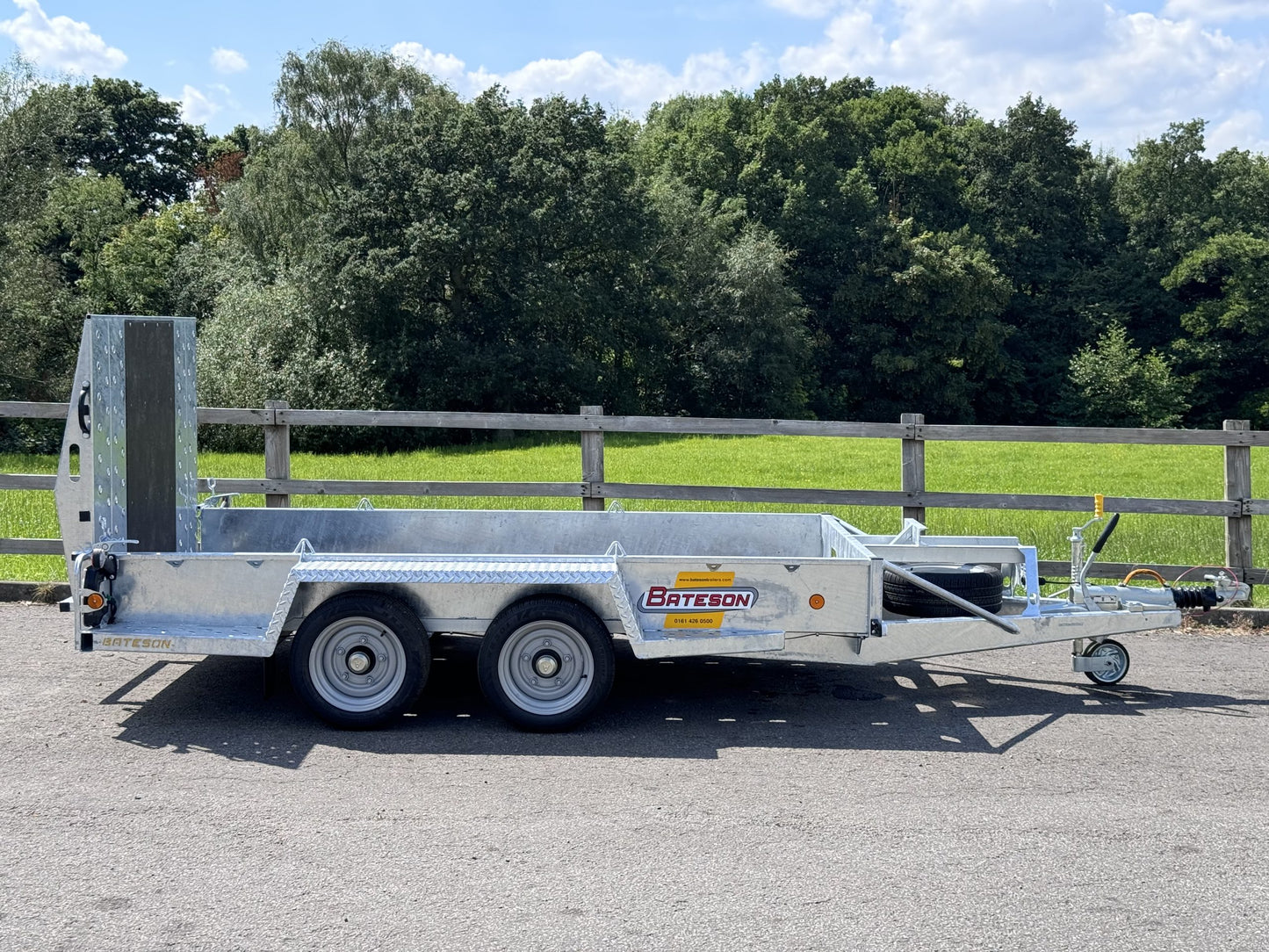

The 35MD shown is standard plus spare wheel.
Trailer also available in other sizes – see full range at www.Batesontrailers.com Plant Trailers which can be purchased from us.
The Model 35MD is a purpose-built plant trailer designed to transport tracked machines up to 2775kg within the maximum legal gross weight of 3500kg. Fabricated with a one-piece heavy-duty, hot-dipped galvanised steel chassis with integral welded steel mudguards, the 35MD is built to handle the toughest plant transport demands day after day. Supplied without a spare wheel as standard to keep unladen weight to a minimum, allowing the heaviest possible machines to be carried legally. For wheeled machines, we recommend the TP range.
Many special trailers have been manufactured based on the 35MD to transport all types of equipment, including lighter versions for tracked stone crushers and hydraulic tilt variants for scissor-type access platforms or sweeping machines with minimum ground clearance. Please contact us if your combination of trailer and load weighs less than 3500kg – we would be pleased to quote for your requirements.
Please note: Trailers in excess of 3500kg gross weight require power braking, must be added to your operator’s licence, and require an annual HGV test.
Key Features & Benefits
- 3500kg gross weight / 2775kg payload capacity – Maximises legal carrying capacity for tracked plant
- One-piece hot-dipped galvanised steel chassis – Superior corrosion resistance and long-term durability

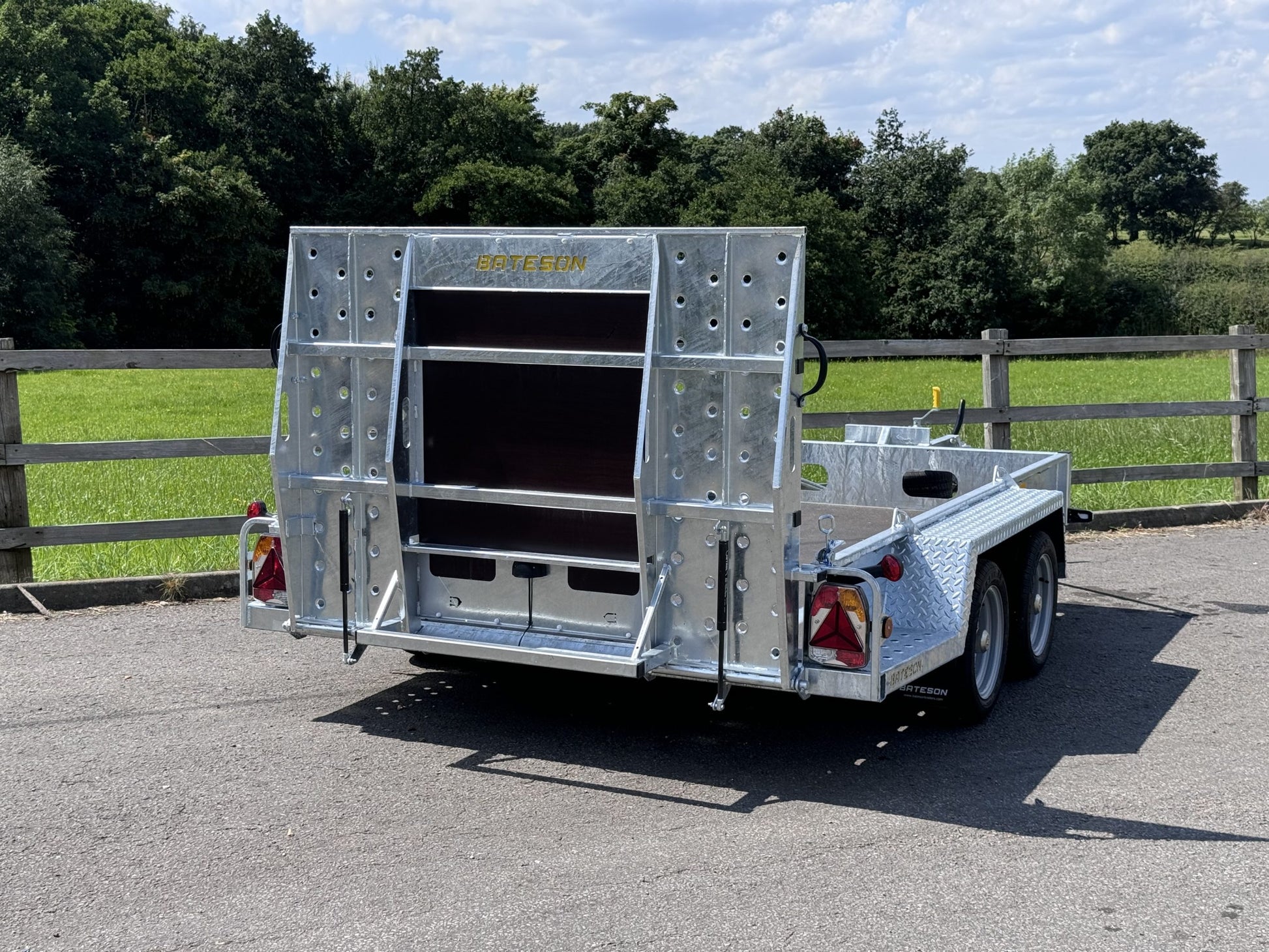

- Heavy-duty full-width gas-assisted ramp door – Suitable for all machine types including rollers; 18-degree approach angle for easy loading
- Extended drawbar with raised bucket carrier and hooks – Accommodates excavator buckets and attachments without additional handling
- Solid steel sides with welded securing hooks – Enables heavy machines to be strapped down securely to the chassis
- Optional body length extension to 3600mm – Accommodates longer machines (unladen weight increases to 770kg, payload reduces to 2730kg)
- Open centre floor option – Separate hinged ramps reduce unladen weight to 665kg, increasing payload to 2835kg
- Hydraulic tilt option available – Enables loading of scissor-type access platforms and sweeping machines with minimum ground clearance
Safety & Security
- Lockable 50mm ball coupling as standard (pin type hitch available as a free option) for secure towing
- Ramp-mounted legs provide stability during loading and unloading
- Gas-assisted ramp door with 18-degree approach angle reduces risk of machine grounding during loading
- Welded securing hooks on chassis allow machines to be strapped down firmly for transit
- Full road lighting system fitted as standard for legal road use
- Optional Data Tag Security and Wheel Clamps available for added theft deterrence
Practical Features
- Heavy-duty full-width gas-assisted ramp door suitable for rollers and all tracked machines
- Extended drawbar with raised bucket carrier – no need to remove buckets before loading
- Ribbed jockey wheel for easy manoeuvring when uncoupled
- Stand-on mudguards for safe access around the trailer
- Full-width floor for maximum load support
- No spare wheel fitted as standard to maximise payload
- Optional body length extension (3000mm to 3600mm) and body width options available
- Can be manufactured with open centre floor and separate hinged ramps for reduced unladen weight
Specifications
| Specification | Detail |
| Gross Weight | 3500 kg |
| Unladen Weight | 725 kg |
| Payload Capacity | 2775 kg |
| Overall Length | 4860 mm |
| Overall Width | 2160 mm |
| Internal Length | 3030 mm |
| Internal Width | 1680 mm |
| Ramp Approach Angle | 18 degrees |
| Tyre Size | 195-50 x 13 |
| Tow Ball Height | 450 mm |
| Coupling | Lockable 50mm ball (pin type hitch available as free option) |
| Product Add-Ons | Price (ex. VAT) |
| Extra Body Length from 3000mm to 3600mm | £300.00 |
| Extra Body Width, 1525mm, 1670mm, 1820mm max | £300.00 |
| Spare Wheel and Carrier 195-50 x 13 | £150.00 |
| Data Tag Security | £110.00 |
| Wheel Clamps | £170.00 |
| Delivery Charge in England, Wales and Southern Scotland | £130.00 |
| Service outside of 24 months or Geographical Area (subject to fuel surcharge) | £90.00 |
Model 35MD Plant Trailer – Frequently Asked Questions
What is the maximum payload of the 35MD?
The 35MD has a gross weight of 3500kg and a standard payload capacity of 2775kg, with an unladen weight of 725kg. If the optional extended body length (3600mm) is specified, the unladen weight increases to 770kg, reducing the payload to 2730kg. With the open centre floor and separate hinged ramps option, the unladen weight reduces to 665kg, giving a maximum payload of 2835kg.
What types of machines can the 35MD transport?
The 35MD is designed for tracked machines up to 2775kg, including mini excavators, tracked dumpers, rollers, and tracked stone crushers. For wheeled machines, we recommend the TP range. A hydraulic tilt option is also available for scissor-type access platforms and sweeping machines with minimum ground clearance.
Does the 35MD require overrun brakes?
Yes. At 3500kg gross weight, the 35MD is fitted with overrun brakes as required by law. Please note that trailers exceeding 3500kg gross weight require power braking, must be added to your operator’s licence, and require an annual HGV test.
Is this trailer FREE Service and FREE delivery?
Yes if in the geographical area of Southern Scotland and Cumbria. The free labour only service must be taken within 24 months of purchase.
What is the ramp approach angle?
The 35MD is fitted with a heavy-duty full-width gas-assisted ramp door with an 18-degree approach angle, suitable for all types of tracked machines including rollers.
Can the body length or width be extended?
Yes. The body length can be extended from the standard 3000mm to 3600mm for £300.00 ex. VAT (note this increases unladen weight to 770kg). Additional body width options (1525mm, 1670mm, 1820mm max) are also available for £300.00 ex. VAT. See the Product Add-Ons section for details.
Why does the 35MD not come with a spare wheel as standard?
The spare wheel is omitted as standard to keep the unladen weight as low as possible, allowing the maximum legal payload of 2775kg to be carried within the 3500kg gross weight limit. A spare wheel and carrier (195-50 x 13) is available as an optional add-on for £150.00 ex. VAT.
What coupling type does the 35MD use?
The 35MD is supplied with a lockable 50mm ball coupling as standard. A pin type hitch is available as a free option – please specify at the time of order.
Is the 35MD road legal?
Yes. The 35MD is supplied with a full road lighting system and meets legal requirements for road use up to 3500kg gross weight. Trailers exceeding 3500kg require power braking, an operator’s licence entry, and an annual HGV test.
Can the 35MD be customised for special requirements?
Yes. Many special trailers have been manufactured based on the 35MD platform. If your combination of trailer and load weighs less than 3500kg, please contact us and we will be pleased to quote for your specific requirements.
Call today: 0791 777 33 27 to discuss 35MD Plant Trailer availability and options.
