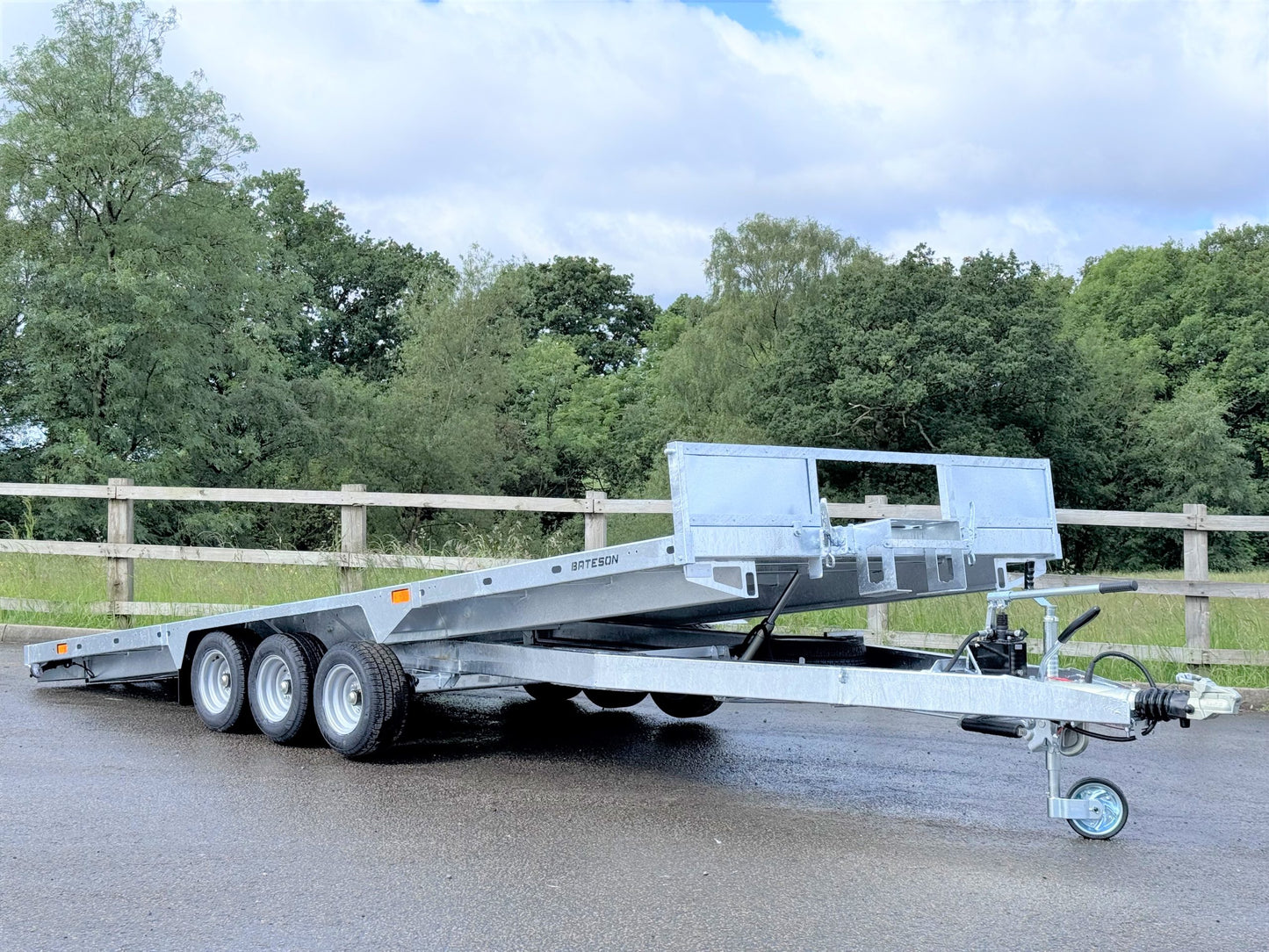

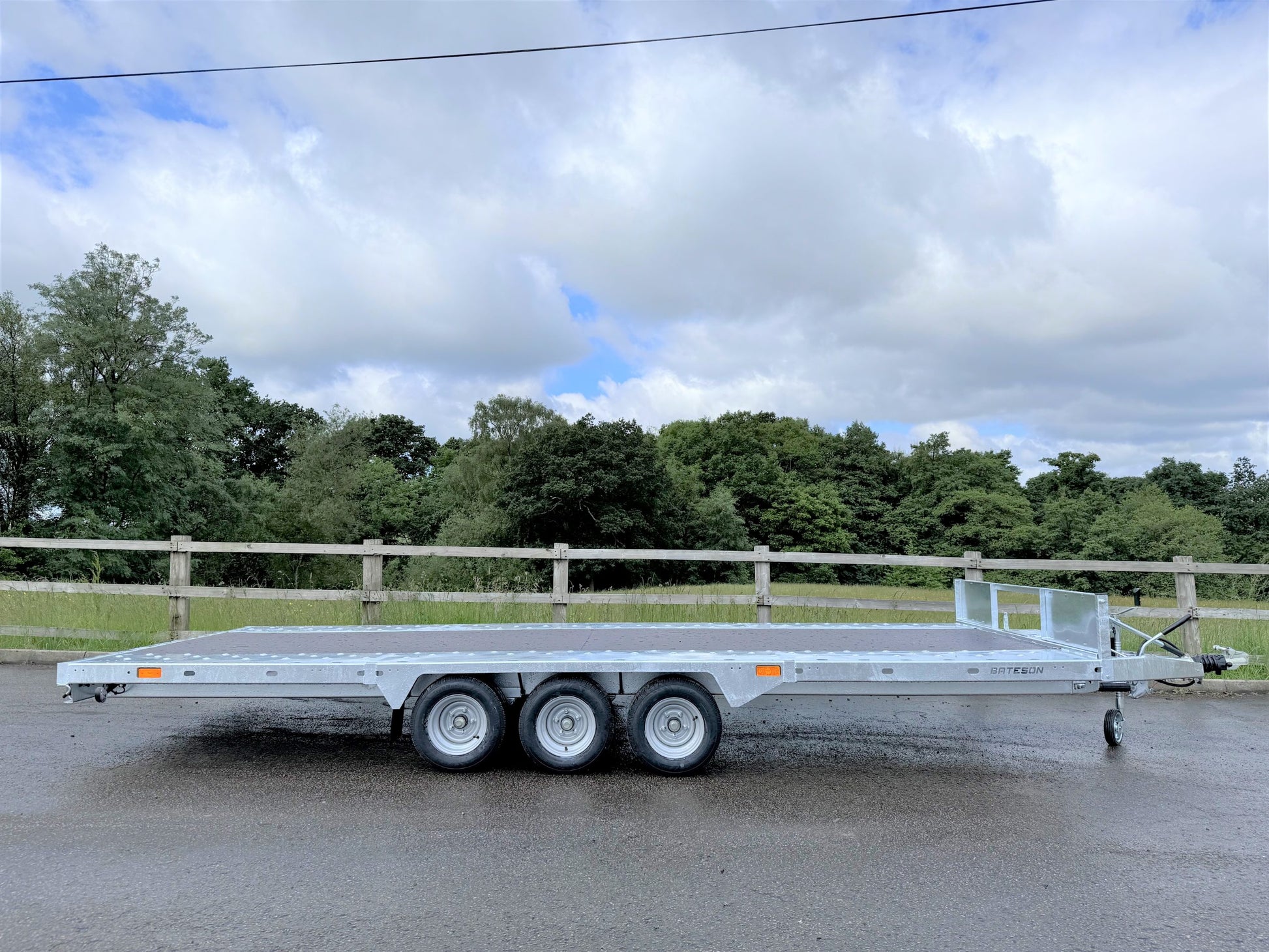

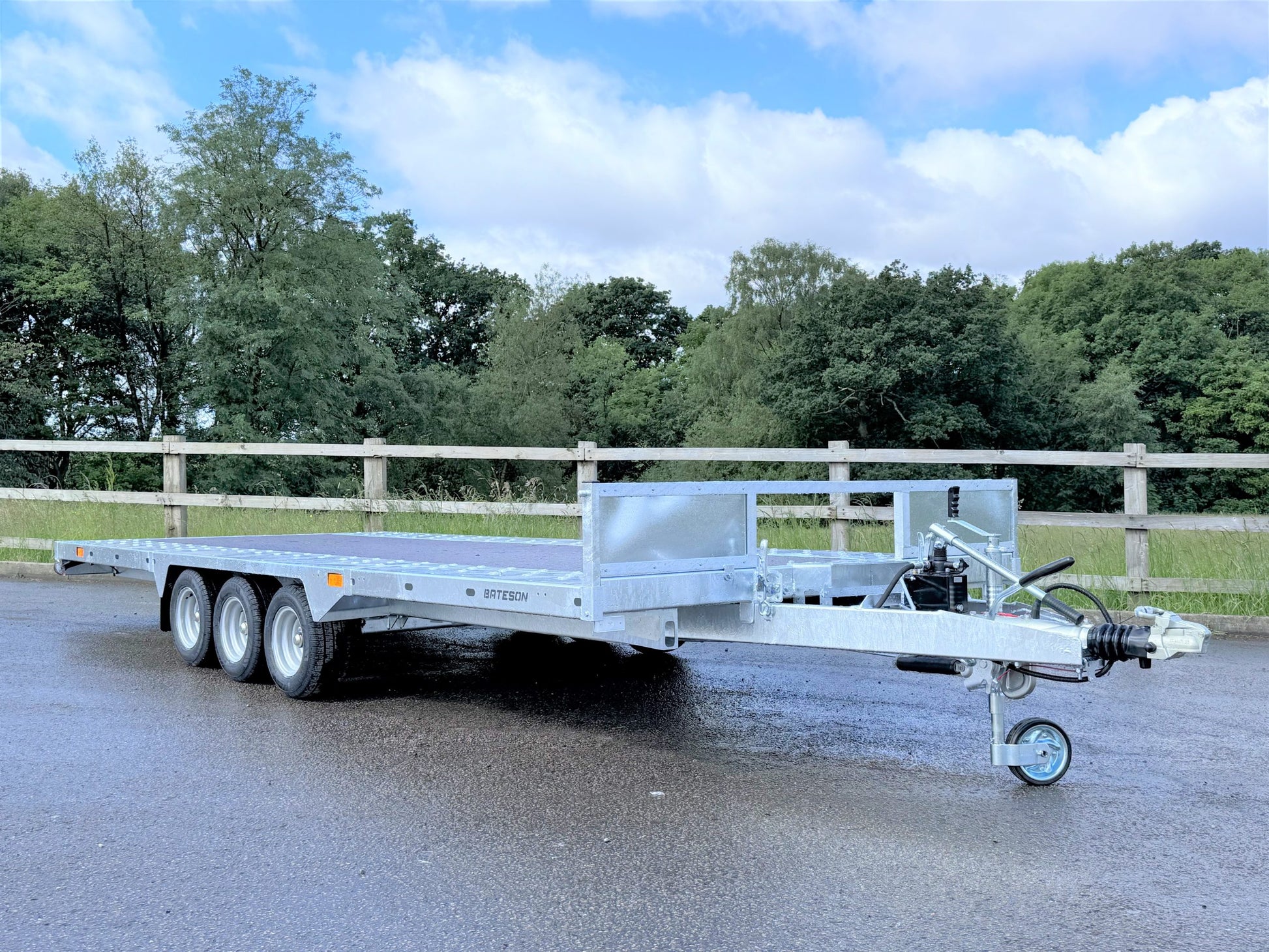

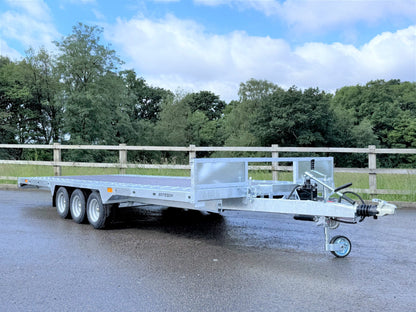

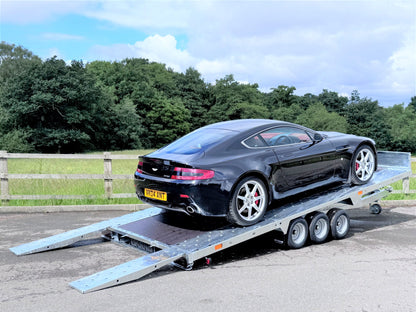

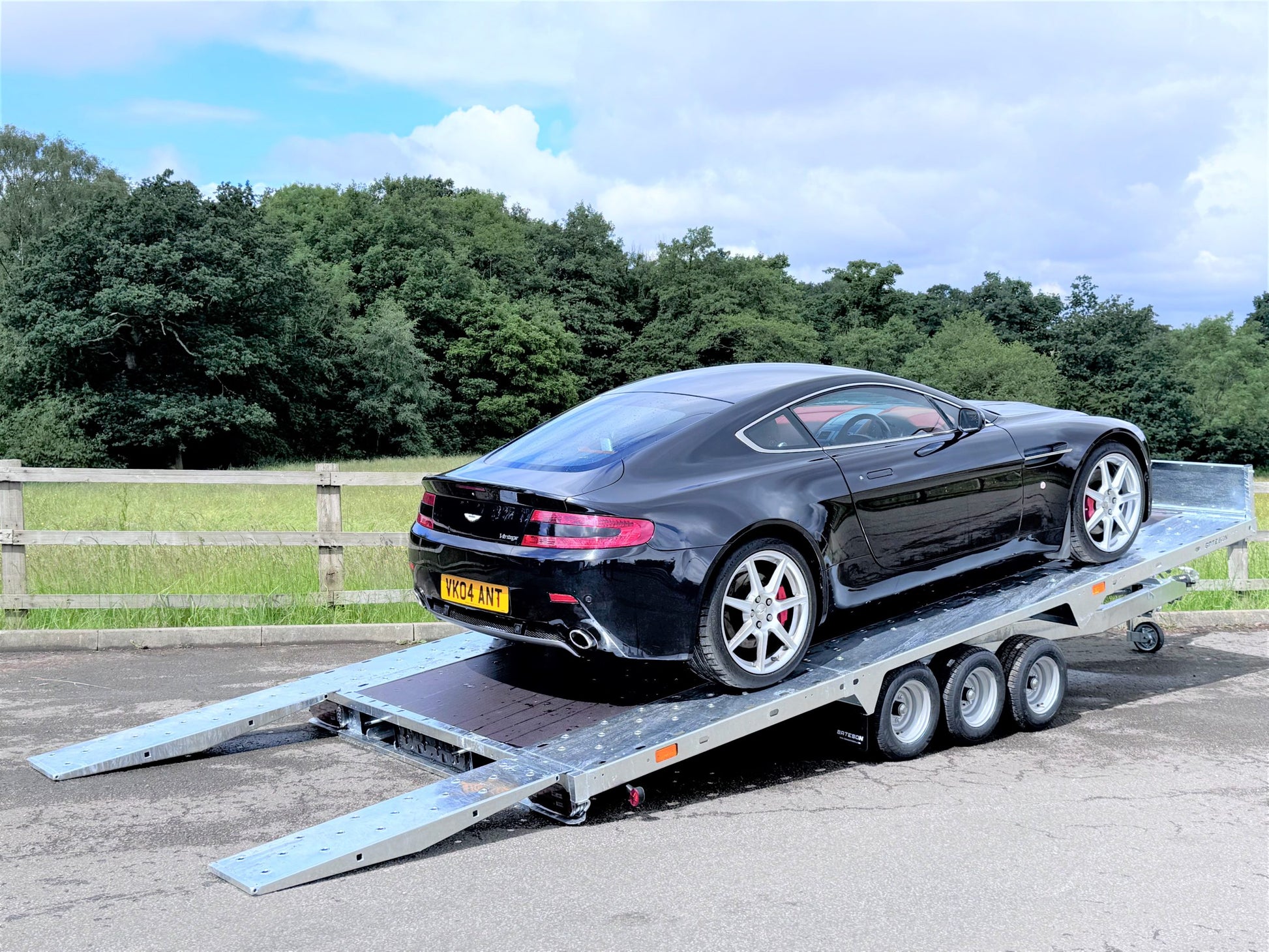

Bateson PT56 - 16' x 7' Triple Axle Multi‑Purpose Hydraulic Tilt Trailer
Bateson PT56 - 16' x 7' Triple Axle Multi‑Purpose Hydraulic Tilt Trailer
Plus VAT
In stock
Couldn't load pickup availability
Bateson PT56 16' x 7' Triple Axle Multi‑Purpose Hydraulic Tilt Trailer £6,450.00 (exc. VAT) – £7,740.00 (inc. VAT)
The PT56 is the flagship model in the multi-purpose hydraulic tilt trailer range—engineered for versatility, strength, and effortless loading. Its low deck height, hydraulic tilt system, and robust triple-axle design make it the ideal choice for transporting vehicles, machinery, and equipment safely and efficiently.
Built to the highest standards, the PT56 is plated at the legal maximum 3500 kg gross weight but can also be down-plated for compatibility with tow vehicles that require a lower permitted train weight.
Key Features & Benefits of the Bateson PT56 16' Triple Axel Hydraulic Trailer
Hydraulic Tilt Deck
- Smooth, controlled hydraulic tilt provides a gentle loading angle.
- Ideal for low‑clearance or heavy machinery and vehicle loading.
- Safer, quicker, and easier than manual ramp-only systems.
Triple 1500 kg Axles (4500 kg rated total)
- Three heavy-duty axles deliver enhanced stability under load.
- All six wheels stay grounded even when tilted—improving traction and balance.
- Legally plated to 3500 kg, offering excellent payload capacity.
Low Deck Height
- Improved loading access.
- Lower centre of gravity for safer towing.
- Reduced unladen weight, increasing actual usable capacity.
Integrated Strengthened Chassis
- Main chassis runners form part of the deck for added rigidity.
- Reinforced design reduces twist and improves durability.
- Tyre grips and load‑securing points are cut directly into the chassis for ease of use.
Safety & Security
-
Auto-Reversing Overrun Brakes (All Wheels):
Ensure responsive braking performance for safer towing. -
Constant Loading Angle Ramp:
The 75 cm hinged rear ramp provides predictable, safe access for vehicles and equipment. -
Optional Slide‑Under Loading Ramps:
Available at no extra cost—ideal for operators who prefer traditional paired ramps. -
Stable Triple‑Axle Towing:
Enhanced weight distribution reduces sway and improves control. -
Strong, Removable Steel Sides (Optional):
Three-piece design with lift-out posts increases load security while maintaining flexibility.
Practical Features
-
Multi‑Purpose Design:
Perfect for cars, mini diggers, plant machinery, and general transport. -
Removable Side Panels:
Convert between a flatbed and sided trailer in minutes. -
Wide Internal Bed (2100 mm):
Suitable for a broad range of vehicles and loads. -
Two Ramp Options:
Choose between a full-width rear ramp or slide‑under twin ramps. -
Optimised Loading Surface:
Tyre grips and lashing points stay accessible even with the steel sides fitted.
- Maximum Legal Capacity – 3500kg gross weight—the highest legally permitted without an operator’s licence.
- Professional Grade Construction – Fully galvanised chassis with Avonride independent rubber suspension.
- Versatile Platform Design – Flat platform layout supports a wide range of loading configurations.
- 4x4 Compatible – Specifically designed for reliable use behind most 4x4 vehicles.
Bateson PT56 16' Triple Axel Hydraulic Trailer
Trailer Specifications
Trailer Weight & Capacity (KG)
| Gross Weight | 3500 |
| Unladen Weight | 850 |
| Capacity | 2650 |
External Dimensions (MM)
| Length | 6440 |
| Width | 2100 |
Internal Dimensions (MM)
| Length | 5050 |
| Width | 2100 |
Additional Information
| Tyre Size | 195-50 x 10 |
| Tow Ball Height | 430mm |
Important: Carrying capacity may vary depending on optional equipment. Always ensure the trailer and load remain within legal towing limits for your vehicle.
Bateson PT56 Trailer Add-Ons
All prices exclude VAT at 20%. Carrying capacity may vary with optional specification.
| Add-On Option | Price (exc VAT) |
| 30cm (12") Triple Steel Sides | £675.00 |
| 195 x 10 Alloy Wheels x 6 | £300.00 |
| 2000kg Winch & Bracket PT Models | £425.00 |
| 4000kg Electric Winch w/ Battery & Bracket | £800.00 |
| Adjustable f'ront Wheel Chock | £85.00 |
| Extra Body Width to 2.3m | £400.00 |
| Headboard | £140.00 |
| Over wheel ratchet straps | £100.00 |
| Ramp extension blocks for low vehicles | £240.00 |
| Data Tag Security | £100.00 |
| Side Loading Ramps & Carrier | £165.00 |
| Underbody Strap Box | £140.00 |
| Wheel Clamp (Hydraulic Trailers) | £175.00 |
| Winch Bracket only | £100.00 |
| Deliver outside of Geographical Area | £130.00 |
| Service outside of 24 months or Geographical Area | £90.00 |
Bateson PT56 - 16' x 7' Triple Axle Multi‑Purpose Hydraulic Tilt Trailer
Do I need an operator’s licence to tow this trailer?
No. The 3500kg gross weight is the highest permitted without an operator’s licence or HGV regulations.
Is the Model PT56 suitable for use behind a 4x4?
Yes. The trailer is specifically designed to work safely and efficiently behind most 4x4 vehicles.
Does this trailer come fully galvanised?
Yes. The chassis and major components are fully galvanised for long-term corrosion protection.
Can I add ramps, winches or side extensions?
Yes. A wide range of professional add-ons including ramps, winches, mesh sides, alloy sides and floor upgrades are available.
What braking system does it use?
The trailer is fitted with auto-reversing overrun brakes for safe and effective stopping power.
Is independent suspension included?
Yes. It features Avonride fully independent rubber suspension axles for smooth towing under load.
What is the internal loading space?
The internal deck measures 5050mm x 2100mm with a flat platform height (0mm sides).
