Bateson
8'2"x 4'1" Bateson B84 Single Axle Unbraked Trailer
8'2"x 4'1" Bateson B84 Single Axle Unbraked Trailer
Plus VAT
In stock
Couldn't load pickup availability
8'2" x 4'1" Bateson B84 Single Axle Unbraked Trailer: £1,450.00 (ex. VAT) – £1,740.00 (inc. VAT)

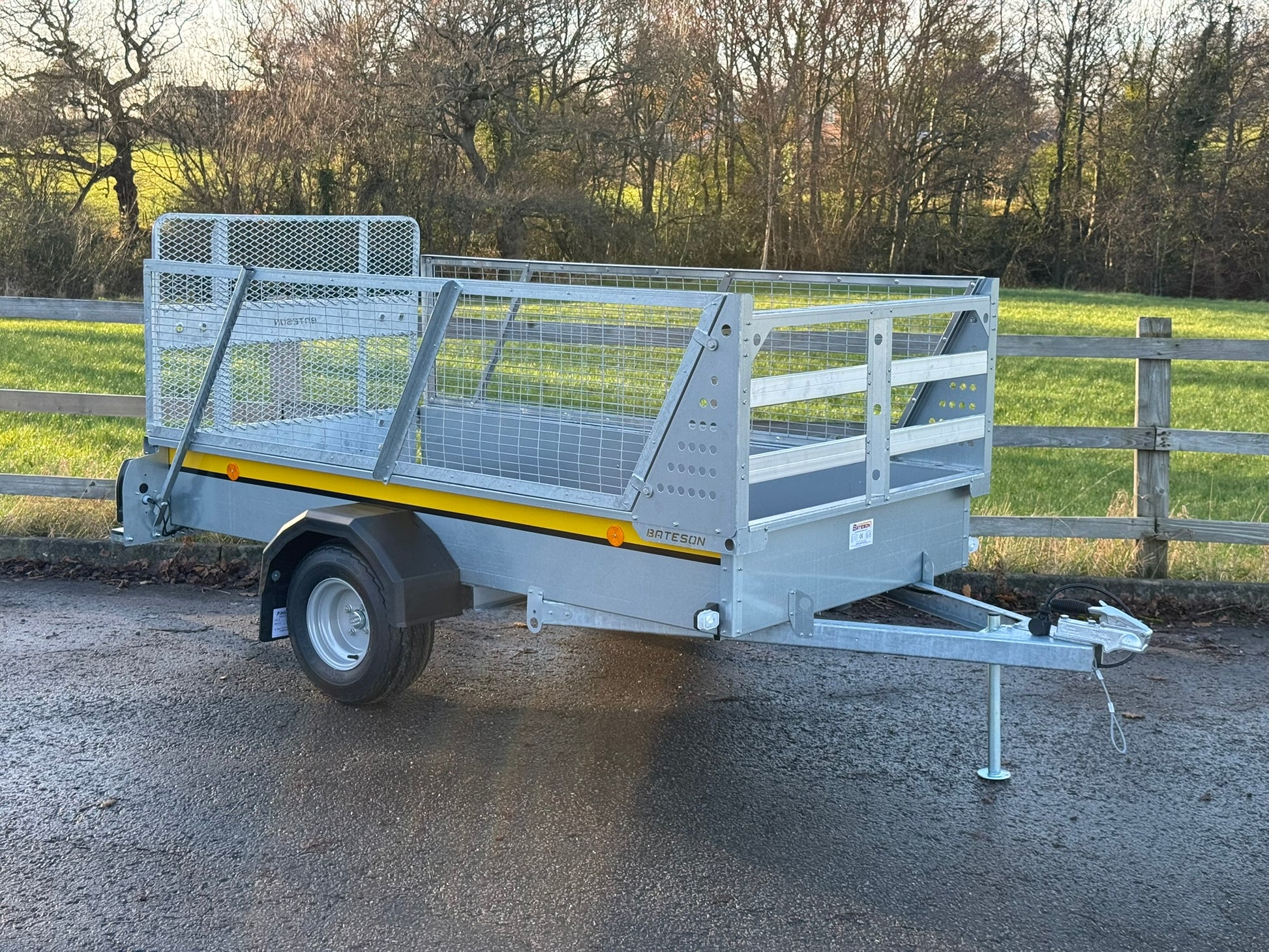

B84 shown with optional mesh sides and ladder rack.
Optional extras can be found at: B84 add-on's
The Bateson B84 is the heavy-duty choice for ground maintenance professionals and anyone needing a truly versatile trailer. With its spacious 8'2" x 4'1" bed and a robust 574kg payload capacity, the B84 is perfectly suited for transporting large quad bikes, grass-cutting machines, landscaping equipment, or standard 8' x 4' sheet materials with ease. Built to handle demanding tasks day in, day out.
Key Features & Benefits
- Generous 8'2" x 4'1" internal bed – Accommodates quad bikes, ride-on mowers, landscaping machinery, and full 8' x 4' sheet materials
- 750kg gross weight / 574kg payload capacity – Substantial carrying capacity for professional use
- 18mm phenol-coated plywood floor – Superior strength and long-term wear resistance underfoot
- Heavy-duty unbraked construction – Designed for versatile, demanding applications
- Optional add-ons – Front-mounted ladder rack and mesh sides available to extend functionality
Safety & Security
- Heavy-duty build ensures a stable, reliable platform for heavy or awkward loads
- Durable phenol-coated floor provides grip and resists wear, reducing load shift risk
- Standard rear ramp door for safe, controlled loading and unloading
- Optional mesh extension sides help contain loads securely during transit
Practical Features
- Rear ramp door as standard for straightforward drive-on access

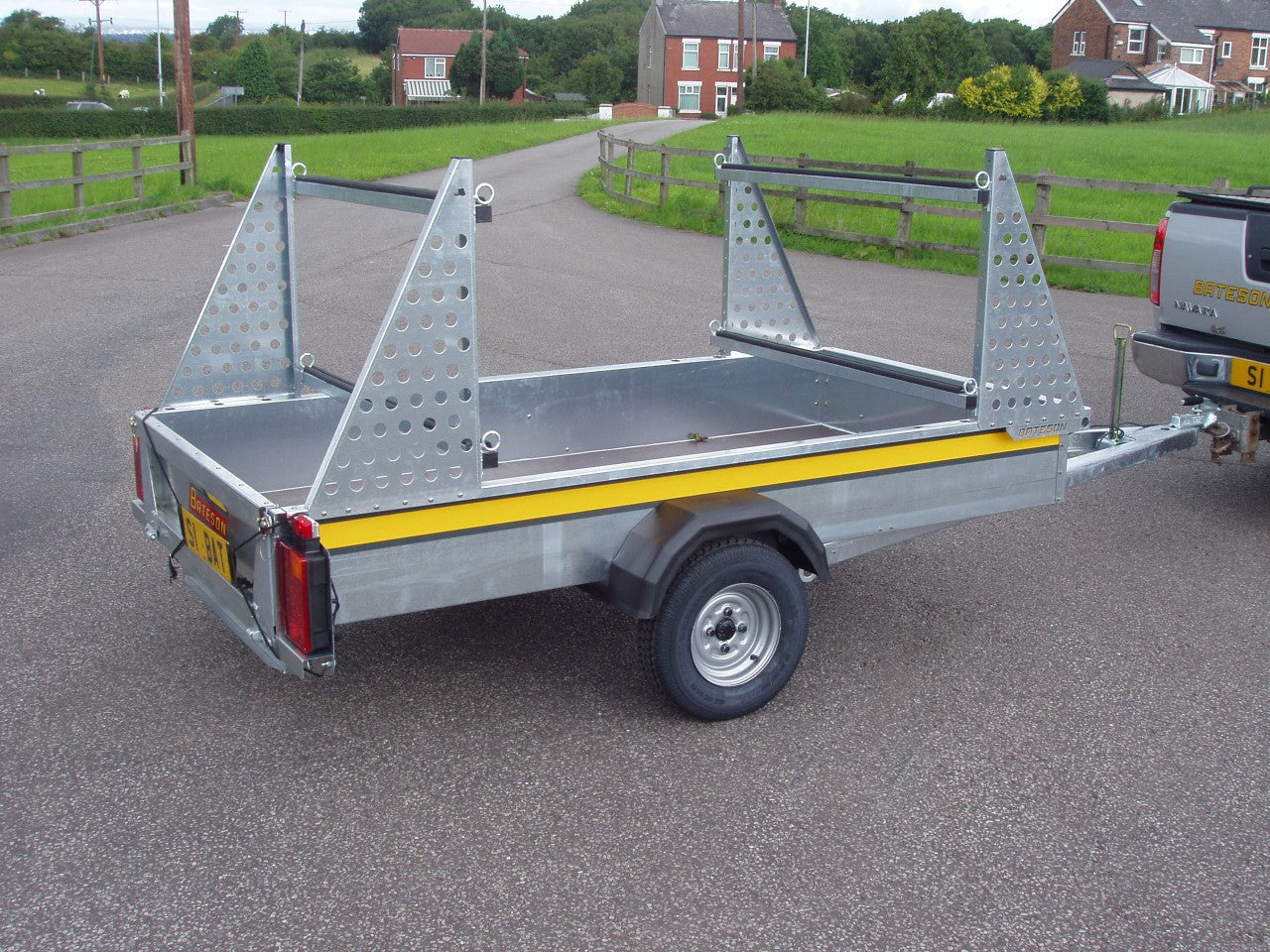

- Optional front-mounted ladder rack for carrying long materials
- Optional mesh extension sides for added load containment
- Upgrade available to 20.5 x 8-10 wheels & tyres for enhanced performance
- Ideal for ground maintenance, landscaping, agriculture, and general haulage
Specifications
Trailer Weight & Capacity (KG)
| Gross Weight | 750 |
| Unladen Weight | 176 |
| Capacity | 574 |
Overall Dimensions (MM)
| Length | 3440 |
| Width | 1640 |
Internal Dimensions (MM)
| Length | 2500 |
| Width | 1250 |
| Height | 290 |
Additional Information
| Tyre Size | 145 x 10 |
| Tow Ball Height | 450mm |

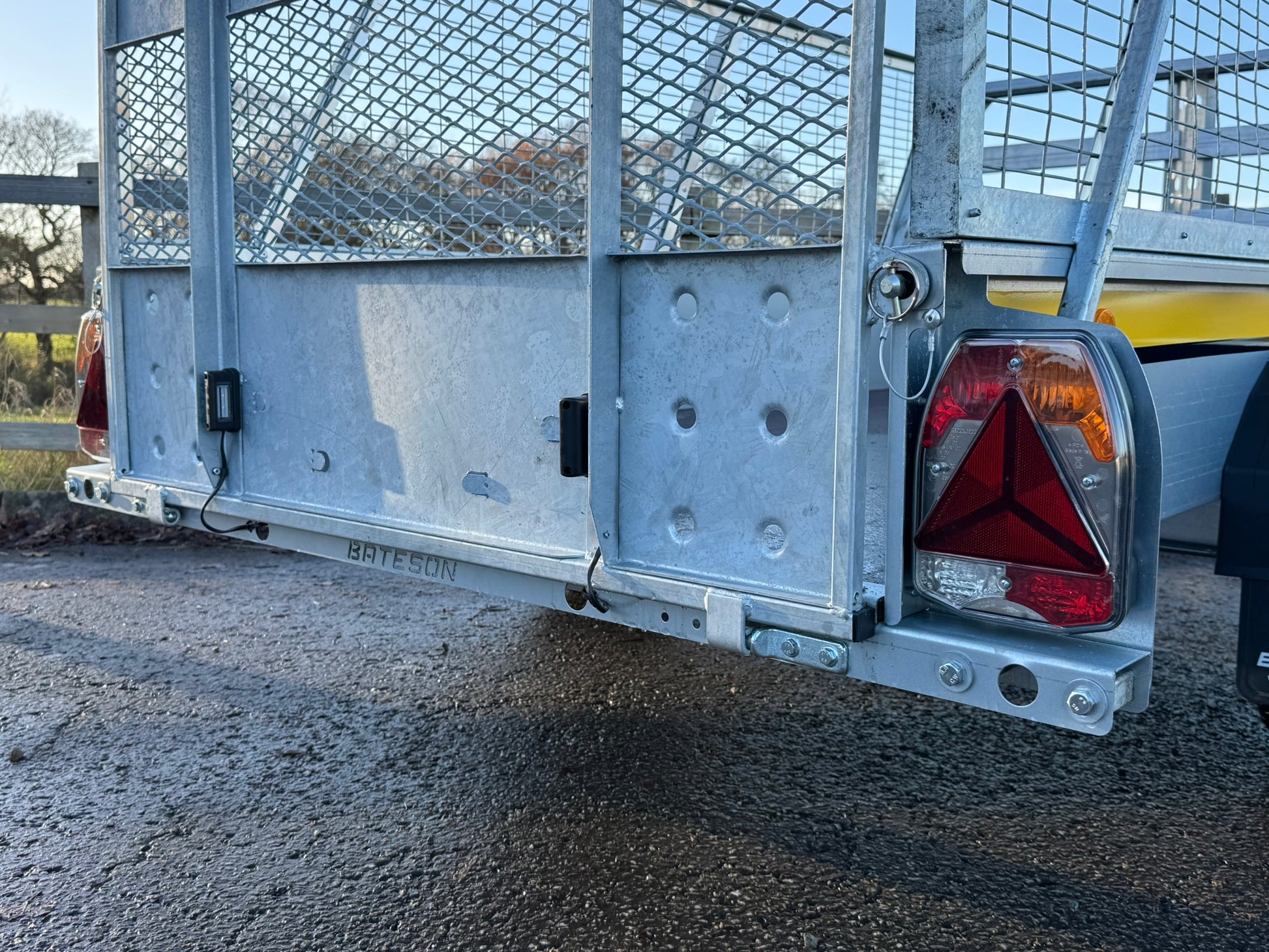

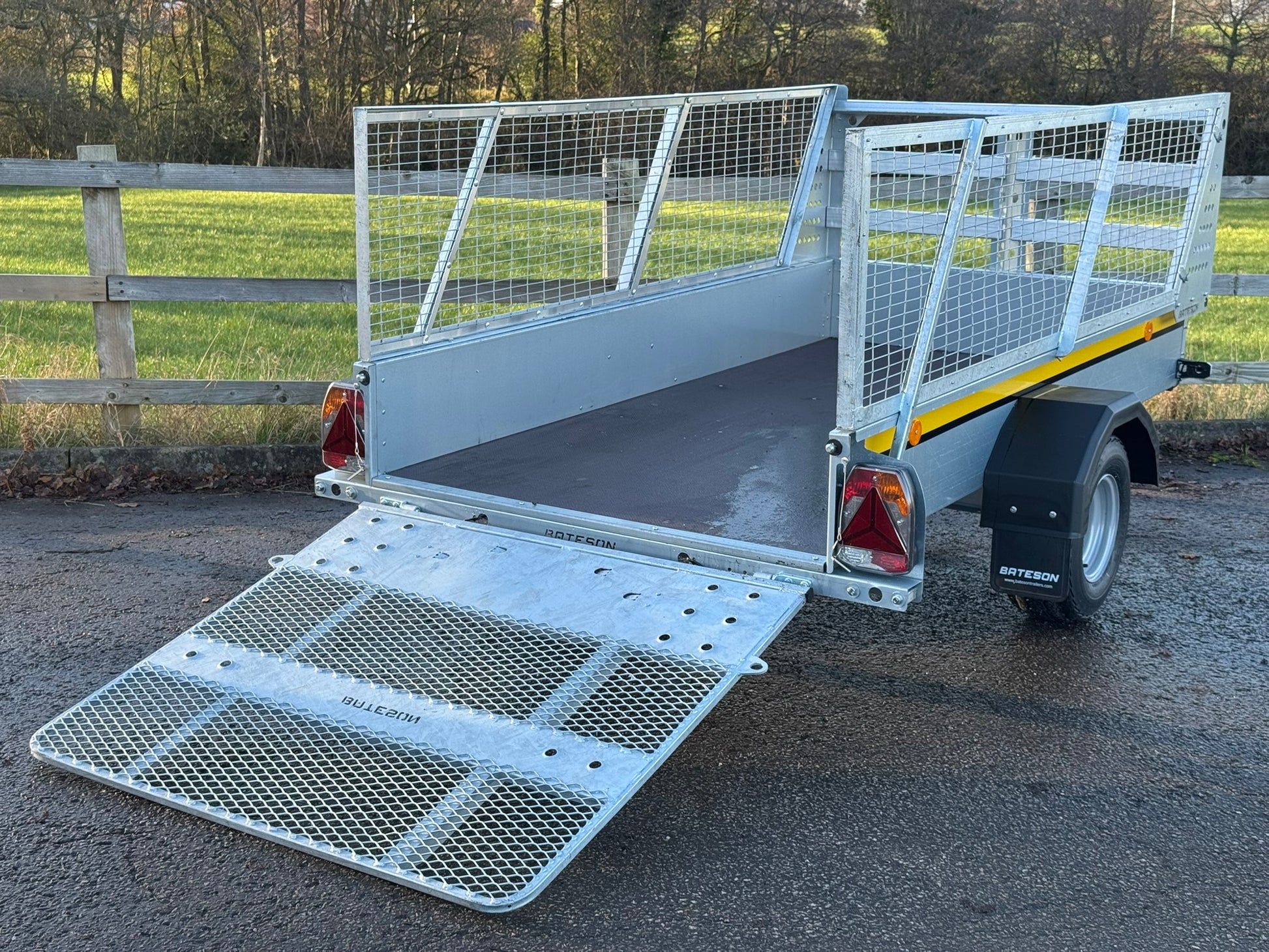

Trailer shown with standard rear ramp door, optional mesh extension sides and front, and 20.5 x 8-10 wheels & tyres.
Product Add-Ons found at B84 add-on's
All prices exclude VAT at 20%.
| 2 Metre Ratchet Strap | £8.00 |
| 4 x Recessed Deck Rings | £100.00 |
| Data Tag Security | £110.00 |
| Delivery Charge outside our geographical area | call for price |
| Front Jockey Wheel | £40.00 |
| Front Ladder Rack | £75.00 |
| Heavy Duty Wheel Clamp | £175.00 |
| Hitch Head Lock | £175.00 |
| Mesh Extension Sides and Front B84 | £325.00 |
| Rear Stands and Clamps | £50.00 |
| Spare Wheel & Carrier (145 x 10) | £66.00 |
| Spare Wheel & Carrier (20.5 x 8-10) | £80.00 |
| Wheel Chock (pair) | £20.00 |
| Wide Wheels & Tyres 20.5 x 8-10 | £80.00 |
Model B84 Unbraked Trailer – Frequently Asked Questions
What is the gross weight of the Model B84 trailer?
The Model B84 has a gross weight of 750kg, with a payload capacity of approximately 574kg.
Does the Model B84 require overrun brakes?
No. The trailer is unbraked and, at 750kg gross weight, does not require overrun brakes for most towing vehicles.
What vehicles can tow the Model B84?
Most cars, quad bikes and small tractors that are rated to tow 750kg unbraked can tow the Model B84. Always check your vehicle’s handbook and legal limits.
Is the trailer suitable for road use?
Yes. It is supplied with a full rear lighting system (rear lights, stop/tail and indicators), mudguards and mud flaps to meet EU type approval requirements.
Are the sides removable?
Yes. The trailer is fitted with 30cm high hinged sides and tailboard, plus a lift-out front panel for flexible loading and unloading.
How is the load secured on the Model B84?
The trailer includes 8 rope hooks, allowing you to secure loads with ropes, straps or netting in multiple positions.
What type of suspension does the trailer use?
It uses full-width axles with independent rubber suspension for smoother towing and improved stability.
Does the trailer come with a spare wheel?
A spare wheel and carrier are available as an optional extra and can be specified from the Product Add-Ons list.
Can I add mesh sides or a ramp?
Yes. Options include mesh extension front and opening sides. See the Product Add-Ons section for details and pricing
View Mesh Sides
Call today: 0791 777 33 27 to discuss B84 Bateson Trailer availability and add-on options.
