Bateson 0844 8' x 4' General Purpose Braked Twin Axle Trailer
Bateson 0844 8' x 4' General Purpose Braked Twin Axle Trailer
Plus VAT
In stock
Couldn't load pickup availability
Bateson 0844 8' x 4' General Purpose Braked Twin Axle Trailer £2,200.00 exc. VAT - £2,640.00 inc. VAT

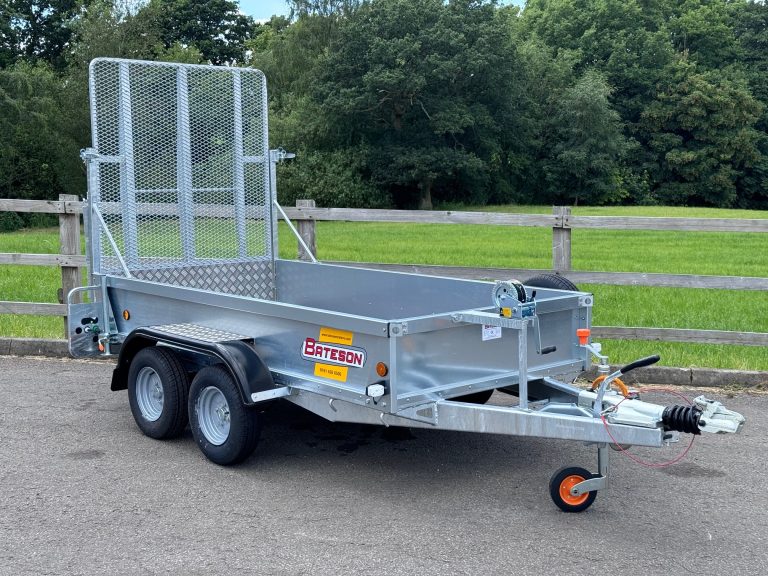

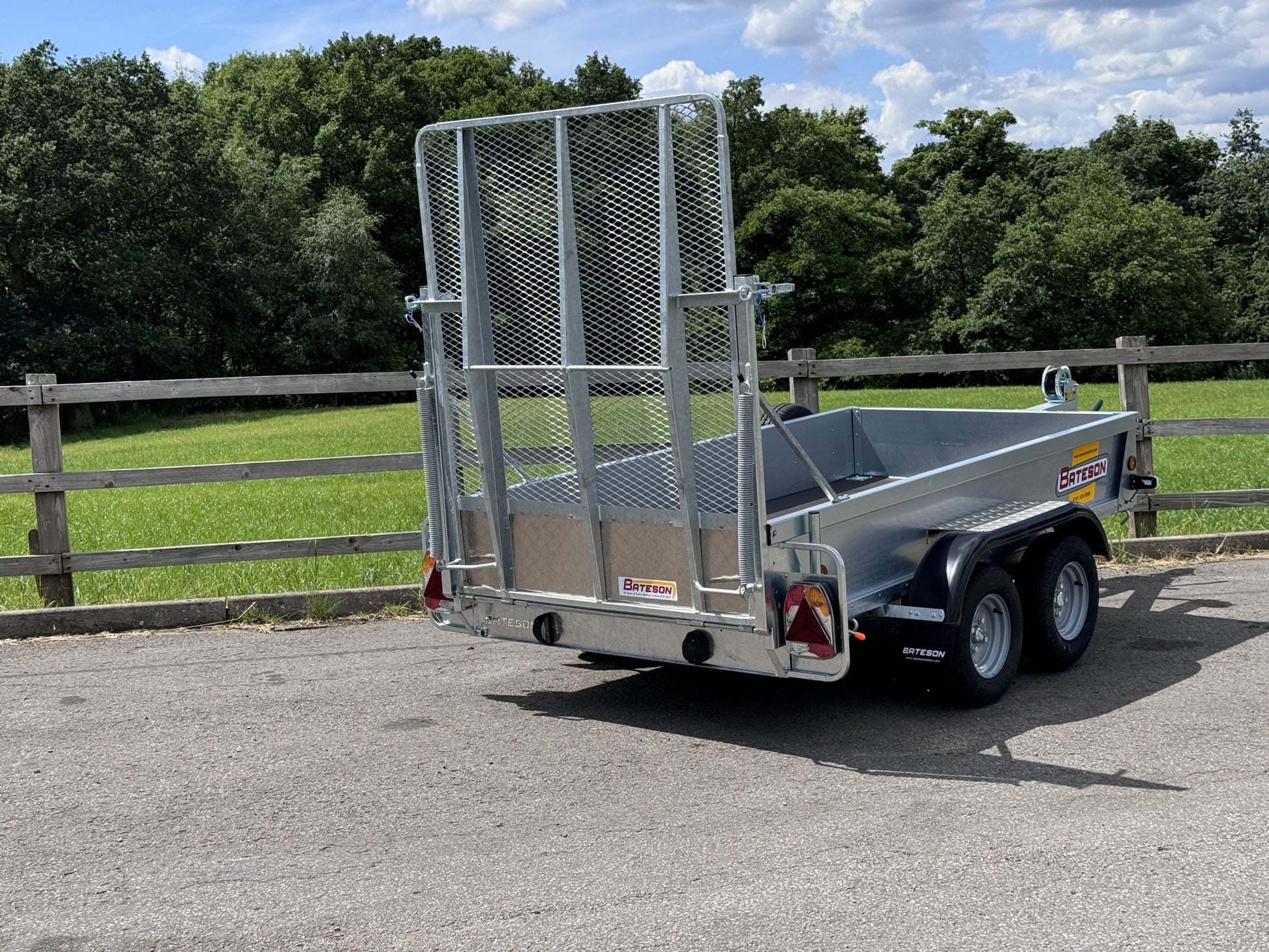

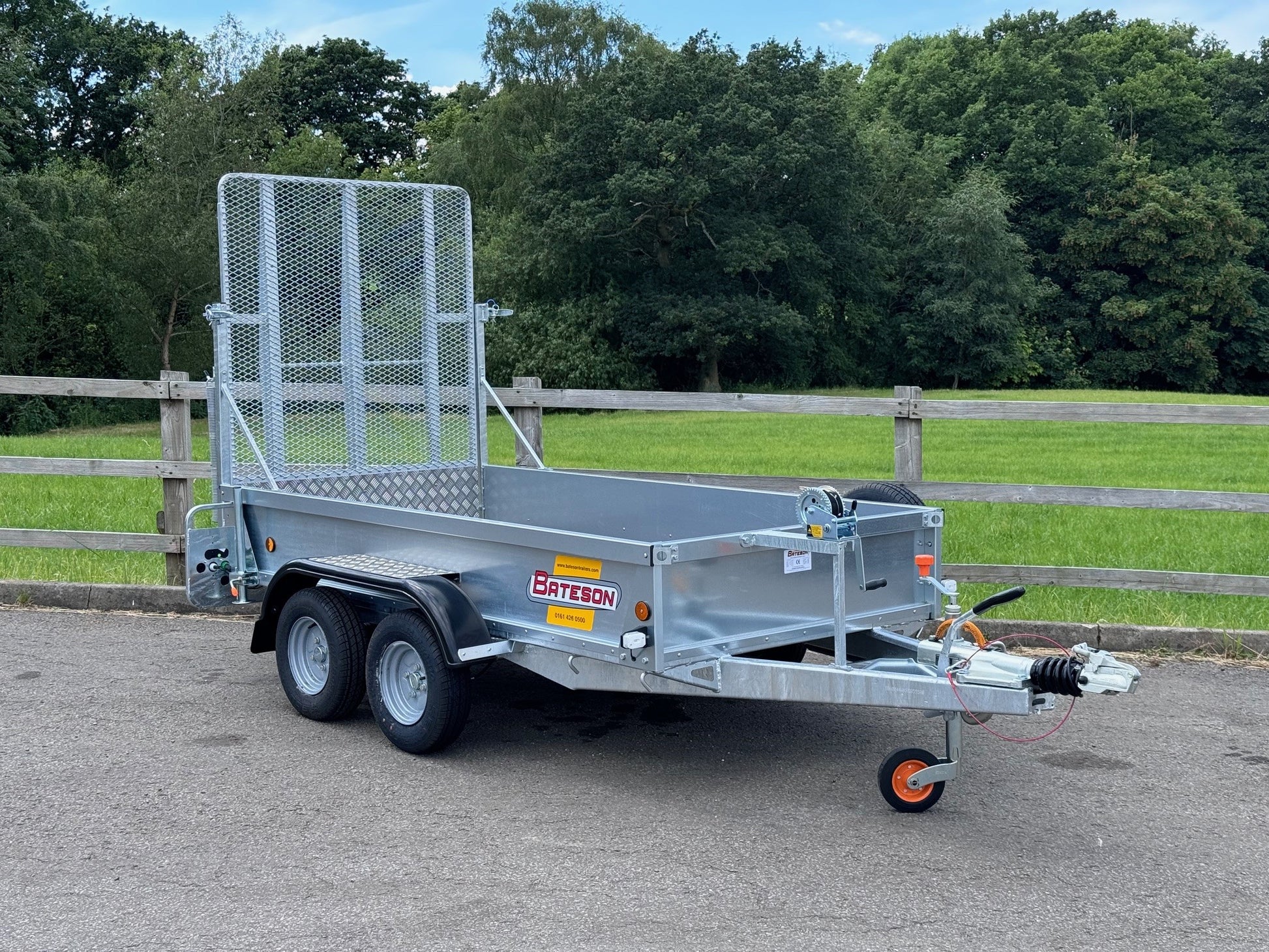

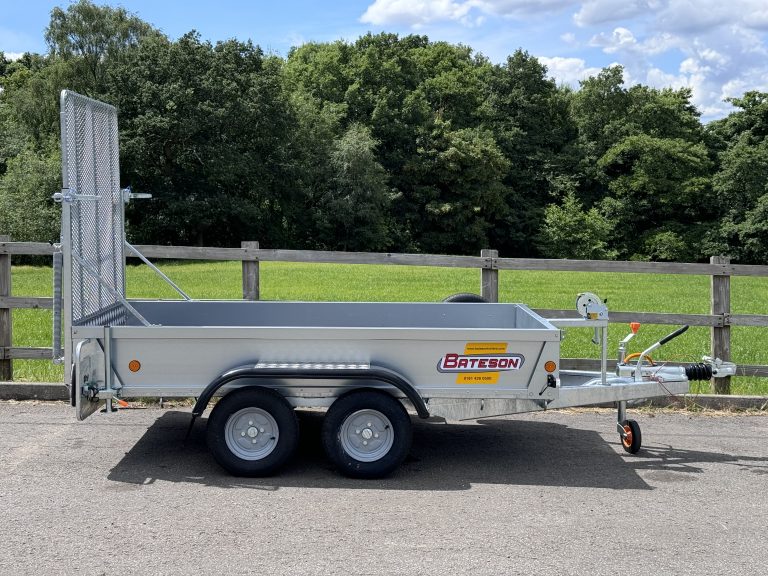

**Model shown with optional 5' high ramp door allowing a 15 degree approach angle**
Model 0844 is the smallest twin axle trailer with overrun brakes and 10" wheels. It has a one ton carrying capacity and will accept 8' x 4' material. It is ideal for use behind cars and light vans with a suitable towing capacity.
In common with all the general purpose trailers in this range, Model 0844 has a hot dipped galvanized steel chassis with 2mm thick pre-galvanized steel sides 300mm deep and an 18mm phenol coated non-slip plywood floor. Standard equipment includes full lights, jockey wheel, spare wheel and a hitch lock. A ramp tailboard, winch, ladder rack or mesh extension sides are all available as options.
Key Features & Benefits
- 1-ton carrying capacity — handles full sheets of 8' x 4' material with ease
- Twin axle stability — improved load distribution and road handling over single axle models
- Hot dipped galvanized steel chassis — long-lasting corrosion resistance
- 2mm pre-galvanized steel sides, 300mm deep
- 18mm phenol coated non-slip plywood floor
- 10" wheels with overrun brakes
- Suitable for use behind cars and light vans with appropriate towing capacity
Safety & Security
- Overrun brakes — automatic braking on deceleration
- Full road lighting kit included as standard
- Integral jockey wheel for easy manoeuvring
- Hitch lock included as standard
- Spare wheel included as standard
Specifications
Trailer Weight & Capacity (KG)
| Gross Weight | 1300 |
| Unladen Weight | 320 |
| Capacity | 980 |
Overall Dimensions (MM)
| Length | 3850 |
| Width | 1760 |
Internal Dimensions (MM)
| Length | 2500 |
| Width | 1250 |
| Height | 300 |
Additional Information
| Tyre Size | 145 x 10 |
| Tow Ball Height | 400mm |
Product Add-Ons
| 4 x Recessed Deck Rings | £100.00 |
| 4' Wide Spring Assisted Ramptail | £350.00 |
| 8'x4' Alloy Treadplate Floor | £240.00 |
| 8'x4' Mesh Extension Sides & Front | £405.00 |
| 900kg Hand Winch & Bracket | £150.00 |
| Data Tag Security | £110.00 |
| Delivery Charge outside our geographical area | Call for price |
| GP Ladder Rack | £65.00 |
| Heavy Duty Wheel Clamp | £175.00 |
| Hitch Head Lock | £175.00 |
| LED Light Upgrade | £175.00 |
| Rear Loading Stands | £40.00 |
Bateson 0844 8' x 4' General Purpose Trailer – Frequently Asked Questions
Do I need an operator’s licence to tow this trailer?
No. The 1300kg gross weight is well within the limits permitted without an operator’s licence or HGV regulations.
Is the Model 0844 suitable for use behind a large car or medium van?
Yes. The trailer is specifically designed to work safely and efficiently behind larger cars and medium vans with a suitable towing capacity.
What braking system does it use?
The trailer is fitted with overrun brakes with automatic braking on deceleration, operated via a cast steel hydraulic damped coupling.
Why choose the twin axle 0844 over the single axle 0842?
The twin axle configuration provides improved load distribution, greater stability at speed, and better handling when fully loaded — ideal if you regularly carry heavier or bulkier loads.
Can I add ramps, winches or side extensions?
Yes. A range of add-ons is available including a spring-assisted ramptail, 900kg hand winch, mesh extension sides, alloy treadplate floor, and more. See the add-ons table above.
Does the trailer come with a spare wheel?
Yes. A spare wheel and carrier are included as standard equipment.
Call today: 0791 777 33 27 to discuss available add-ons and lead times.
