Bateson
Bateson 0852 8' x 5' General Purpose Braked Single Axle Trailer
Bateson 0852 8' x 5' General Purpose Braked Single Axle Trailer
Plus VAT
In stock
Couldn't load pickup availability
Bateson 0852 8' x 5' General Purpose Braked Single Axle Trailer £2,150.00 exc. VAT – £2,580.00 inc. VAT

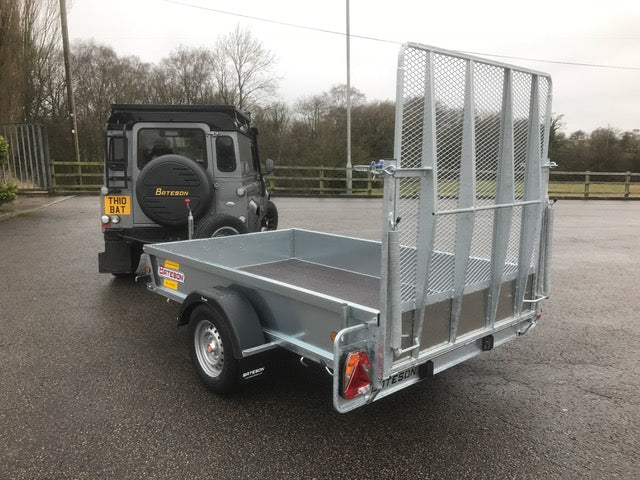

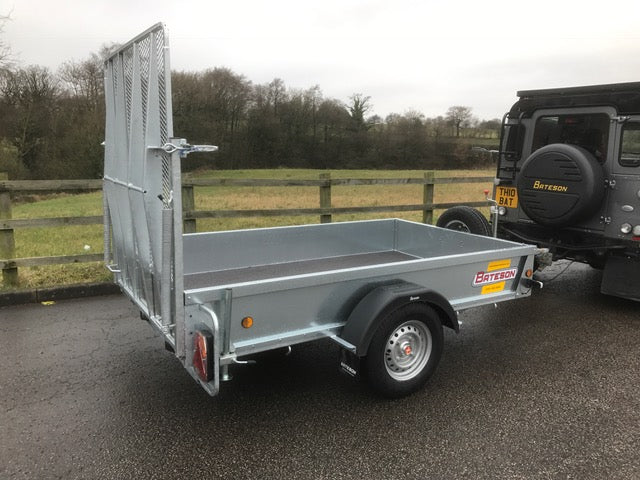

**0852 shown with optional ramp door**
Model 0852 is our largest single axle trailer, with a 1 ton capacity and often supplied with a ramp tailboard for transporting wider grass cutting machinery.
In common with all the general purpose trailers in this range, the 0852 has a hot dipped galvanised steel chassis with 2mm thick pre-galvanised steel sides 300mm deep and an 18mm phenol coated non-slip plywood floor. The independent rubber suspension axle has auto reversing brakes, operated by cast steel hydraulic damped overrun coupling with a power assisted hand brake and integral jockey wheel. Full road lights are fitted, and a spare wheel and hitch lock are included as standard.
Key Features & Benefits
- 1-ton carrying capacity — our largest single axle general purpose trailer
- Wide 8' x 5' internal bed — ideal for wider grass cutting machinery and equipment
- Hot dipped galvanised steel chassis — long-lasting corrosion resistance
- 2mm pre-galvanised steel sides, 300mm deep
- 18mm phenol coated non-slip plywood floor
- Independent rubber suspension axle for smooth towing
- Often supplied with ramp tailboard for drive-on loading
Safety & Security
- Auto reversing overrun brakes — cast steel hydraulic damped coupling
- Power assisted handbrake
- Full road lighting kit included as standard
- Integral jockey wheel for easy manoeuvring
- Hitch lock included as standard
- Spare wheel included as standard
Specifications
Trailer Weight & Capacity (KG)
| Gross Weight | 1300 |
| Unladen Weight | 330 |
| Capacity | 970 |
Overall Dimensions (MM)
| Length | 3850 |
| Width | 2010 |
Internal Dimensions (MM)
| Length | 2500 |
| Width | 1500 |
| Height | 300 |
Additional Information
| Tyre Size | 165 x 13 |
| Tow Ball Height | 450mm |
Product Add-Ons
All prices exclude VAT at 20%. Carrying capacity may vary with optional specification.
| 4 x Recessed Deck Rings | £100.00 |
| 5' Wide Spring Assisted Ramp Tailboard | £375.00 |
| 8'x5' Mesh Extension Sides & Front | £430.00 |
| 900kg Hand Winch & Bracket | £150.00 |
| Alloy Treadplate Floor 8'x5' | £250.00 |
| Data Tag Security | £110.00 |
| Delivery Charge in England, Wales and Southern Scotland | £130.00 |
| GP Ladder Rack | £65.00 |
| Heavy Duty Wheel Clamp | £175.00 |
| Hitch Head Lock | £175.00 |
| LED Light Upgrade | £175.00 |
| Rear Loading Stands | £40.00 |
Bateson 0852 8' x 5' General Purpose Trailer – Frequently Asked Questions
Do I need an operator’s licence to tow this trailer?
No. The 1300kg gross weight is well within the limits permitted without an operator’s licence or HGV regulations.
Is the Model 0852 suitable for use behind a large car or medium van?
Yes, provided the towing vehicle has a sufficient rated towing capacity. Always check your vehicle’s handbook before use.
What makes the 0852 different from the 0842?
The 0852 has a wider 5' internal bed (vs 4' on the 0842), making it our largest single axle general purpose trailer and particularly well suited for transporting wider grass cutting machinery and equipment.
What braking system does it use?
The trailer is fitted with auto-reversing overrun brakes with a cast steel hydraulic damped coupling and power-assisted handbrake.
Can I add ramps, winches or side extensions?
Yes. A range of add-ons is available including a 5' wide spring assisted ramp tailboard, 900kg hand winch, 8'x5' mesh extension sides, alloy treadplate floor, and more. See the add-ons table above.
Does the trailer come with a spare wheel?
Yes. A spare wheel and carrier are included as standard equipment.
Is independent suspension included?
Yes. The 0852 features an independent rubber suspension axle for smooth towing under load.
