Bateson
Bateson 0854 8' x 5' General Purpose Braked Twin Axle Trailer
Bateson 0854 8' x 5' General Purpose Braked Twin Axle Trailer
Plus VAT
In stock
Couldn't load pickup availability
Bateson 0854 8' x 5' General Purpose Braked Twin Axle Trailer £2,600.00 exc. VAT – £3,120.00 inc. VAT

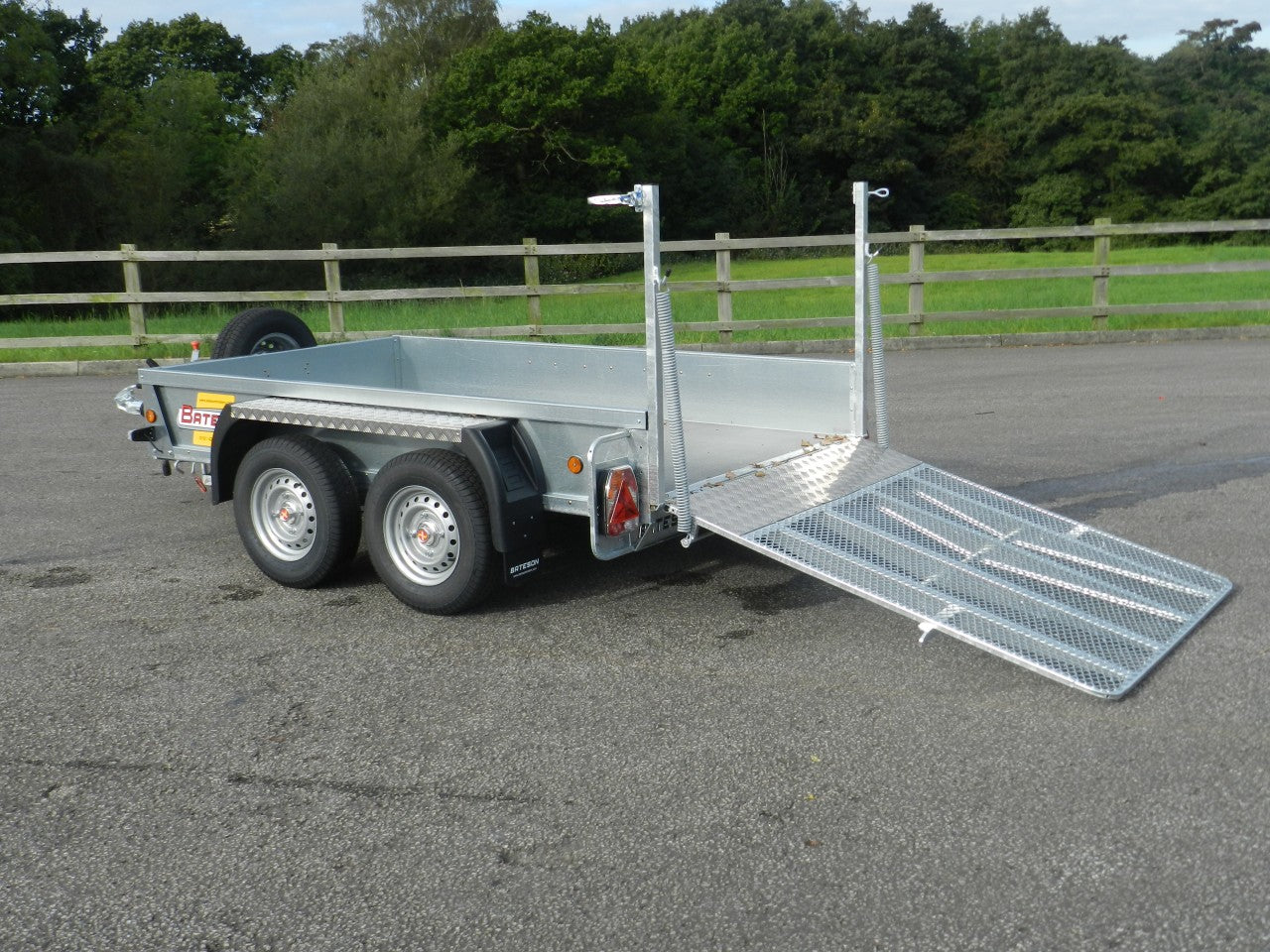

**0854 shown with optional ramp door**
The above photo shows the optional 1500mm high ramp door providing a 15 degree approach angle.
In common with all the general purpose trailers in this range, Model 0854 has a hot dipped galvanized steel chassis with 2mm thick pre-galvanized steel sides 300mm deep and an 18mm phenol coated non-slip plywood floor. The independent rubber suspension axles have auto reversing brakes, operated by cast steel hydraulic damped overrun coupling with a power assisted hand brake and integral jockey wheel. Full road lights are fitted and the specially designed damage resistant mudguards are fitted with aluminium tread plate ‘stand on’ tops.
Key Features & Benefits
- 1600kg carrying capacity — our highest capacity general purpose trailer
- Wide 8' x 5' internal bed — ideal for wider grass cutting machinery and heavy equipment
- Twin axle stability — improved load distribution and road handling under heavy loads
- Hot dipped galvanized steel chassis — long-lasting corrosion resistance
- 2mm pre-galvanized steel sides, 300mm deep
- 18mm phenol coated non-slip plywood floor
- Damage resistant mudguards with aluminium tread plate stand-on tops
Safety & Security
- Auto reversing overrun brakes — cast steel hydraulic damped coupling
- Power assisted handbrake
- Full road lighting kit included as standard
- Integral jockey wheel for easy manoeuvring
- Hitch lock included as standard
- Spare wheel included as standard
Specifications
Trailer Weight & Capacity (KG)
| Gross Weight | 2000 |
| Unladen Weight | 400 |
| Capacity | 1600 |
Overall Dimensions (MM)
| Length | 3850 |
| Width | 2010 |
Internal Dimensions (MM)
| Length | 2500 |
| Width | 1500 |
| Height | 300 |
Additional Information
| Tyre Size | 165 x 13 |
| Tow Ball Height | 450mm |
Product Add-Ons
All prices exclude VAT at 20%. Carrying capacity may vary with optional specification.
| 2000kg Hand Winch & Bracket | £500.00 |
| 4 x Recessed Deck Rings | £100.00 |
| 5' Wide Spring Assisted Ramp Tailboard | £375.00 |
| 8'x5' Mesh Extension Sides & Front | £430.00 |
| 900kg Hand Winch & Bracket | £150.00 |
| Alloy Treadplate Floor 8'x5' | £250.00 |
| Data Tag Security | £110.00 |
| Delivery Charge outside our geographical area | call for price |
| GP Ladder Rack | £65.00 |
| Heavy Duty Wheel Clamp | £175.00 |
| Hitch Head Lock | £175.00 |
| LED Light Upgrade | £175.00 |
| Rear Loading Stands | £40.00 |
Bateson 0854 8' x 5' General Purpose Trailer – Frequently Asked Questions
Do I need an operator’s licence to tow this trailer?
The 0854 has a 2000kg gross weight. You will need to check your vehicle’s towing capacity and ensure your licence covers the combined weight of vehicle and trailer. Please consult current DVLA guidance for your licence category.
What makes the 0854 different from the 0852?
The 0854 is the twin axle version of the 0852, sharing the same 8' x 5' bed but with a significantly higher 2000kg gross weight and 1600kg payload capacity — making it the right choice for heavier loads and more demanding applications.
What braking system does it use?
The trailer is fitted with auto-reversing overrun brakes with a cast steel hydraulic damped coupling and power-assisted handbrake, on both axles.
Can I add ramps, winches or side extensions?
Yes. A range of add-ons is available including a 5' wide spring assisted ramp tailboard, 900kg or 2000kg hand winch, 8'x5' mesh extension sides, alloy treadplate floor, and more. See the add-ons table above.
Does the trailer come with a spare wheel?
Yes. A spare wheel and carrier are included as standard equipment.
Is independent suspension included?
Yes. The 0854 features independent rubber suspension axles for smooth towing under heavy load.
Call today: 0791 777 33 27 to discuss available add-ons and lead times.
