Bateson 1054 10' x 5' General Purpose Braked Twin Axle Trailer
Bateson 1054 10' x 5' General Purpose Braked Twin Axle Trailer
Plus VAT
In stock
Couldn't load pickup availability
Bateson 1054 10' x 5' General Purpose Braked Twin Axle Trailer £2,800.00 exc. VAT – £3,360.00 inc. VAT

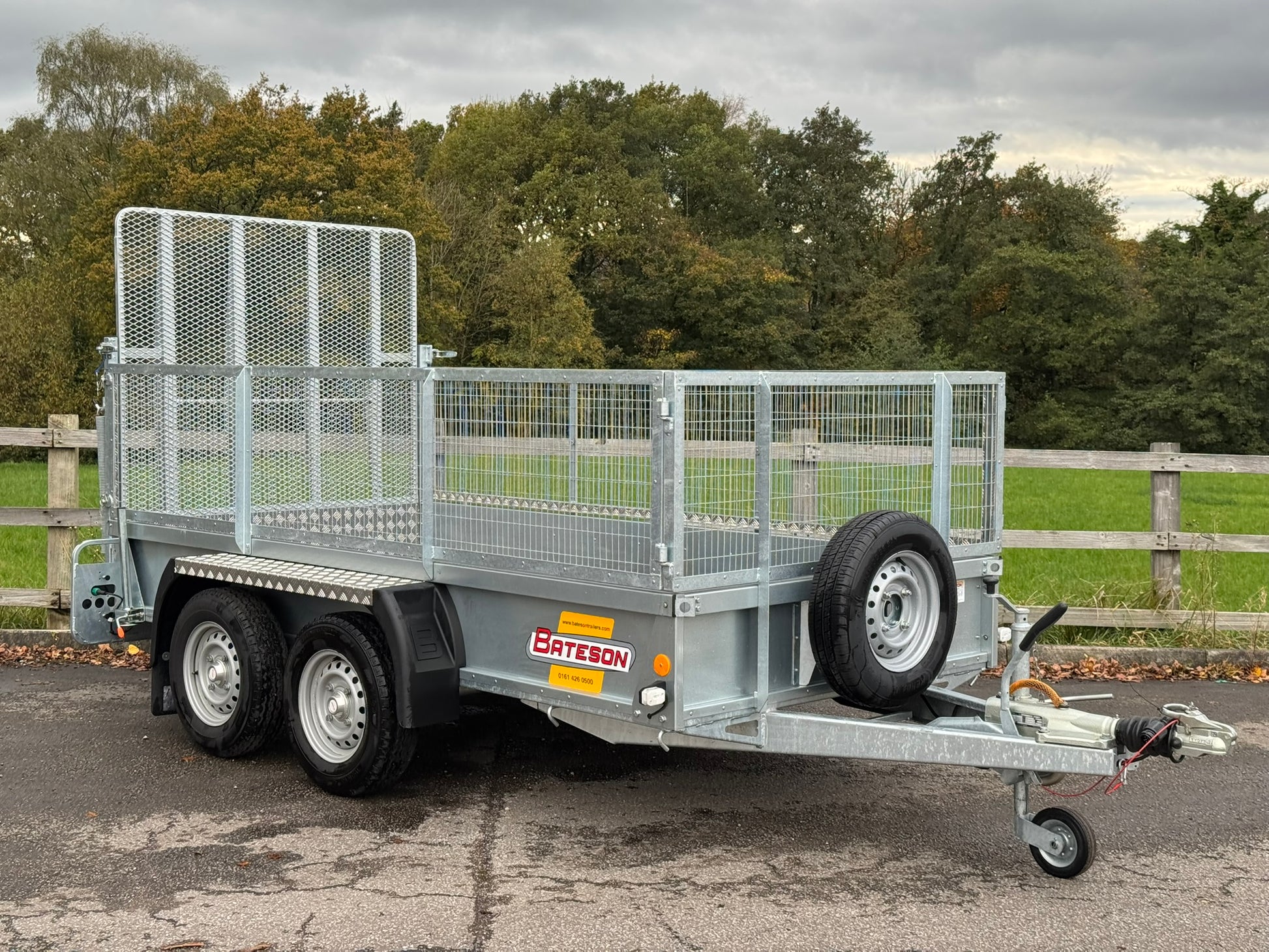

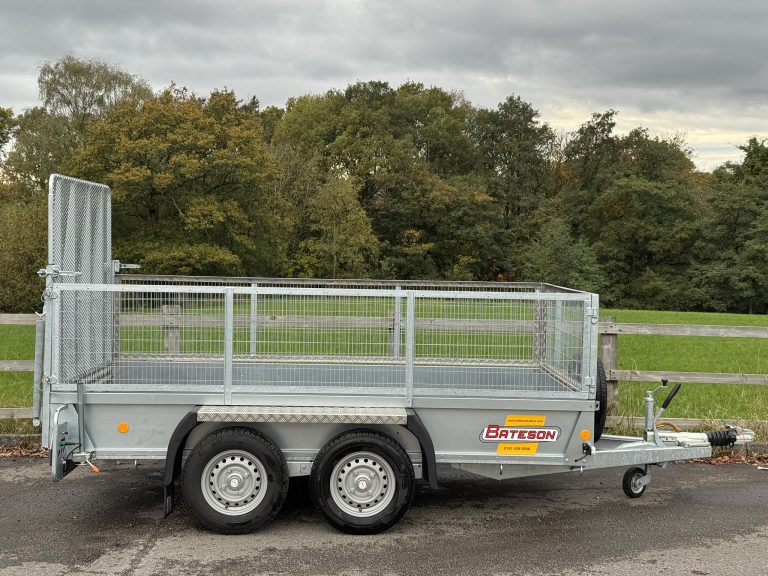

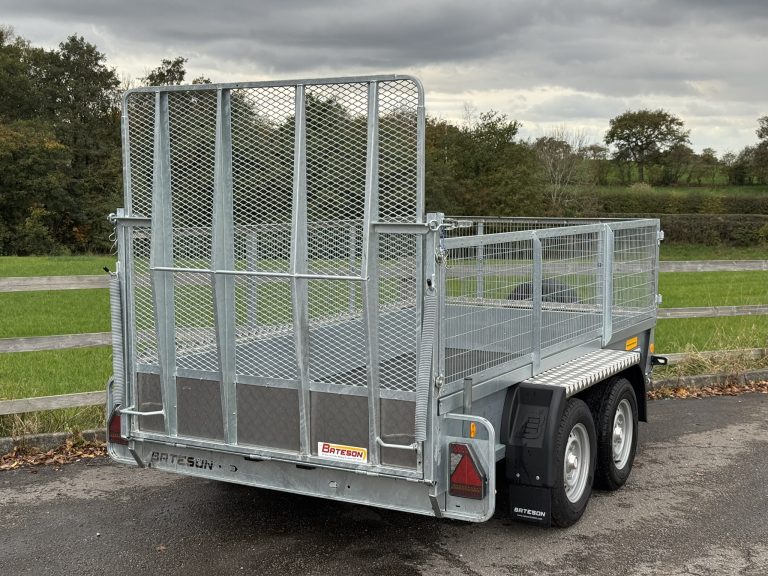

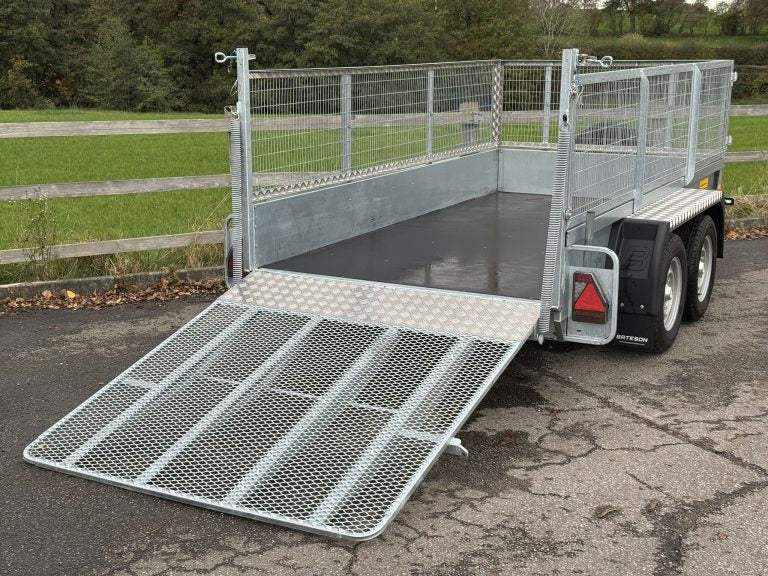

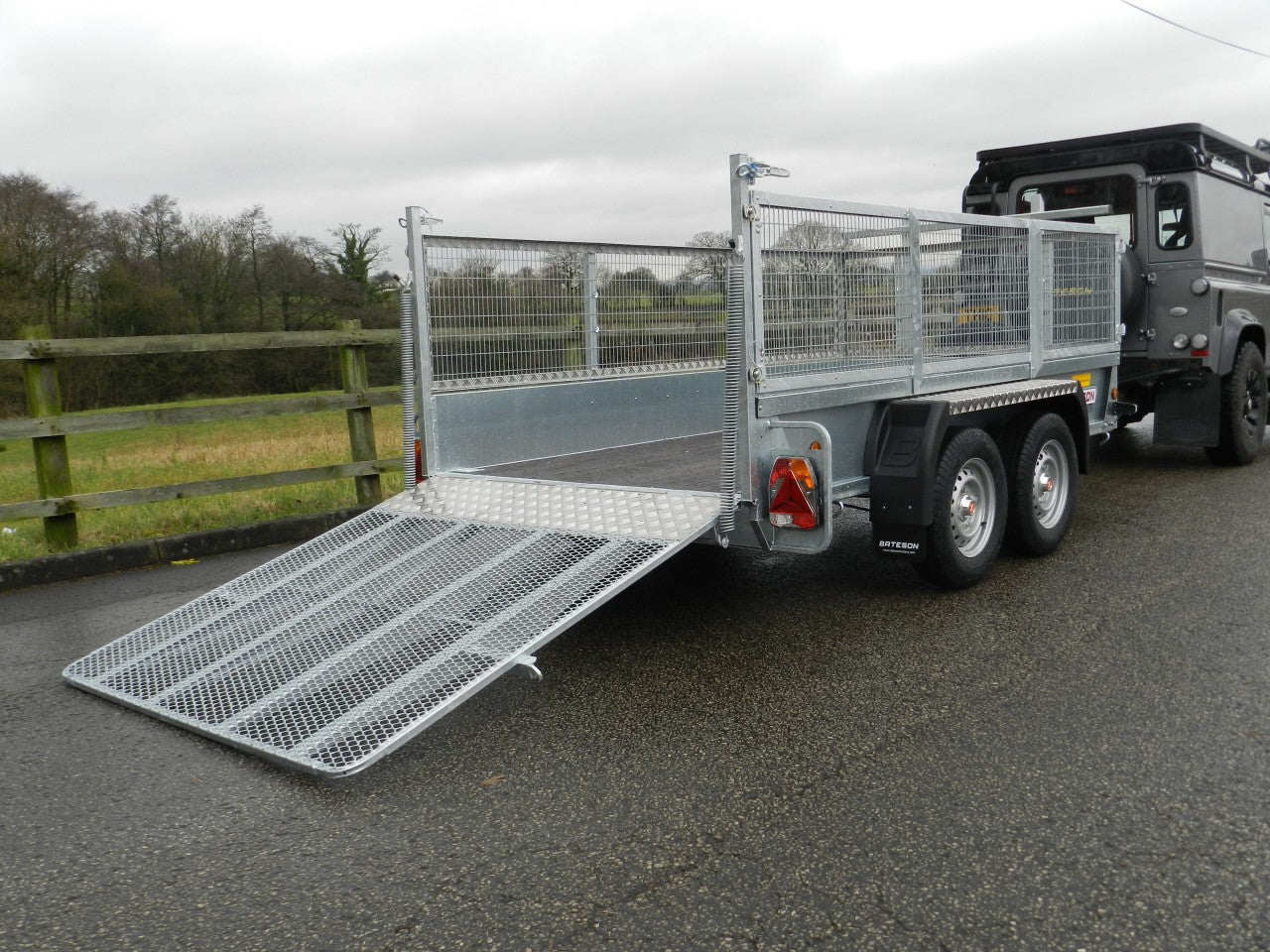

**1054 shown with optional spring assisted ramp door and mesh extension sides**
Model 1054 is possibly the most popular twin axle general purpose trailer in this range. With a 3 metre long, 1.5 metre wide body and a 1575kg capacity, it is suitable for use with most vehicles for a wide variety of applications.
The independent rubber suspension axles have auto reversing brakes, operated by cast steel hydraulic damped overrun coupling with a power assisted hand brake and integral jockey wheel. Specially designed damage resistant mudguards are fitted with aluminium tread plate. Standard equipment includes full road lights, spare wheel and a hitch lock. A range of options are available to suit your requirements.
Key Features & Benefits
- 1575kg carrying capacity — our most popular twin axle general purpose trailer
- Spacious 10' x 5' body — 3 metre long x 1.5 metre wide for a wide variety of applications
- Twin axle stability — improved load distribution and road handling under heavy loads
- Hot dipped galvanized steel chassis — long-lasting corrosion resistance
- 2mm pre-galvanized steel sides, 300mm deep
- 18mm phenol coated non-slip plywood floor
- Damage resistant mudguards with aluminium tread plate tops
- Suitable for most vehicles across a wide variety of applications
Safety & Security
- Auto reversing overrun brakes — cast steel hydraulic damped coupling
- Power assisted handbrake
- Full road lighting kit included as standard
- Integral jockey wheel for easy manoeuvring
- Hitch lock included as standard
- Spare wheel included as standard
Specifications
Trailer Weight & Capacity (KG)
| Gross Weight | 2000 |
| Unladen Weight | 425 |
| Capacity | 1575 |
Overall Dimensions (MM)
| Length | 4410 |
| Width | 2010 |
Internal Dimensions (MM)
| Length | 3060 |
| Width | 1500 |
| Height | 300 |
Additional Information
| Tyre Size | 165 x 13 |
| Tow Ball Height | 450mm |
Product Add-Ons
All prices exclude VAT at 20%. Carrying capacity may vary with optional specification.
| 10'x5' Alloy Treadplate Floor | £280.00 |
| 10'x5' Mesh Extension Sides & Front | £480.00 |
| 2000kg Hand Winch & Bracket | £500.00 |
| 4 x Recessed Deck Rings | £100.00 |
| 5' Wide Spring Assisted Ramp Tailboard | £375.00 |
| 900kg Hand Winch & Bracket | £150.00 |
| Data Tag Security | £110.00 |
| Delivery Charge outside our geographical area |
call for price |
| GP Ladder Rack | £65.00 |
| Heavy Duty Wheel Clamp | £175.00 |
| Hitch Head Lock | £175.00 |
| LED Light Upgrade | £175.00 |
| Rear Loading Stands | £40.00 |
Bateson 1054 10' x 5' General Purpose Trailer – Frequently Asked Questions
Do I need an operator’s licence to tow this trailer?
The 1054 has a 2000kg gross weight. You will need to check your vehicle’s towing capacity and ensure your licence covers the combined weight of vehicle and trailer. Please consult current DVLA guidance for your licence category.
Why is the 1054 the most popular twin axle in the range?
The 1054 strikes the ideal balance between capacity and versatility — a 3m x 1.5m body with 1575kg payload suits a wide range of vehicles and applications, from agricultural use to ground maintenance and general haulage.
What braking system does it use?
The trailer is fitted with auto-reversing overrun brakes with a cast steel hydraulic damped coupling and power-assisted handbrake, on both axles.
Can I add ramps, winches or side extensions?
Yes. A range of add-ons is available including a 5' wide spring assisted ramp tailboard, 900kg or 2000kg hand winch, 10'x5' mesh extension sides, alloy treadplate floor, and more. See the add-ons table above.
Does the trailer come with a spare wheel?
Yes. A spare wheel and carrier are included as standard equipment.
Is independent suspension included?
Yes. The 1054 features independent rubber suspension axles for smooth, stable towing under heavy load.
