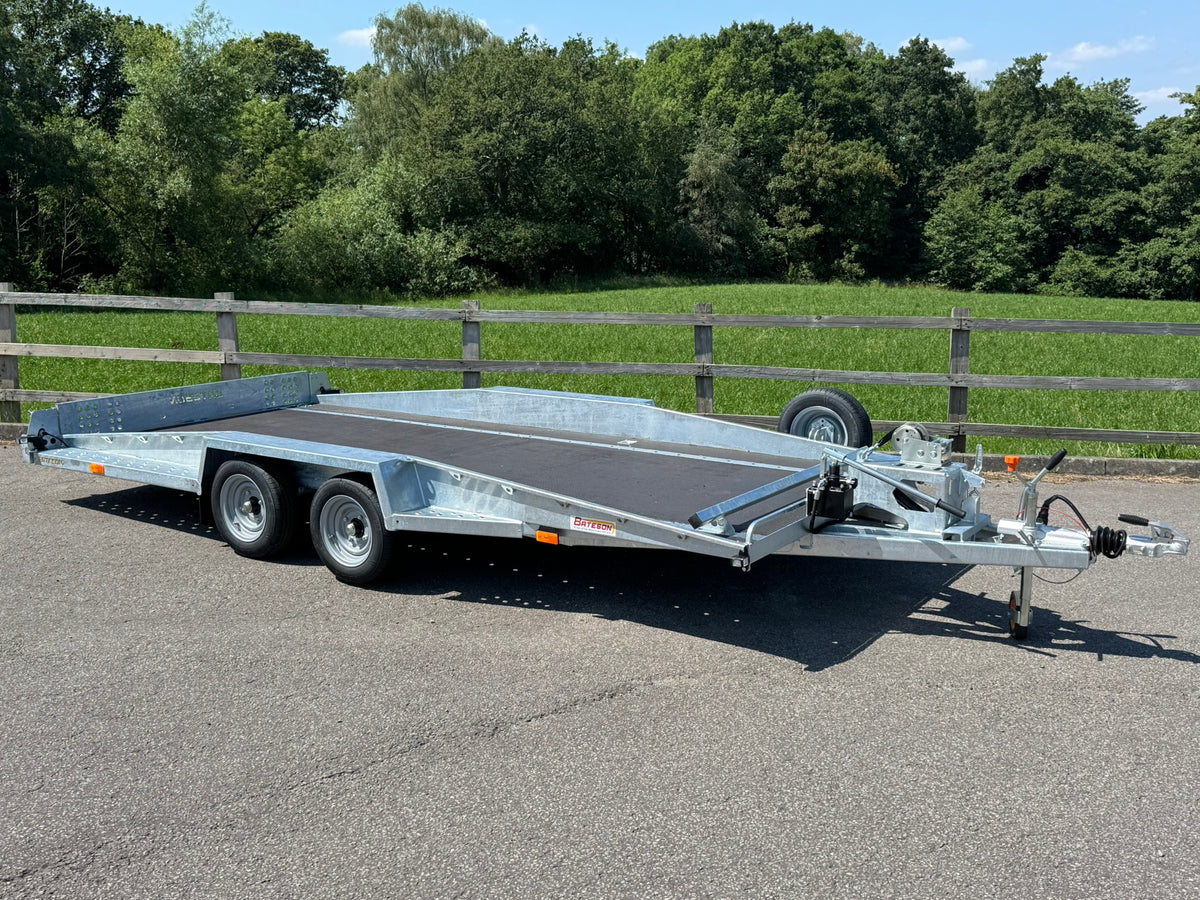

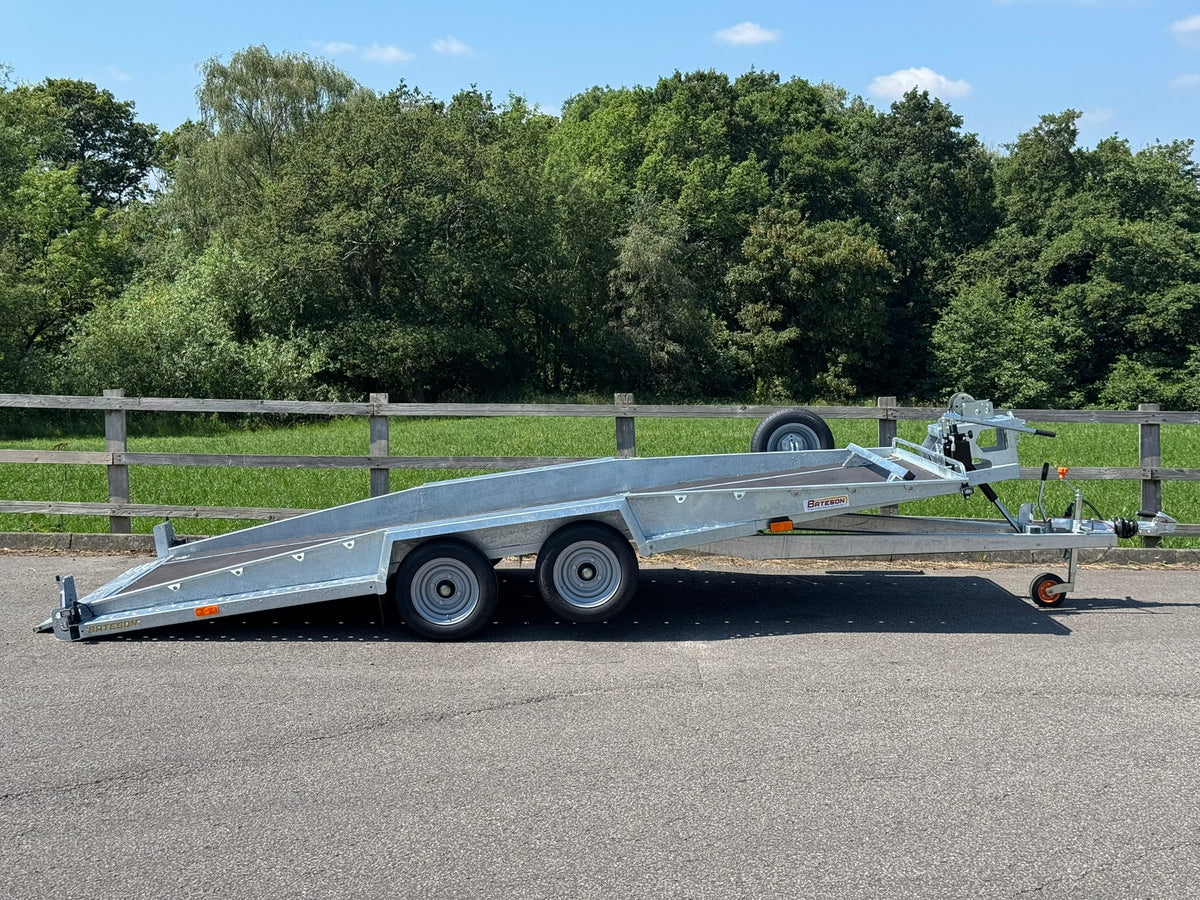

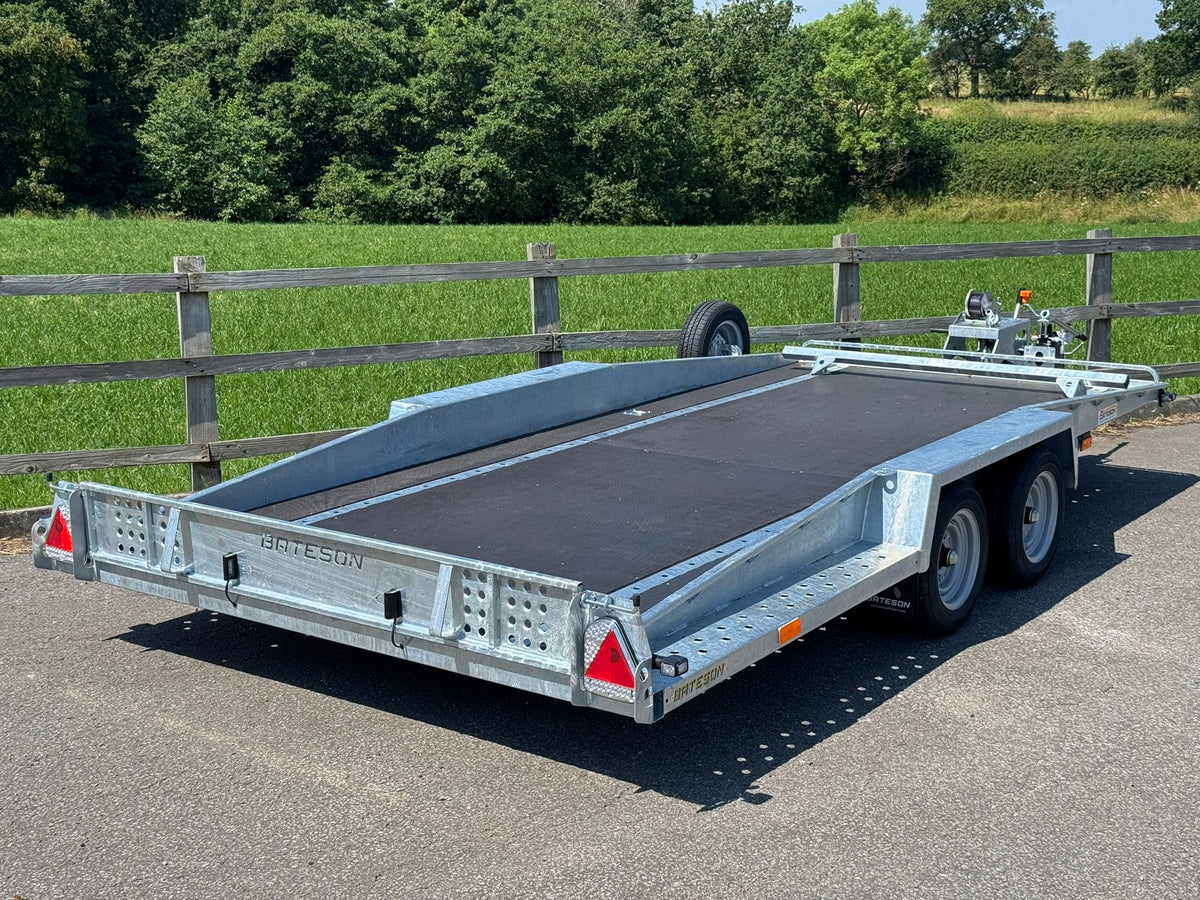

Bateson 22-15 Hydraulic Tilt Transporter Trailer

Overview

The Bateson 22-15 is the lightest trailer in the Bateson hydraulic tilt transporter range. With a 1,520 kg carrying capacity and a 15' x 6' 2" platform, it's perfectly suited for transporting medium-sized cars. The full floor tilts hydraulically to deliver a low approach angle, making loading straightforward even for vehicles with front spoilers or low ground clearance.

Key Features

• Full-width axles with independent rubber suspension for a smooth, stable tow
• Auto-reversing over-run brakes for confident, safe stopping
• Full road lighting package included as standard
• Front jockey wheel, spare wheel, and hand winch
• Front adjustable wheel chock and 12 load securing points
• 18mm phenol ply full floor panel — tough, durable, and splinter-resistant
• Hydraulic cylinder and hand pump tilt system with controlled lowering rate

Safety & Security

• Auto-reversing over-run brakes for reliable deceleration
• 12 load securing points distributed across the platform
• Front adjustable wheel chock to hold the loaded vehicle firmly in place
• Hot-dipped galvanised chassis for long-term corrosion resistance

Practical Elements

• Integral mudguards — strong enough to stand on, low enough to open car doors over
• Hot-dipped galvanised chassis throughout
• Front jockey wheel for easy manoeuvring when uncoupled
• Spare wheel supplied as standard

Specifications

Weight & Capacity

Overall Dimensions

Internal Dimensions*

*Internal Length and Width refer to platform dimensions.

Additional Information

Product Add-Ons
