Bateson 48HB 12'x5'8" Livestock Trailer (accommodates horses)
Bateson 48HB 12'x5'8" Livestock Trailer (accommodates horses)
Plus VAT
In stock
Couldn't load pickup availability
£6,625.00 (ex. VAT) = £7,950.00

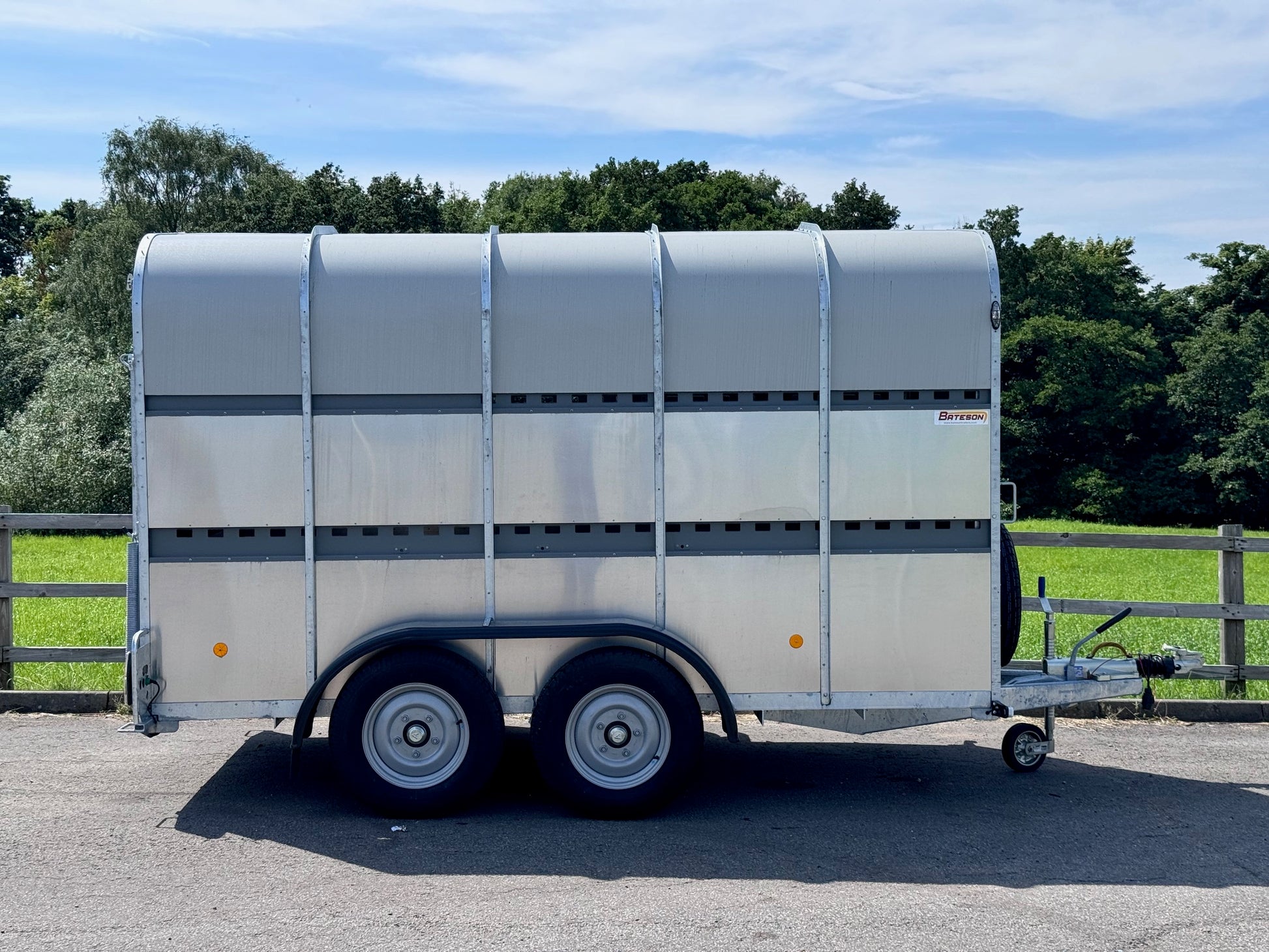

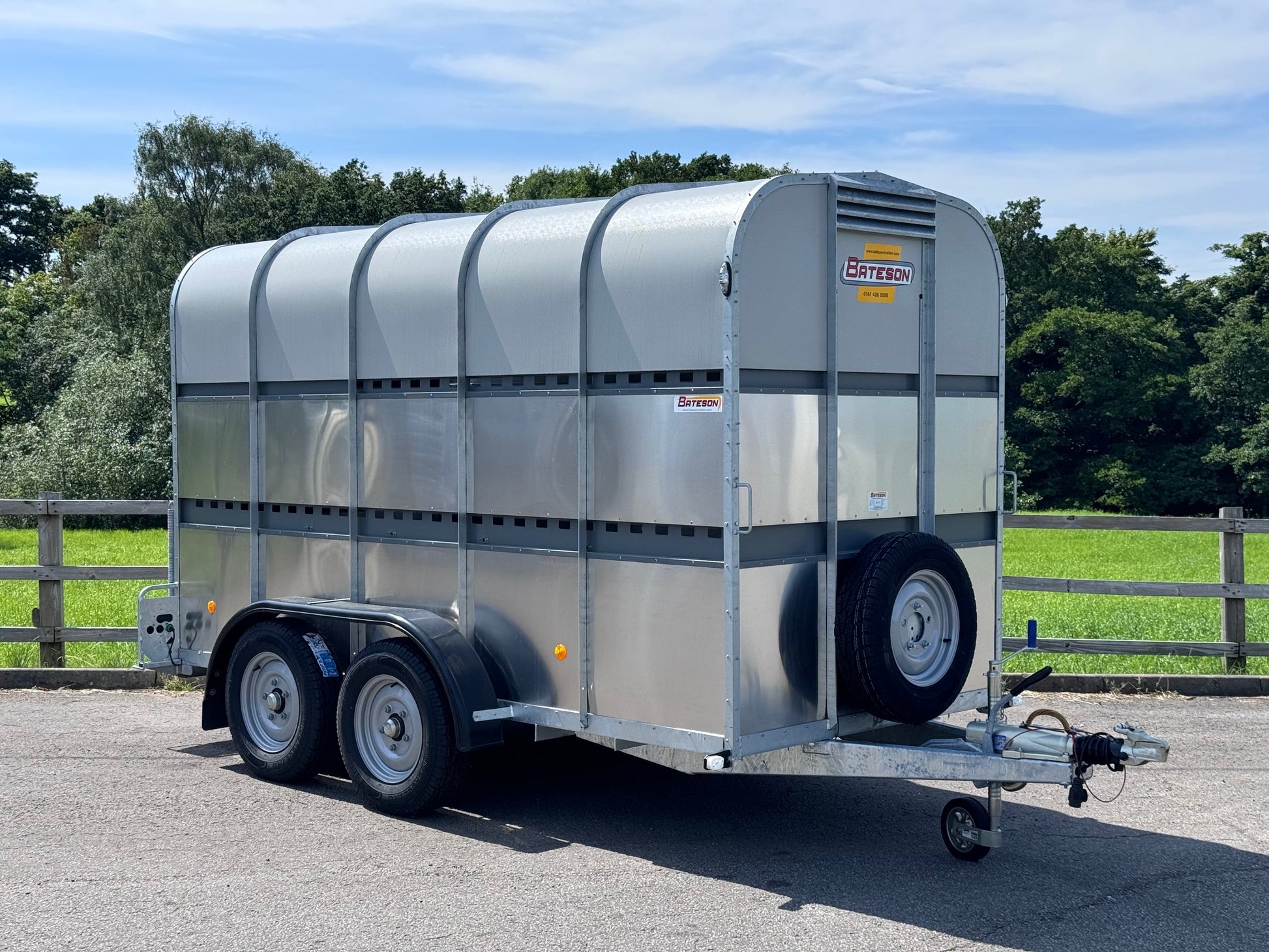

12' x 5'8" x 7' Livestock Trailer (Model 48HB) for Use with 4WD and Larger Vehicles (Can Accommodate Horses)

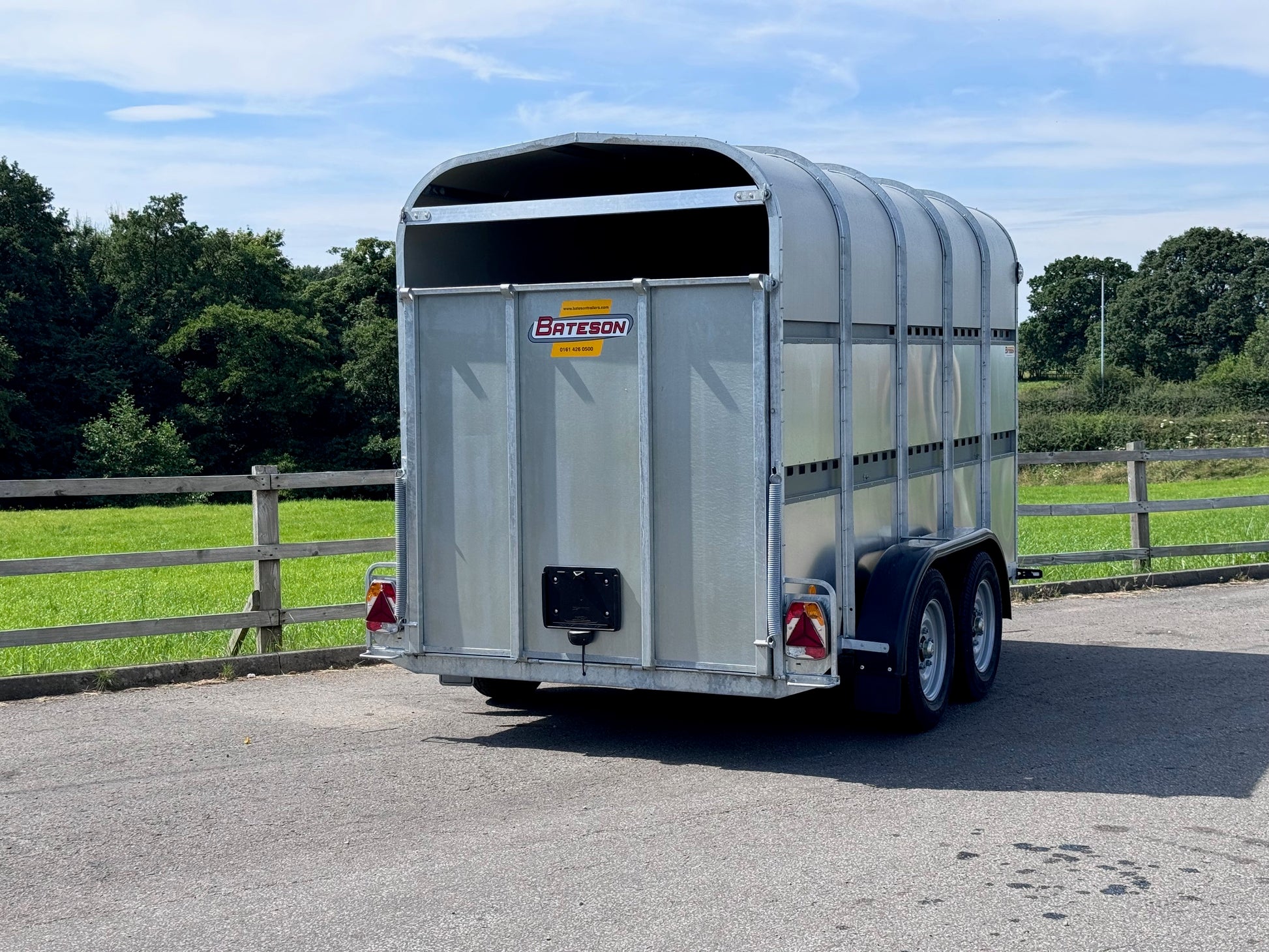

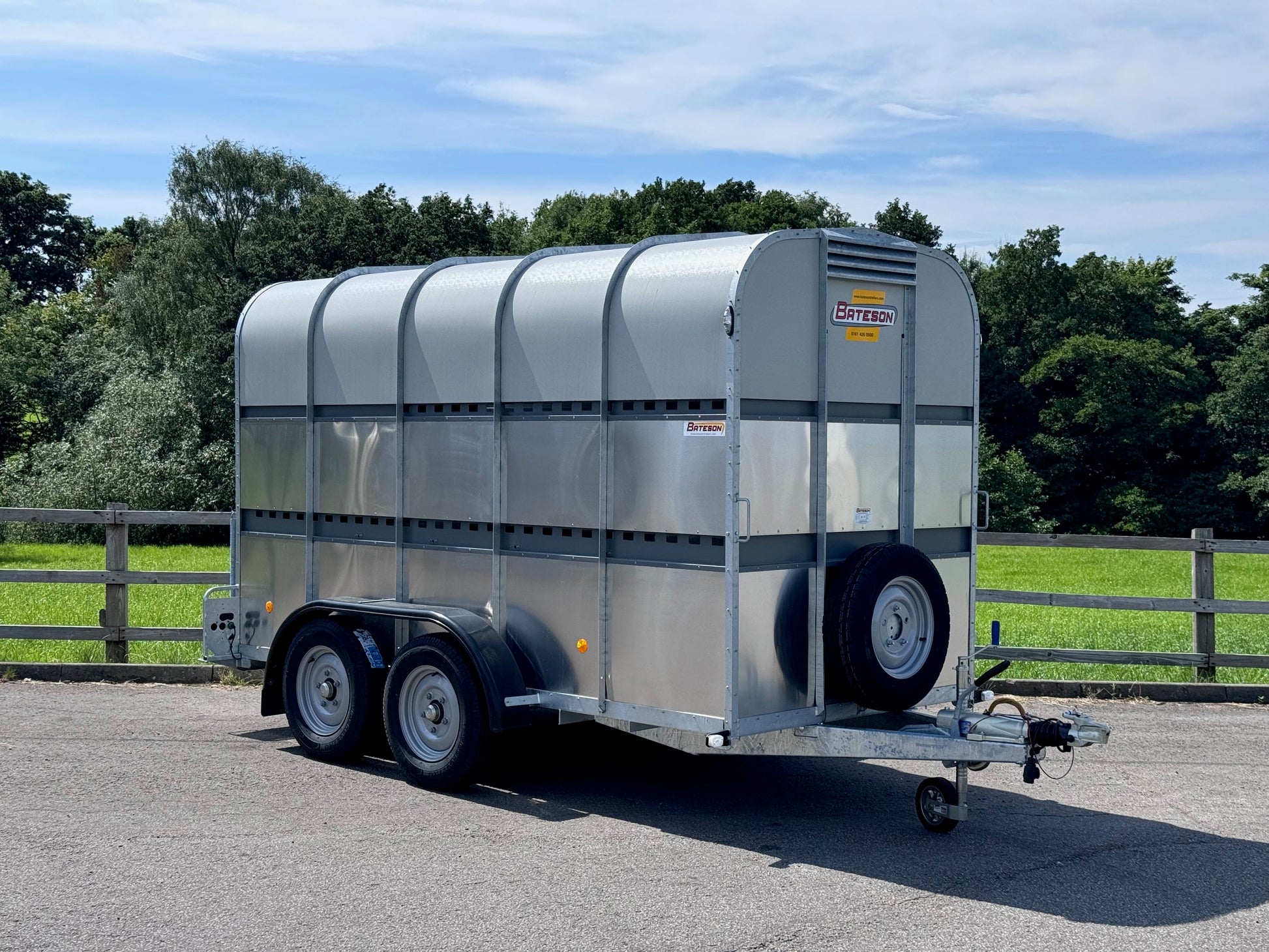

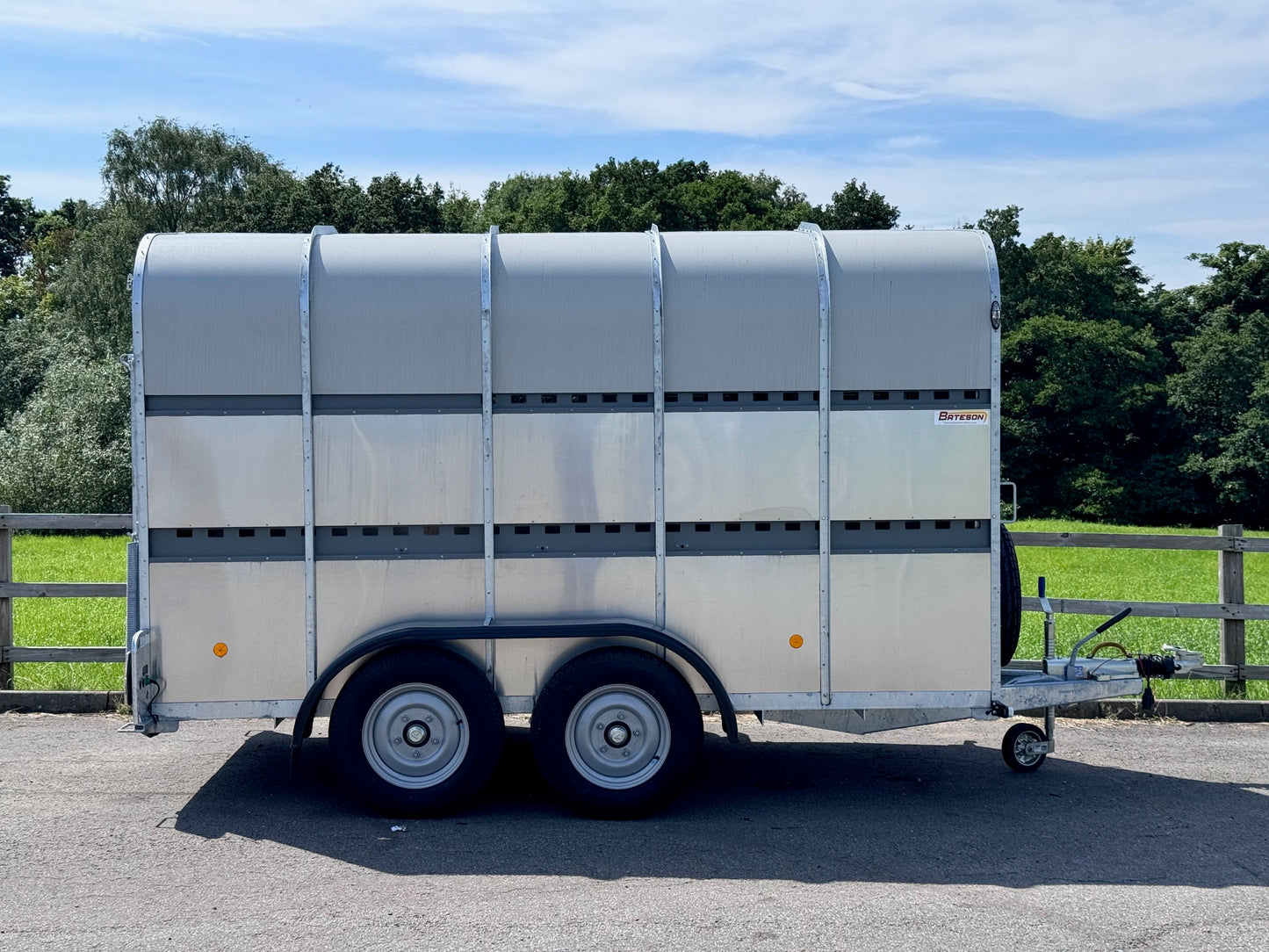

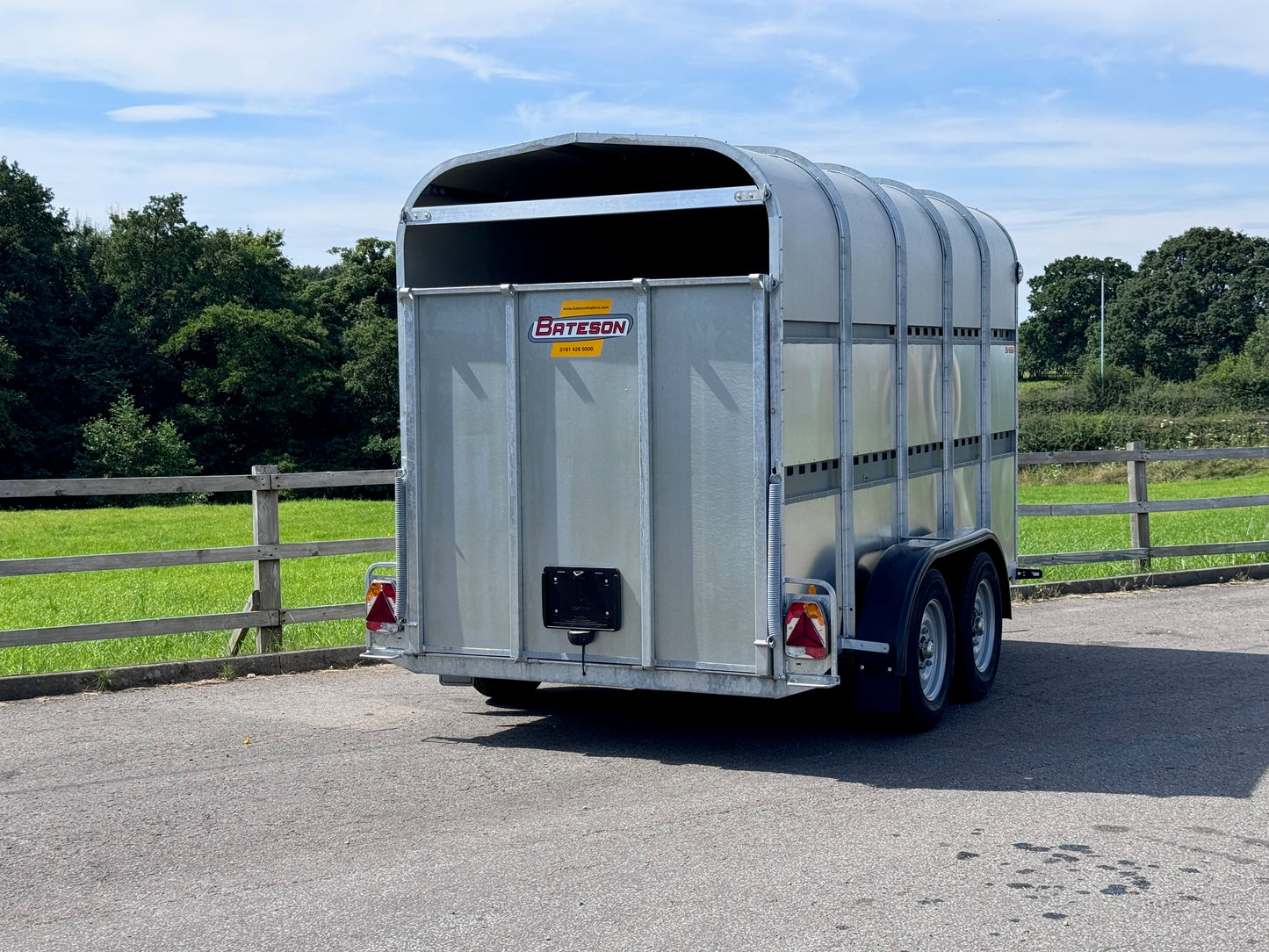

The Model 48HB is our largest Livestock Trailer, featuring increased headroom of 7' to enable it to be used for horses as well as cattle, sheep and pigs. Shown with an optional cross division gate, the 48HB is supplied with a timber ramp as standard and is built to handle the most demanding transport requirements with confidence and care.
Key Features & Benefits of the 48HB 12' x 5'8" Livestock Bateson Trailer
- Galvanised Chassis: Hot dipped galvanised chassis for long-lasting corrosion resistance.
- Tough Alloy Sides: Panelled with 2mm toughened alloy sides for durability and animal containment.
- Weatherproof Roof: Plastic coated galvanised steel roof for all-weather protection.
- Robust Floor: 18mm Phenol coated panels covered with aluminium tread-plate for grip and hygiene.

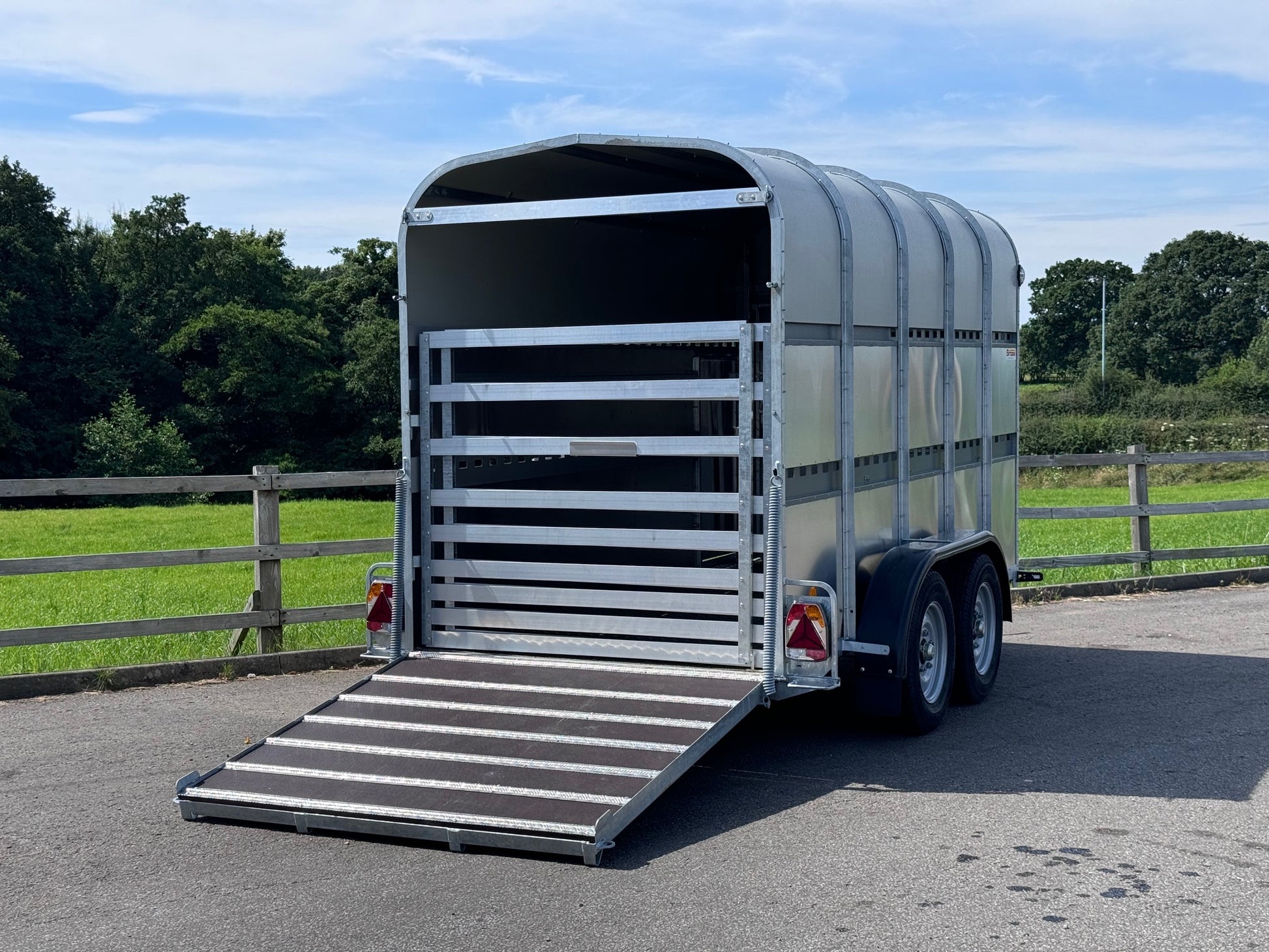

- Timber Ramp (Standard): Phenol coated timber ramp suitable for both cattle and horses; a folded tread-plate ramp door is available as an option.
- Increased Headroom: 7' internal height makes this trailer suitable for horses as well as livestock.
- Advanced Suspension: Full width independent suspension axles ensure a smooth and stable ride for your animals.
- Auto-Reversing Brakes: Equipped with auto-reversing brakes for enhanced stopping power and road safety.

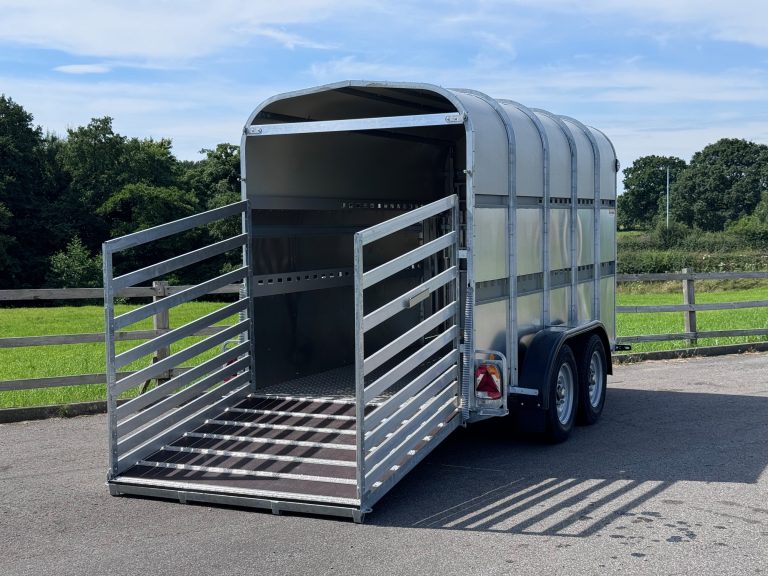

- Standard Equipment: Supplied standard with a front jockey wheel, side door, alloy ramp side gates, locking hitch, ramp lifting springs, and a spare wheel.
- Versatile Pen Lengths: Maximum permitted pen lengths are 12' for cattle, 10' for sheep and pigs, and 8' for calves.
- Decking Options: Available with simple lift out sheep decks with a rear ramp section.

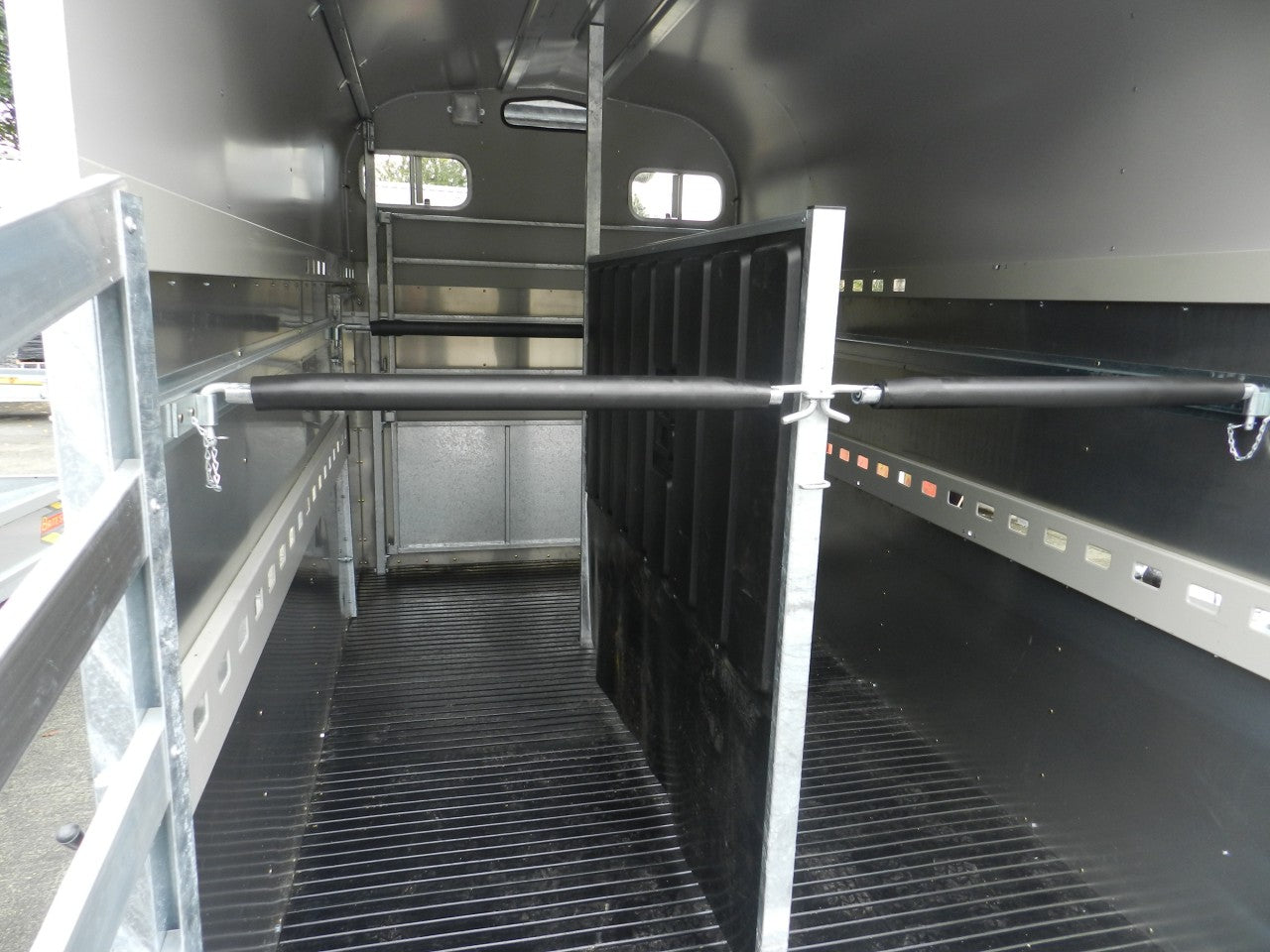

- Optional Horse Equipment: A centre partition with padded breast bars and lift out rubber floor mats are available as options for use with horses.
Safety & Security Features of the 48HB 12' x 5'8" Livestock Bateson Trailer
- Auto-Reversing Brakes: Equipped with auto-reversing brakes for enhanced stopping power and road safety.
- Secure Towing: Features a locking hitch to keep your trailer securely attached to your vehicle.
- Ramp Springs: Ramp lifting springs assist in safe and easy operation of the rear ramp.
- Durable Build: Constructed to professional standards to ensure the safety and containment of your animals during transit.
Technical Specifications of the 48HB 12' x 5'8" Livestock Trailer
| Specification | Details |
|---|---|
| Model | 48HB 12' x 5'8" |
| Gross Weight | 3,100kg |
| Unladen Weight | 950kg |
| Capacity | 2,150kg |
| Overall Dimensions (mm) | L 5000 x W 2270 x H 2620 |
| Internal Dimensions (mm) | L 3600 x W 1710 x H 2100 |
| Deck System | Simple lift out sheep decks with a rear ramp section |
| Axle Configuration | Full width independent suspension axles |
| Additional Information |

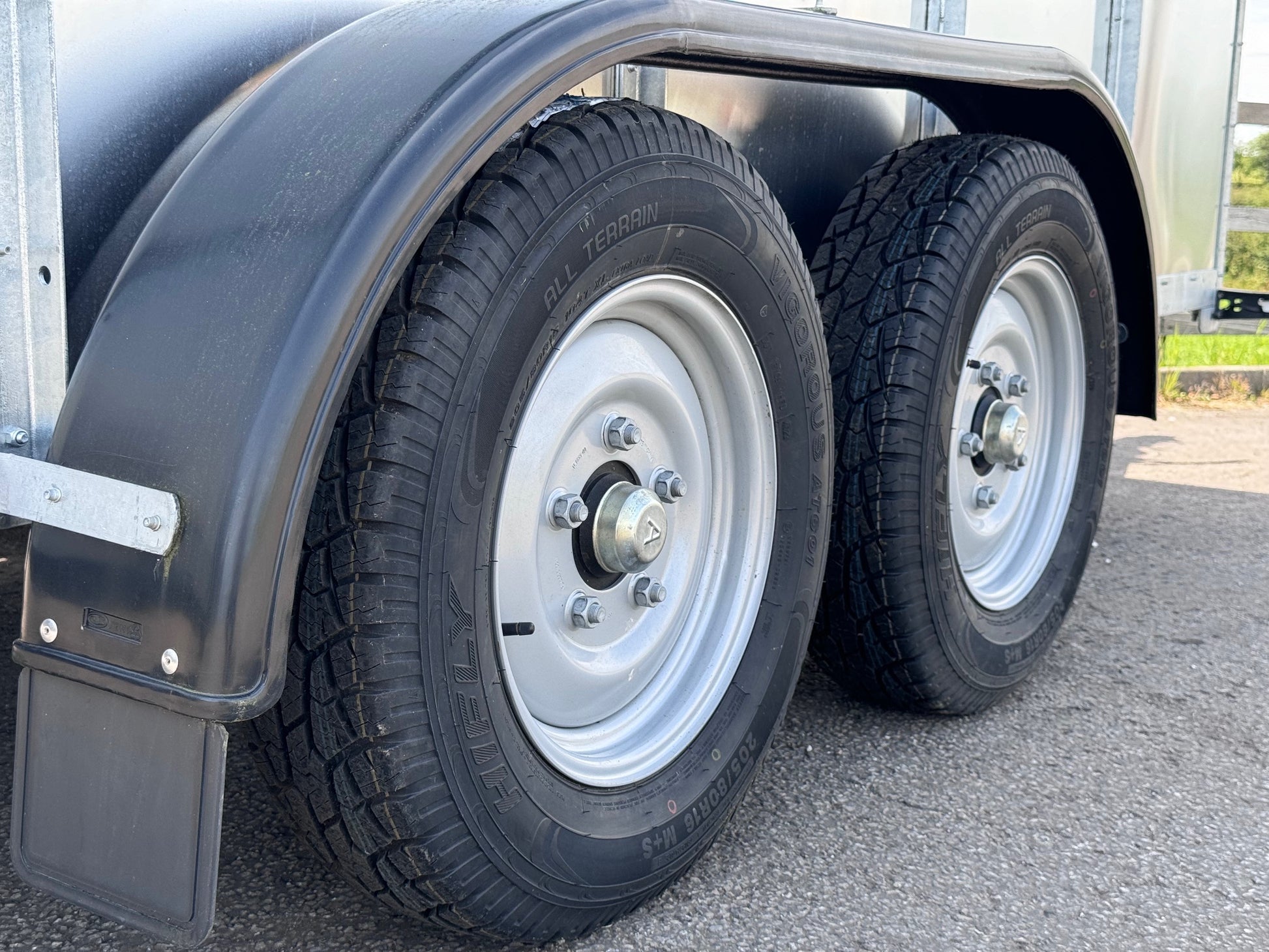

Tyre Size = 205 x 16 Tow Ball Height = 500mm |
| Manufacturer | Bateson |
| Price | £6,625.00 (ex. VAT) |
Starting at £6,625 (ex. VAT)
Optional extras (ex VAT)
| Item | Price |
|---|---|
| 12' x 5'8" Decks | £500.00 |
| 12v Interior Light | £60.00 |
| Breast Bar and Divider Panel | £300.00 |
| Cattle Cross Division Gate | £300.00 |
| Data Tag Security | £110.00 |
| Delivery Charge outside our geographical area | call for price |
| Heavy Duty Wheel Clamp | £175.00 |
| Hitch Head Lock | £175.00 |
| Opening Front Ventilation | £300.00 |
| Sump Tank | £250.00 |
| Universal Cross Division Gate (for use with decks fitted) | £300.00 |
48HB 12' x 5'8" Livestock Trailer – Frequently Asked Questions
Can the 48HB be used for horses?
Yes. The 48HB features 7' internal headroom, making it suitable for horses as well as cattle, sheep and pigs.
Is a cross division gate included as standard?
No, a cross division gate is available as an optional extra at £300.00 (ex. VAT).
What standard features are supplied with the trailer?
- Front jockey wheel

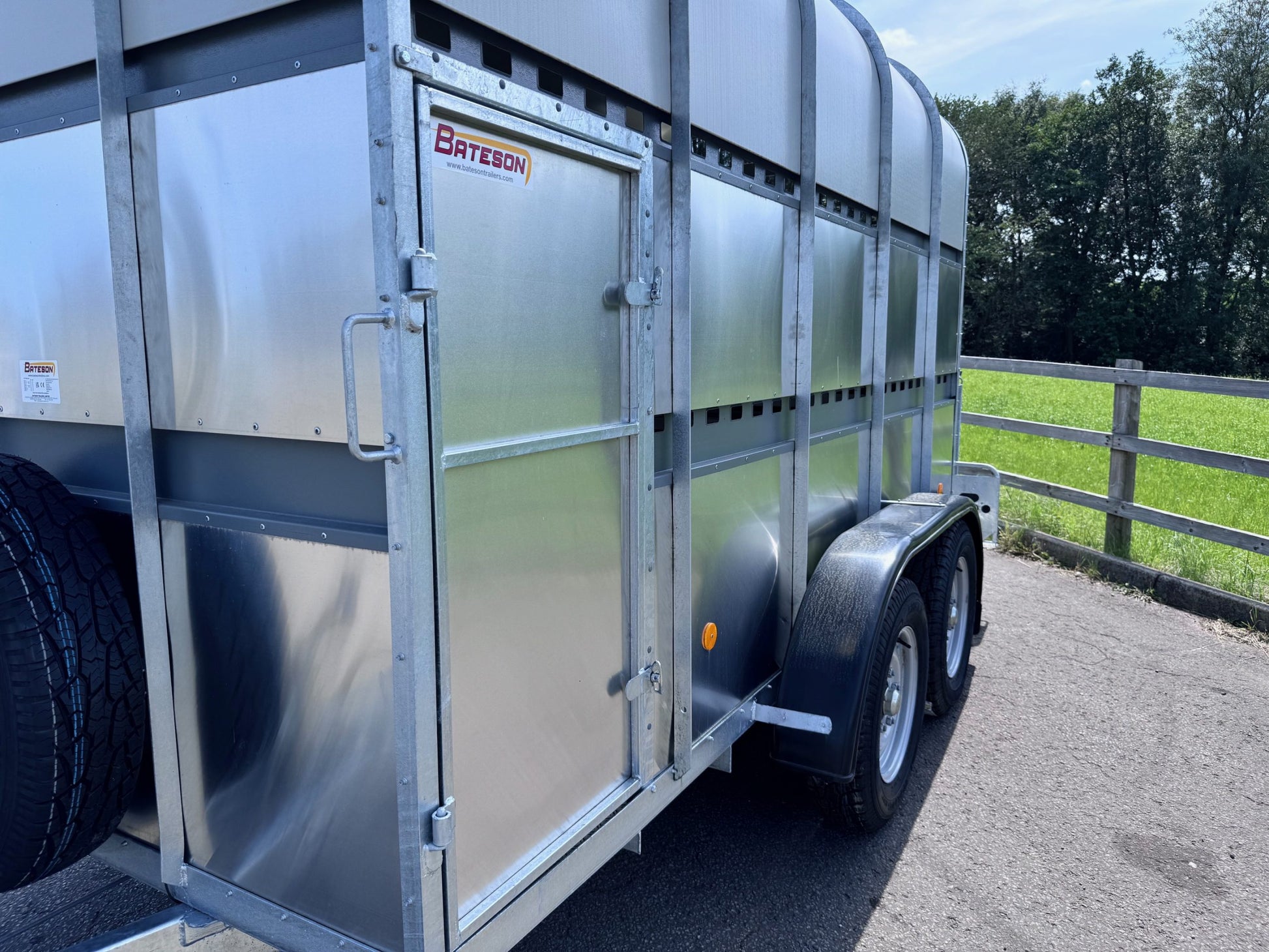

- Side door
- Alloy ramp side gates
- Locking hitch
- Ramp lifting springs
- Spare wheel
- Phenol coated timber ramp
What type of axle and brake system does the trailer have?
- Axles: Full width independent suspension axles.
- Brakes: Auto-reversing brakes.
What deck system is available on the 48HB?
The 48HB is available with simple lift out sheep decks with a rear ramp section.
What horse-specific options are available?
A centre partition with padded breast bars and lift out rubber floor mats are available as options for use with horses.
Call, email or send an enquiry to discuss specification options, availability, and delivery.
