7' x 4' Bateson 520 Single Axle Unbraked Platform Trailer
7' x 4' Bateson 520 Single Axle Unbraked Platform Trailer
Plus VAT
In stock
Couldn't load pickup availability
7' x 4' Bateson 520 Single Axle Unbraked Platform Trailer £1,350.00 exc. VAT – £1,620.00 inc. VAT

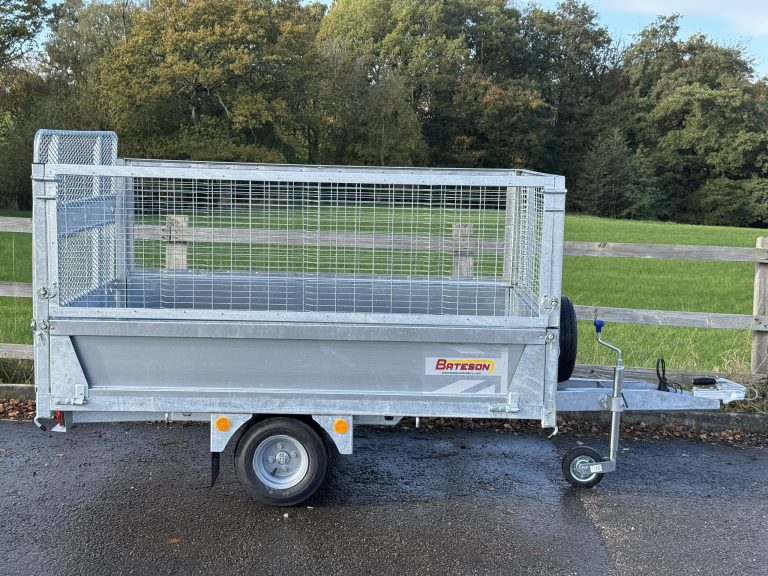

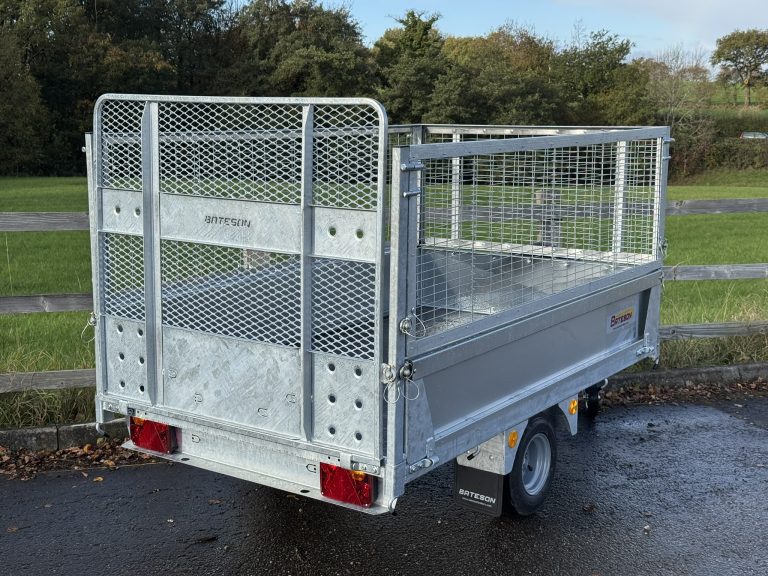

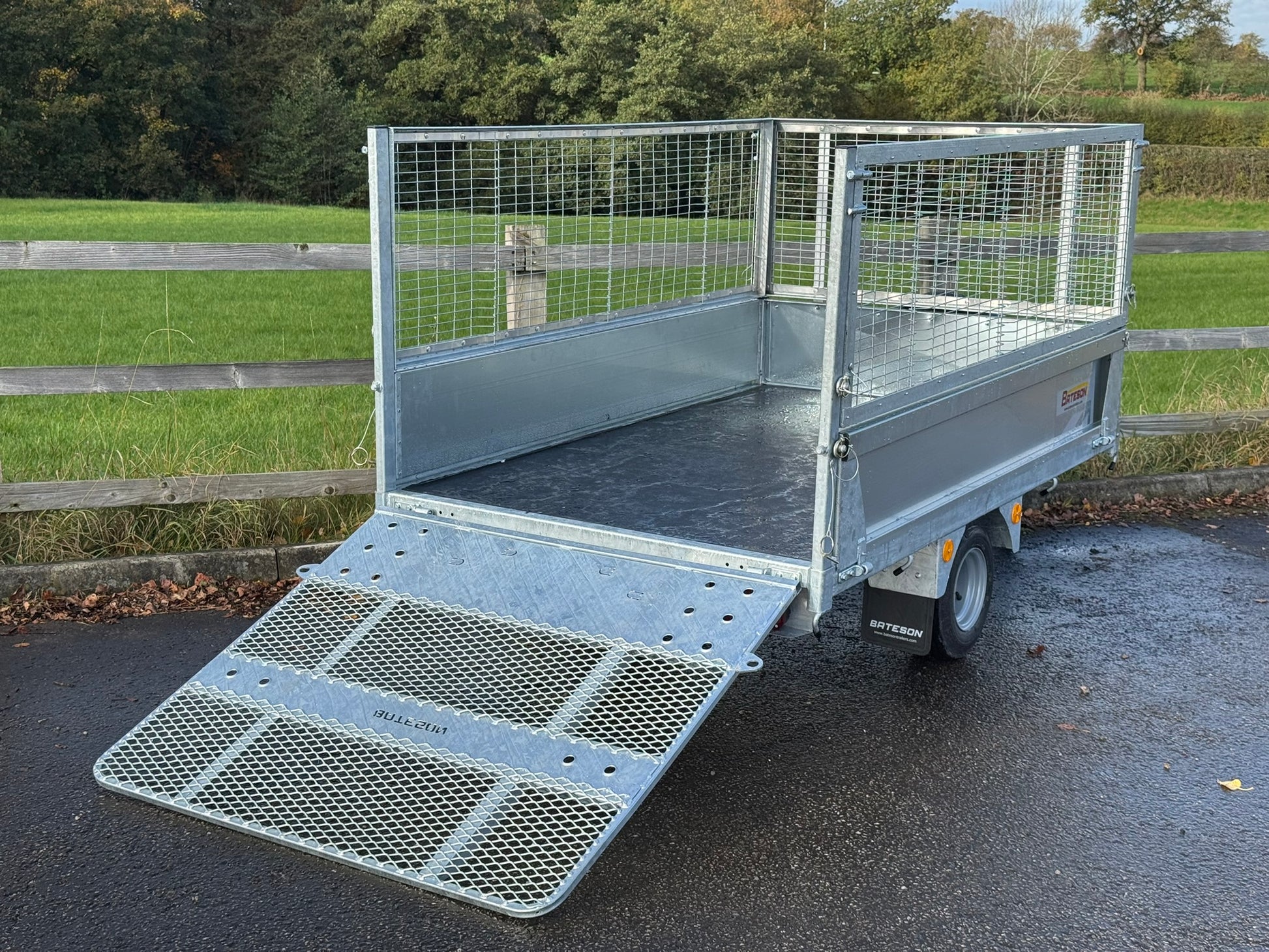

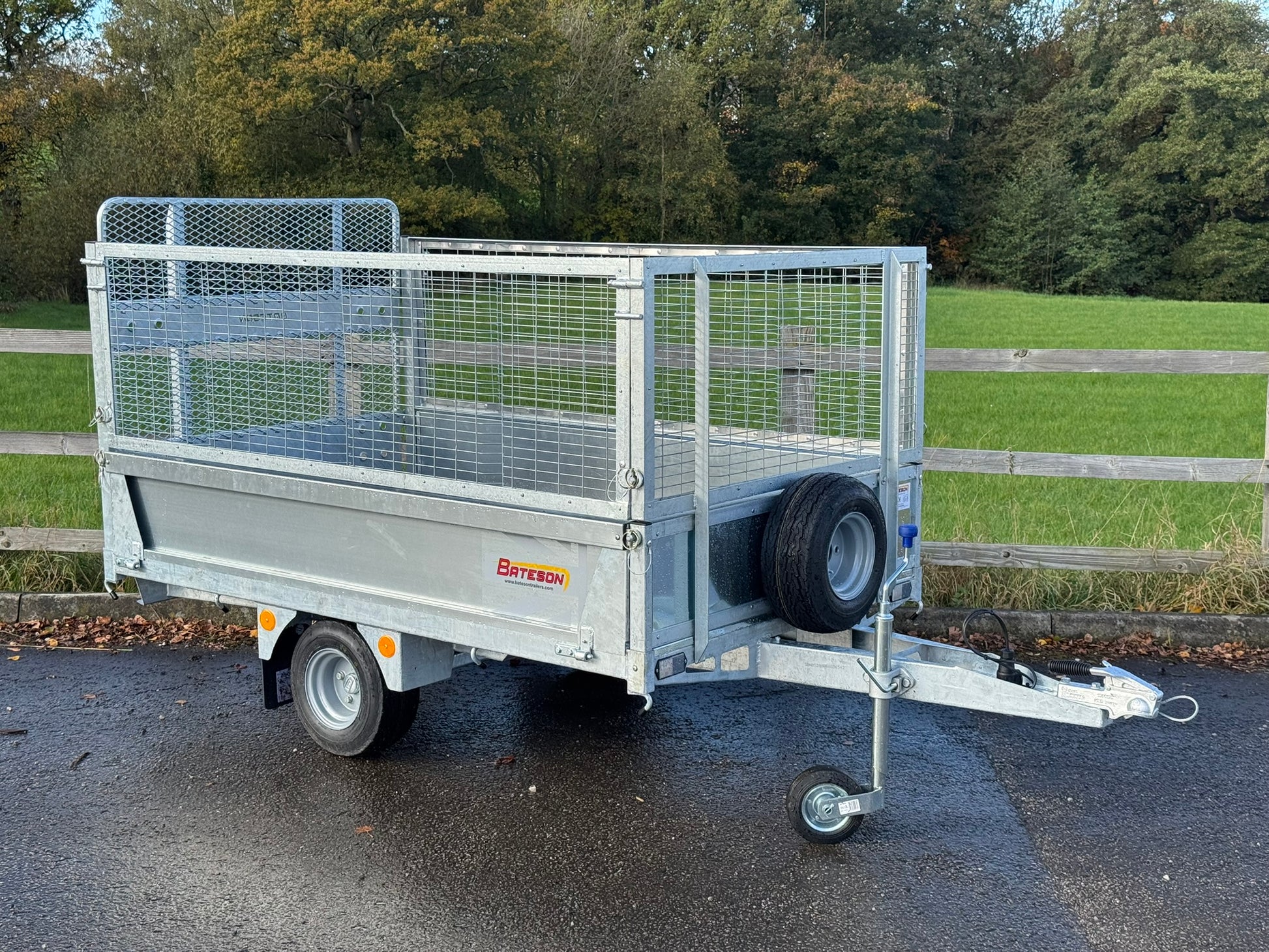

**Trailer shown with optional Mesh Extension Front and Opening Sides, Ramp Type Rear Door and Front Jockey Wheel**
The 520 unbraked trailer is a lightweight fully galvanised single-axle trailer designed for reliable use on or off road. Its 550kg gross weight makes it ideal behind cars, quad bikes, and small tractors — no overrun brakes required. It has a generous 2.1m x 1.25m platform which can accommodate larger quad bikes, motorcycles, and ride-on mowers, while independent rubber suspension ensures smooth, stable performance across a wide range of applications.
Key Features & Benefits
- Internal size - 6'10" x 4'1"
- No brakes required — 550kg gross weight means no overrun brakes needed, suitable for most vehicles
- Spacious 2.1m x 1.25m platform — accommodates quad bikes, motorcycles and ride-on mowers
- Fully galvanised heavy-duty construction — maximum corrosion resistance and long service life
- 18mm non-slip phenol-coated floor — durable grip surface for safe loading
- Independent rubber suspension — smooth, stable towing on and off road
- 16.5-6.5 x 8 wide wheels & tyres — suited to varied terrain
- Optional mesh extension sides — increased area for bulkier loads
Safety & Security
- Full road lighting kit included as standard
- Cast 50mm lockable ball hitch for secure connection
- Mudguards and mud flaps for road compliance
- Optional jockey wheel for secure parking and loading
Specifications
Trailer Weight & Capacity (KG)
| Gross Weight | 550 |
| Unladen Weight | 132 |
| Capacity | 418 |
Overall Dimensions (MM)
| Length | 3150 |
| Width | 1390 |
| Height | 800 |
Internal Dimensions (MM)
| Length | 2100 |
| Width | 1250 |
| Height | 300 |
Additional Information
| Tyre Size | 16.5 - 6.5 x 8 |
| Tow Ball Height | 450mm |
Important: The trailer and its load must not exceed the towing capacity of the vehicle. Always check your vehicle’s handbook and tow limits before use.
Product Add-Ons
All prices exclude VAT at 20%.
| 2 Metre Ratchet Strap | £8.00 |
| 4 x Recessed Deck Rings | £100.00 |
| Data Tag Security | £110.00 |
| Delivery Charge (UK Mainland) | £95.00 |
| Double Folding Ramp | £240.00 |
| Extra Standard Rear Door | £50.00 |
| Front Jockey Wheel | £40.00 |
| Front Ladder Rack | £75.00 |
| Heavy Duty Wheel Clamp | £175.00 |
| Hitch Head Lock | £175.00 |
| Mesh Extension Front and Opening Sides | £340.00 |
| Pair Short Rear Corner Posts (for use with mesh sides removed) | £40.00 |
| Ramp Type Rear Door (replacing the standard door) | £125.00 |
| Wheel Chock (pair) | £20.00 |
Bateson 520 Unbraked Trailer – Frequently Asked Questions
What is the gross weight of the Model 520 trailer?
The Model 520 has a gross weight of 550kg, with a payload capacity of 418kg.
Does the Model 520 require overrun brakes?
No. At 550kg gross weight, the trailer does not require overrun brakes, making it suitable for most cars, quad bikes and small tractors.
What vehicles can tow the Model 520?
Cars, quad bikes and small tractors rated to tow 550kg unbraked. Always check your vehicle’s handbook and legal towing limits before use.
What equipment will fit on the 520 platform?
The 2.1m x 1.25m platform is large enough for quad bikes, motorcycles and ride-on mowers. The optional mesh extension sides further increase the usable area for bulkier loads.
Can I add a ramp or mesh sides?
Yes. Options include a ramp type rear door, double folding ramp, and mesh extension front and opening sides. See the add-ons table above for full pricing.
What type of suspension does the trailer use?
The 520 features independent rubber suspension for smooth, stable towing on and off road.
Call today: 0791 777 33 27 to discuss Model 520 availability and add-on options.
