Kellfri ATV Tipping & Forestry Trailer PRO Tower2+
⚠️ Price includes UK delivery*. Customer assembly required (pre-assembly by arrangement)
Overview

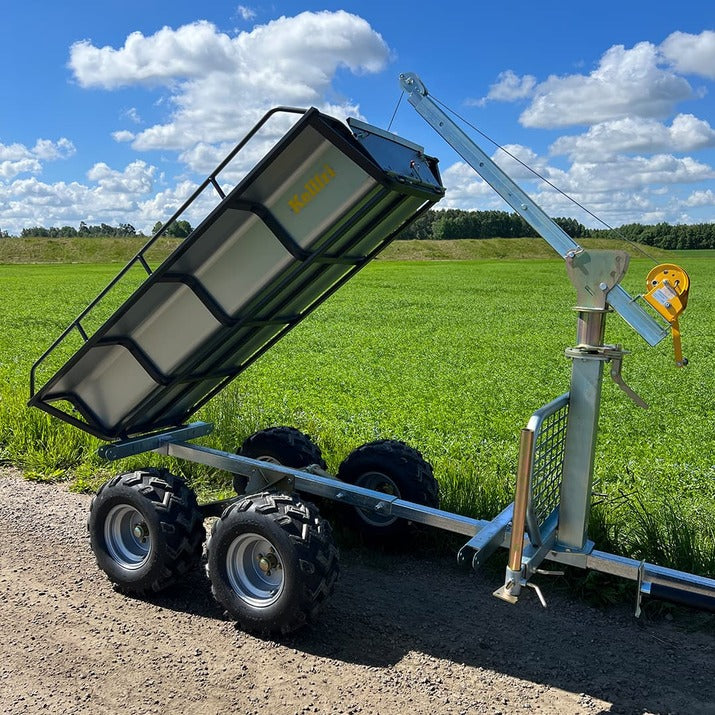

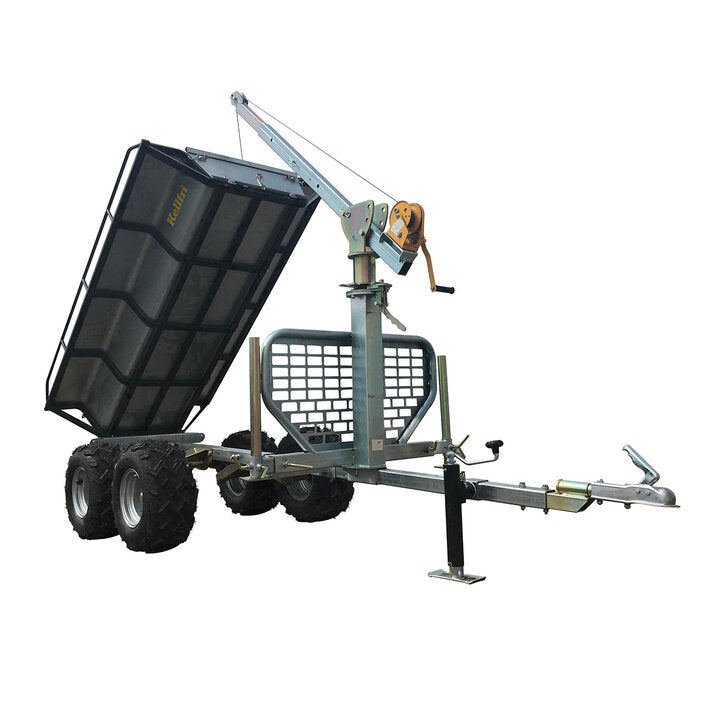

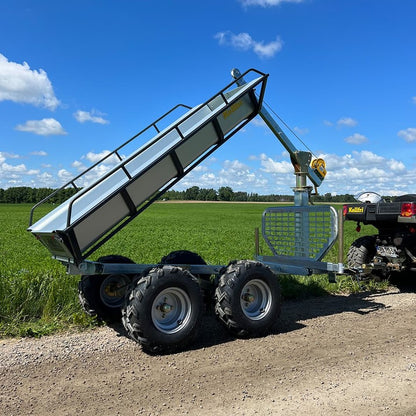

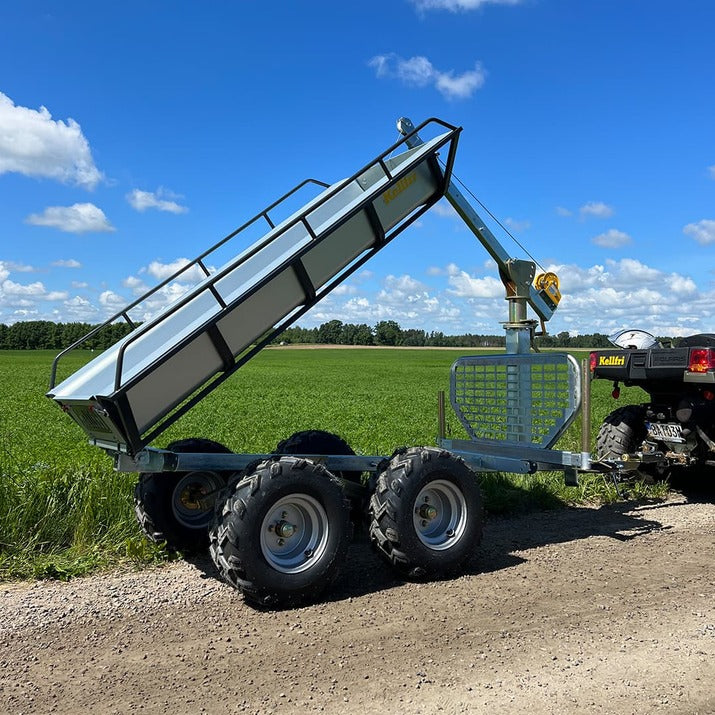

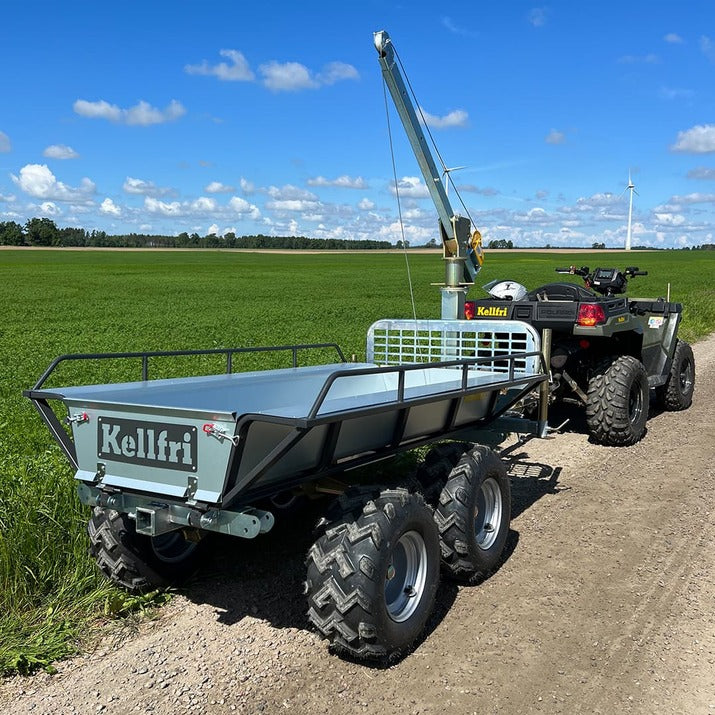

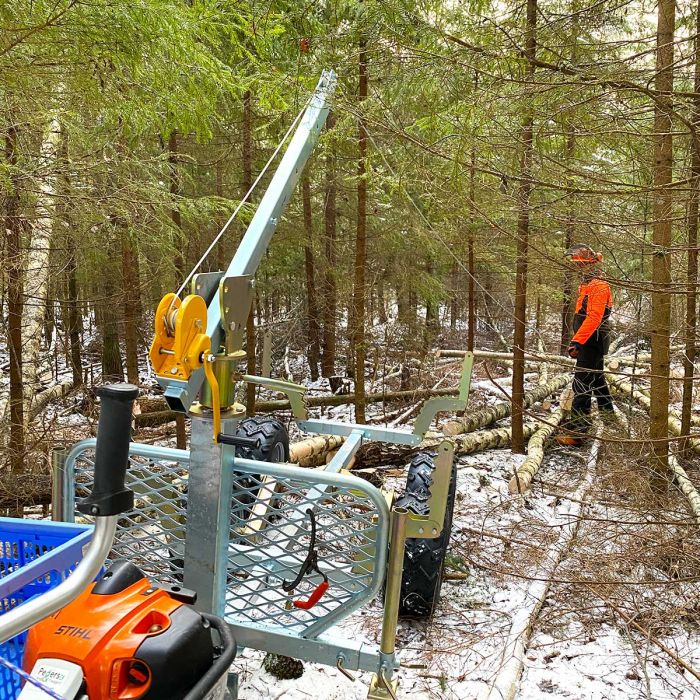

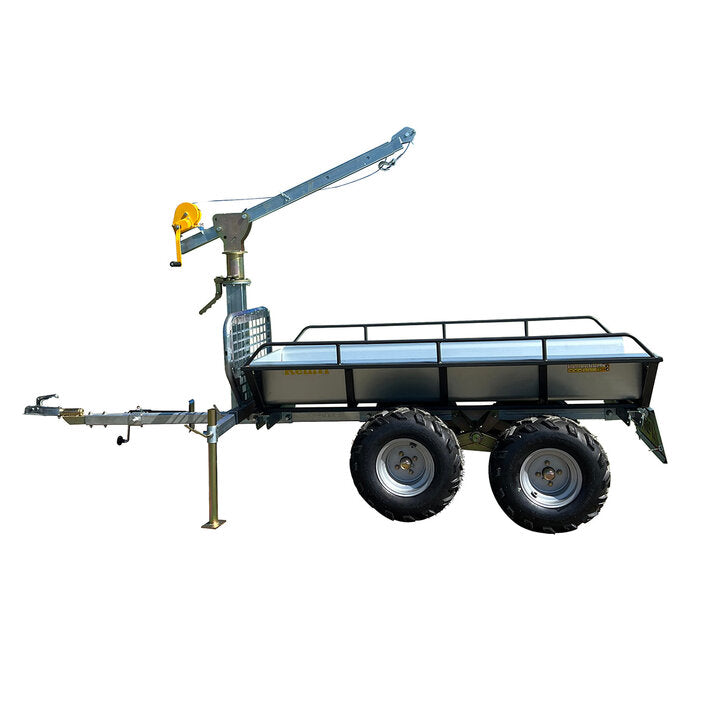

The Kellfri TV07PRO2 is a versatile, heavy-duty ATV tipping and forestry trailer built for all jobs around the farm and in the forest. Whether you're hauling loose materials, transporting timber, or winching logs out of tight woodland spaces, this trailer adapts to the task. The removable insert floor converts it from a tipping trailer to a forestry trailer in minutes, while the Tower2+ slewing crane with 360° rotation and seven-position mechanical lock gives you powerful, precise load handling in any direction.
* Some areas require a supplementary carriage charge, such as NI, Highlands & Islands, some parts of Southern England.
Key Features

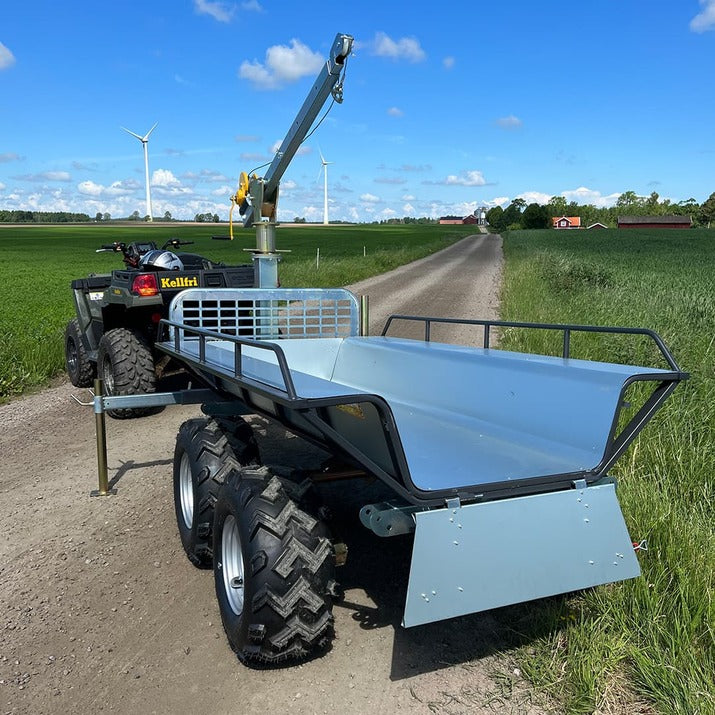

- Removable insert floor with 2 mm galvanised plating — transport loose material with floor in, timber without
- Powerful V-bogie for excellent climbing capability in forest terrain

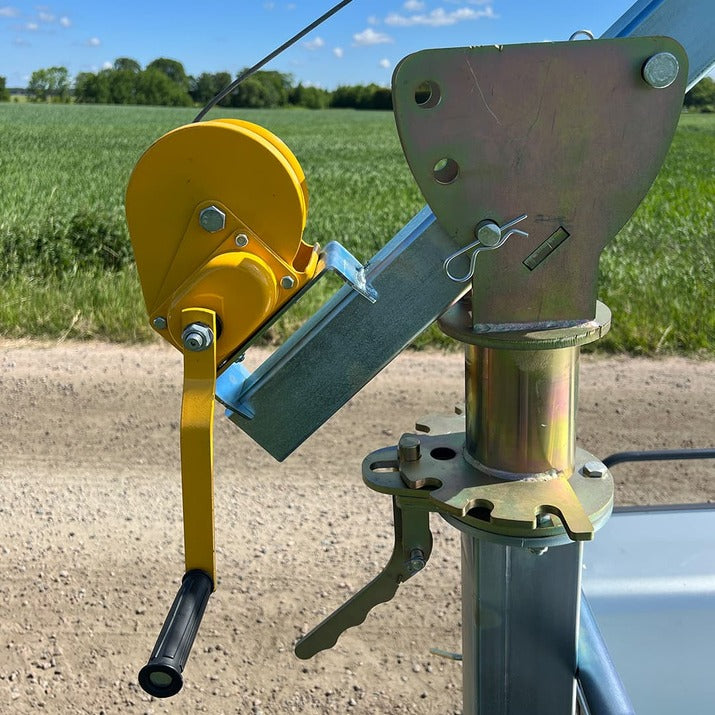

- Tower2+ mechanical slewing house lock with 7 positions — winch heavy loads in any direction
- 360° rotating Tower2+ crane tower

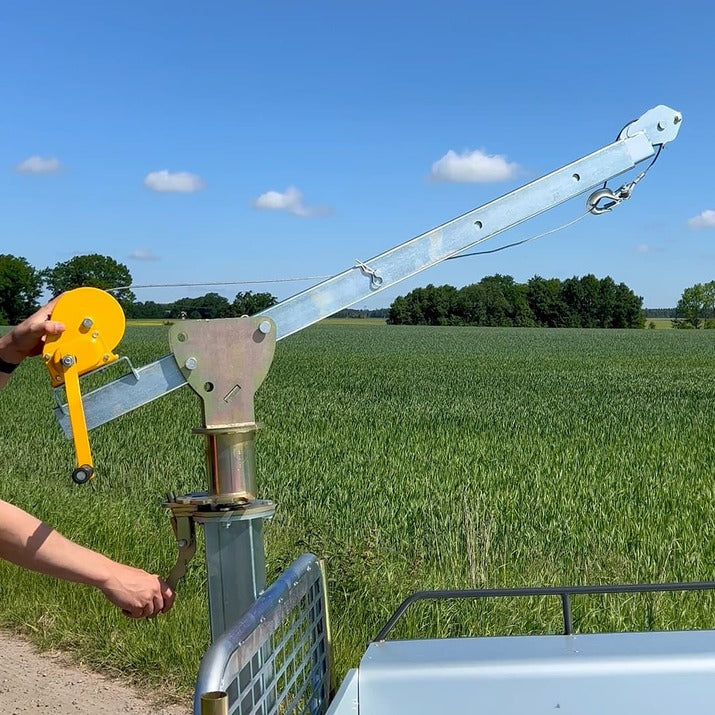

- Adjustable boom length: 160–220 cm

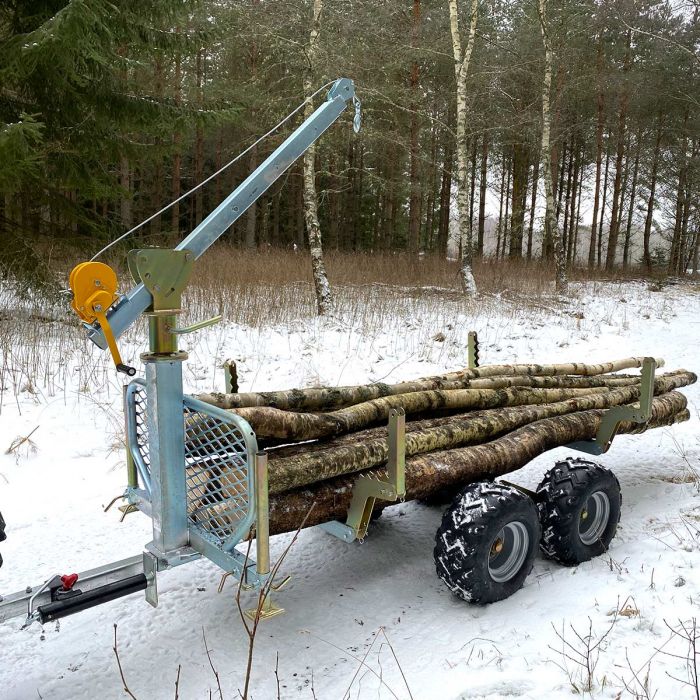

- 4 reinforced and serrated flip-up folding bolsters to minimise lifting height when loading timber
- Stable headboard to prevent load displacement
- 2 adjustable side stabilisers for use during loading — included as standard

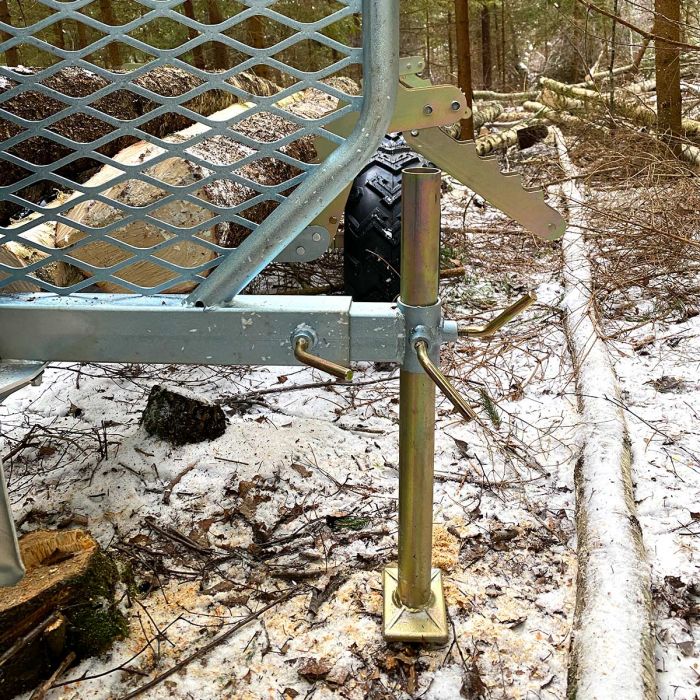

- 1 parking jack for the tow bar, adjustable via crank
- Removable front side, tailgate, and headboard to accommodate different timber lengths
- Eyelet in front floor edge for tipping with winch at a high tipping angle
- All-terrain tyre tread pattern (22x11-10) for grip and load-bearing in forest conditions
- Tyres inflatable via standard tyre valves
- Rotatable tow bar ball hitch for 50 mm ball coupling
- Black brake hand winch included — max. lifting capacity 150 kg, pulling capacity 500 kg
- Full galvanised plating throughout for long-term durability
Safety & Security
- Mechanical Tower2+ slewing lock with 7 positions for controlled, stable winching
- Adjustable side stabilisers keep the trailer steady during loading and unloading
- Parking jack ensures stability when hitching and unhitching
- Serrated bolsters lock timber securely during transport
- Stable headboard prevents forward load shift
Practical Elements
- Floor removal requires only two pins — quick conversion between tipping and forestry modes
- Crane tower attachment position is adjustable
- Folding bolsters minimise the height you need to lift timber when loading
- All-terrain tyres suited to woodland and rough farm tracks
- Accessories available to expand functionality — see add-ons below
Specifications
| Specification | Detail |
|---|---|
| Product No. | 23-TV07PRO2 |
| Max. Load | 700 kg |
| Weight | 350 kg |
| Ground Clearance | 300 mm |
| Tyre Size | 22 x 11-10 (all-terrain) |
| Floor Plating | 2 mm galvanised |
| Boom Length | 160–220 cm (adjustable) |
| Slewing Positions | 7 + 360° rotation |
| Winch Max. Lifting Capacity | 150 kg |
| Winch Pulling Capacity | 500 kg |
| Gear Ratio (Crank) | 4:1 |
| Coupling | 50 mm ball coupling (rotatable) |
| Winch | Black brake hand winch (included) |
Product Add-Ons & Accessories
| Item | Type | Price (ex. VAT) |
|---|---|---|
| Assembly (supplied unassembled — we can assemble for you) | Service | Price on request |
| Bolster Kit — 4 Circular Bolsters with Attachments | Forestry Accessory | £140.00 |
| Brake Hand Winch for Winch Crane | Spare Part / Accessory | £60.00 |
| Cargo Net 268 x 335 cm | Accessory | £40.00 |
| Dolly Manual | Accessory | £80.00 |
| Electric Winch 12V 908 kg | Forestry Accessory | £130.00 |
| Extended Tailgate for TV07PRO Forestry Trailer | Forestry Accessory | £120.00 |
| Extension Bracket for Tipping Trailer ATV TV07PRO | Accessory | £160.00 |
| Timber Tongs | Forestry Accessory | £60.00 |
For full accessories information and availability, please contact us.
Note: Some images show the trailer with a yellow winch or without a winch, and may feature a previous slewing house model or additional bolster kit. Your trailer is supplied with a black brake hand winch.
