Kellfri ATV Tipping Trailer 1420kg with Electric Hydraulic Tipper
⚠️ Price includes UK delivery*. Customer assembly required (pre-assembly by arrangement)
Overview

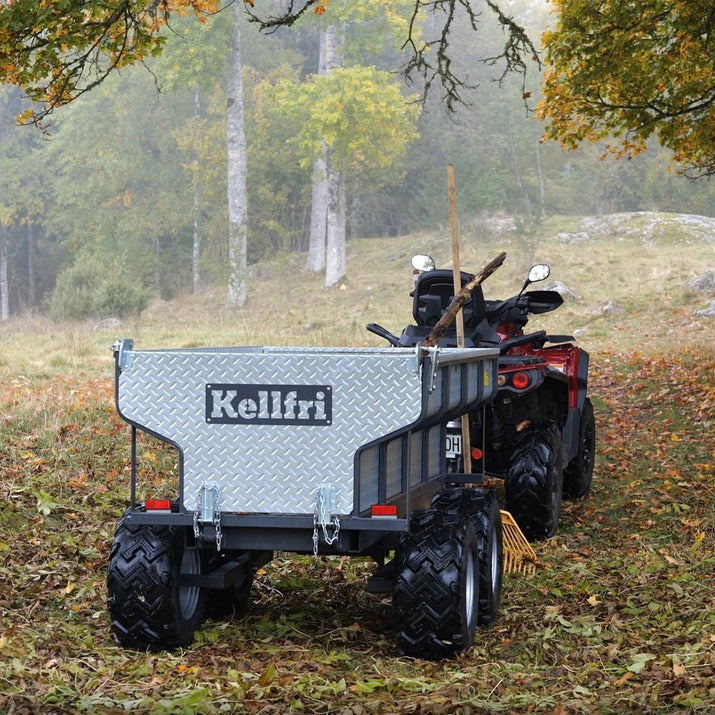

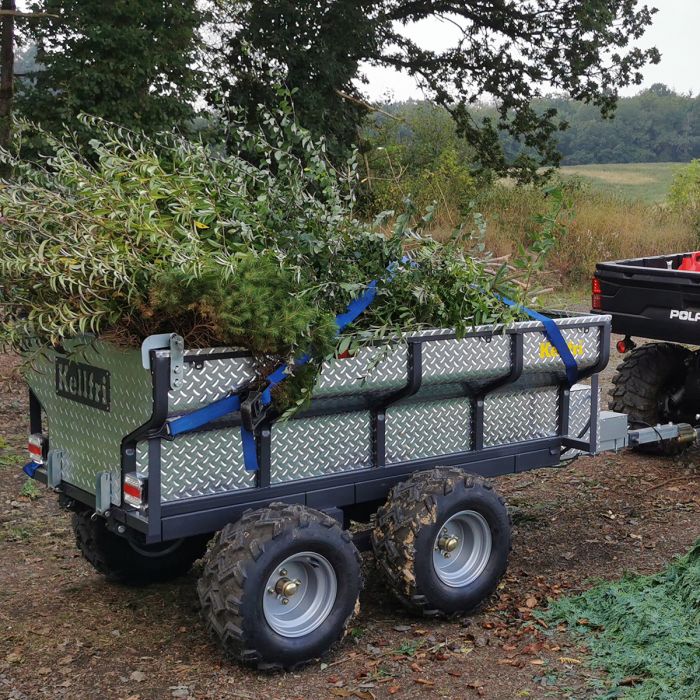

The Kellfri TV10H is a heavy-duty ATV tipping trailer with a 12V electric hydraulic tipper, purpose-built for efficient transportation of bulk materials across all terrain. With a 1,420 kg maximum load capacity, a powerful three-stage tipper ram, and a generously dimensioned 2 mm galvanised tread plate floor, it's the ideal solution for moving gravel, earth, chippings, grass, leaves, and more — whether you're on a smooth driveway, grass, or rough off-road ground.
* Some areas require a supplementary carriage charge, such as NI, Highlands & Islands, some parts of Southern England.
Key Features
- 12V electric hydraulic tipper — controlled via cable-reach control box from your ATV

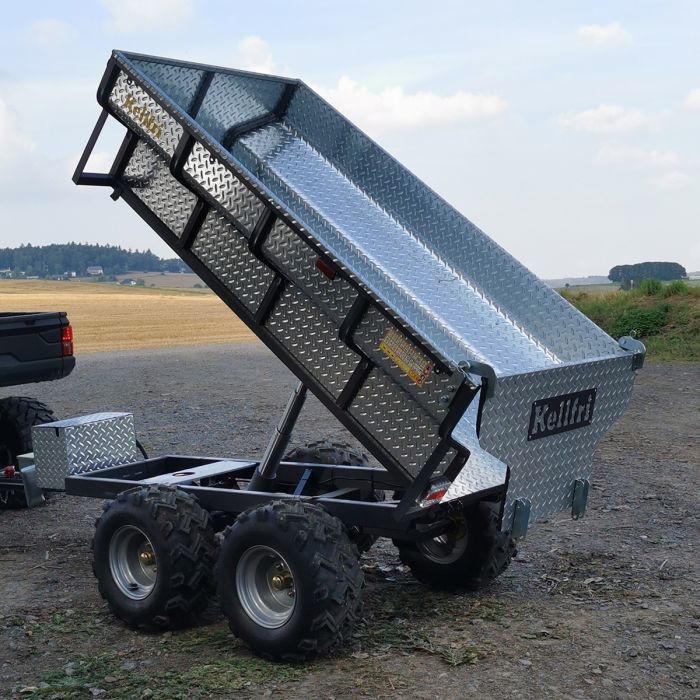

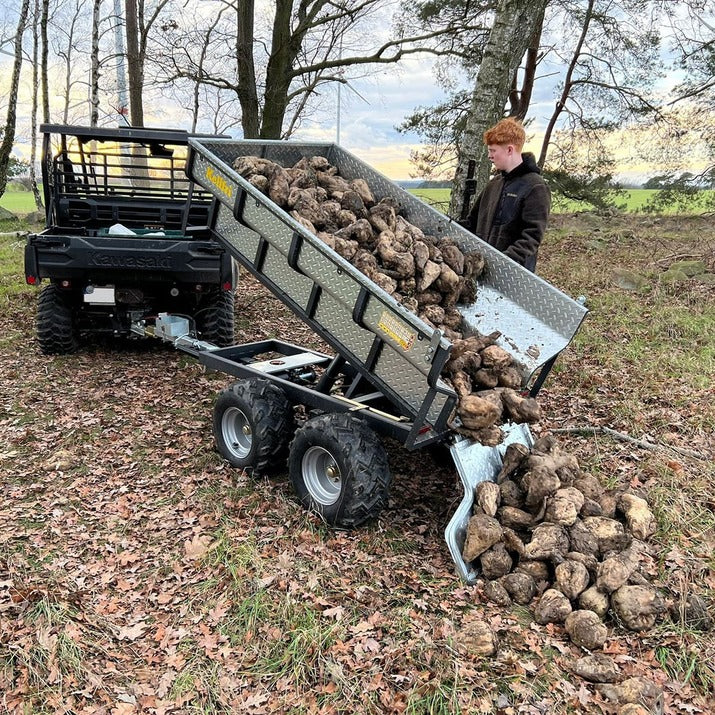

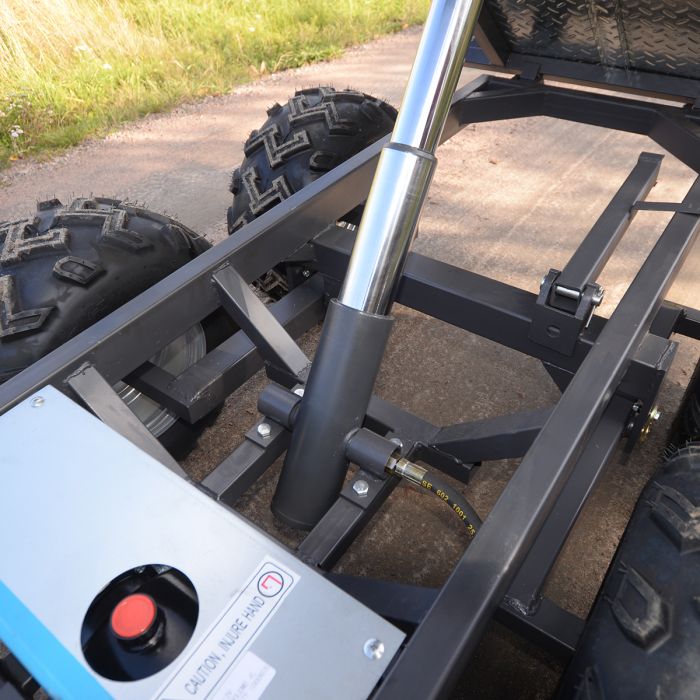

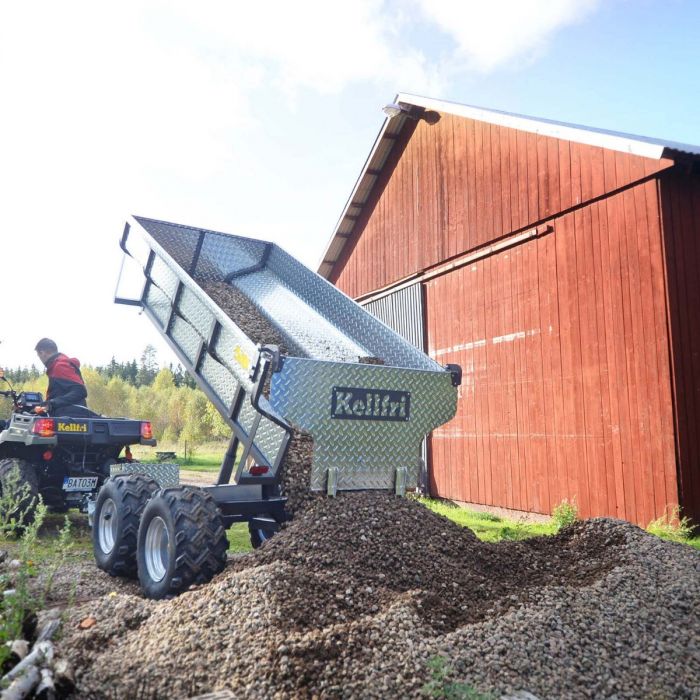

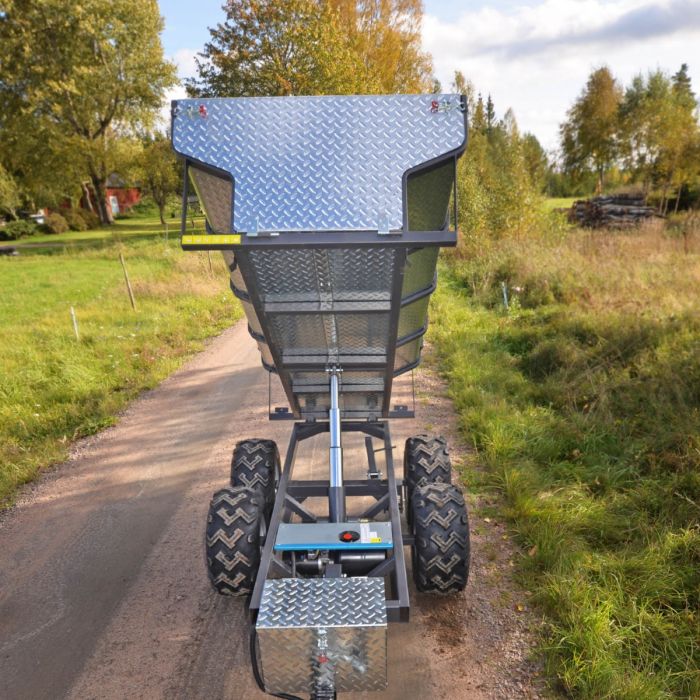

- Powerful three-stage tipper ram for a large tipping angle, even with moist or compacted loads
- 1,420 kg maximum load capacity
- 2 mm galvanised tread plate floor, built on 10 reinforced steel profiles (5 per side)
- Chassis frame constructed from 40 x 80 mm profiles, 2.75 mm thick, reinforced at rear corners for tipping loads
- 2 wide-set floor attachment eyelets in solid steel for stable tipping
- All-terrain tyres 22 x 11-10 — suitable for grass, gravel, and asphalt

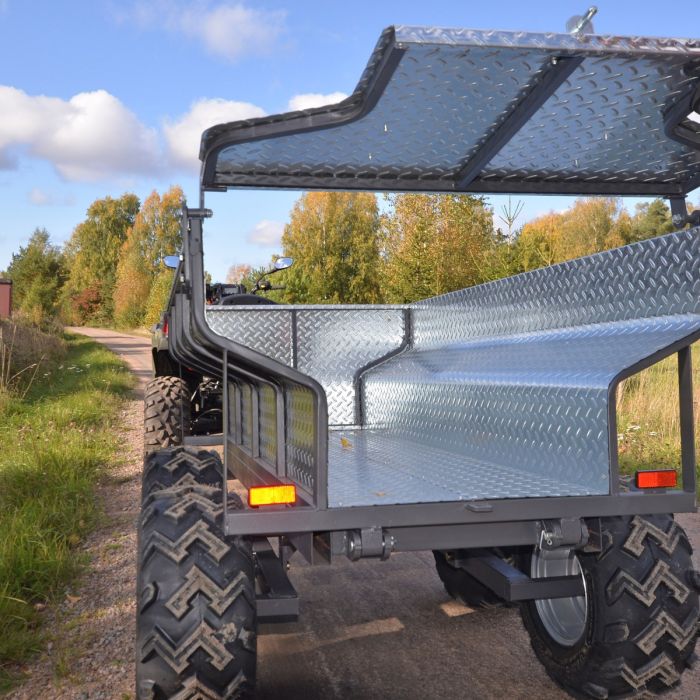

- Openable headboard — opens downwards or fully removable via two clamps and hinges
- Multi-function tailgate — opens, lowers as a ramp, or locks as a spreading hinge for even gravel distribution
- Variable brackets at tailgate top edge for gravel spreading

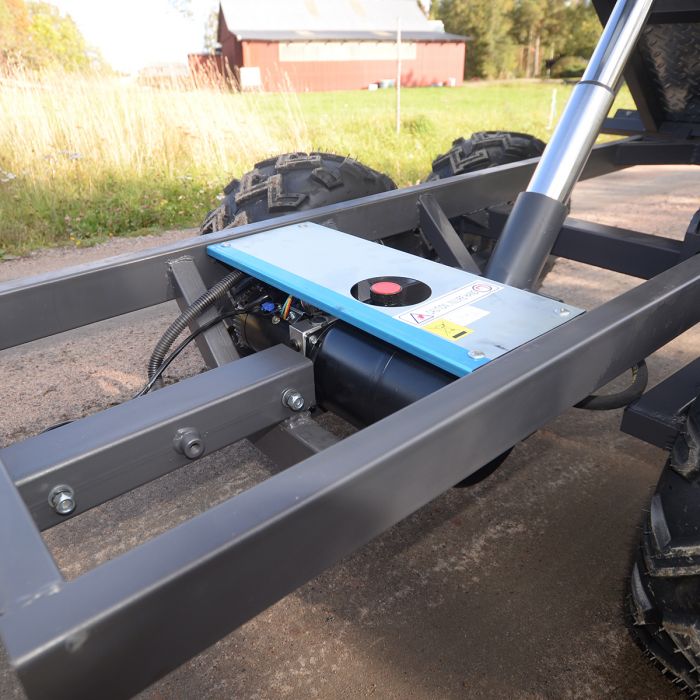

- Electrics and hydraulics protected and neatly positioned under the floor

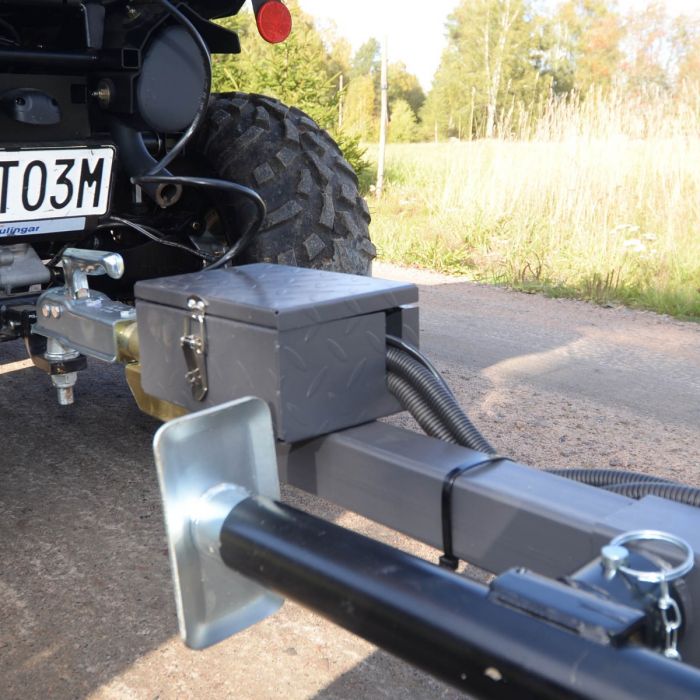

- Small tread plate storage box for control box included
- Rear reflectors for visibility in low light

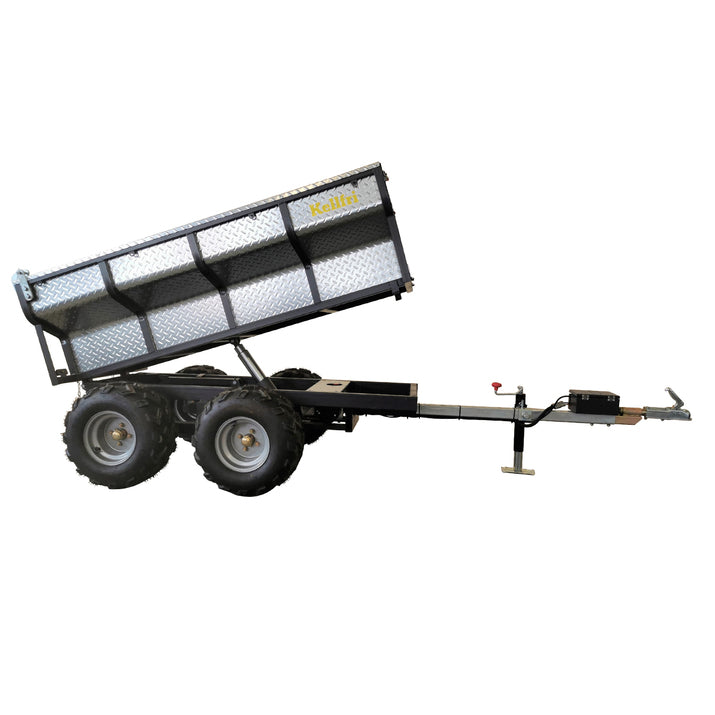

- Stabilisers without wheels (with crank) and 50 mm rotatable tow bar ball hitch included
- Oil included
Safety & Security
- Floor locking handle in chassis — must be used when floor is fully tipped for cleaning or servicing
- Rear reflectors for high visibility in poor light conditions
- Reinforced rear corner profiles to handle heavy tipping loads
- Solid steel attachment eyelets positioned wide apart for stable, controlled tipping
- Stabilisers with crank included for stability when stationary
Practical Elements
- Large tipping angle makes the floor easy to clean after use
- Removable headboard for transporting longer loads such as logs or beams
- Tailgate spreading hinge ideal for even gravel distribution on tracks and driveways
- Control box cable reaches all the way to your ATV — storage box included when not in use
- Trailer can be used with or without extension sides (available as accessory)
- Compatible with quick-lock tailgate, battery box, and stabilisers with wheels (all available as accessories)
Specifications
| Specification | Detail |
|---|---|
| Product No. | 23-TV10H |
| Max. Load | 1,420 kg |
| Axle Type | Bogie |

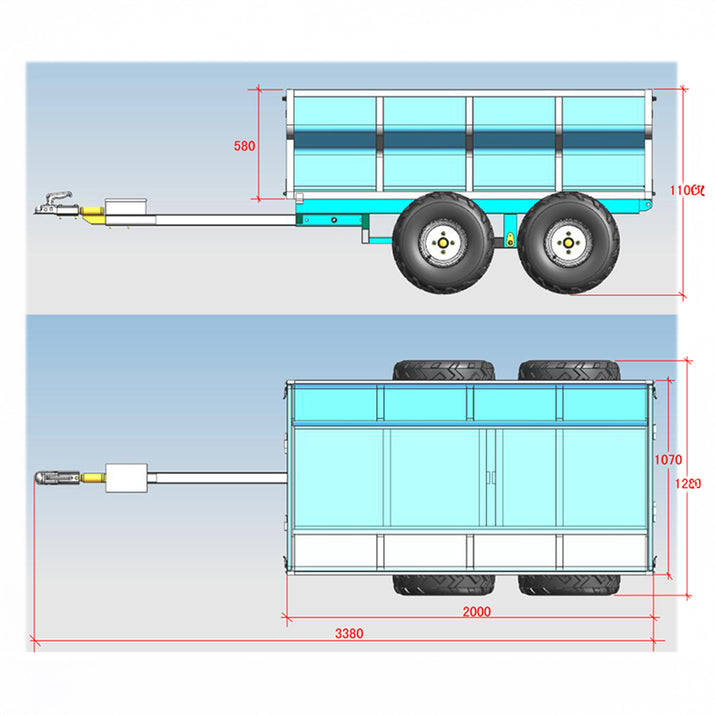

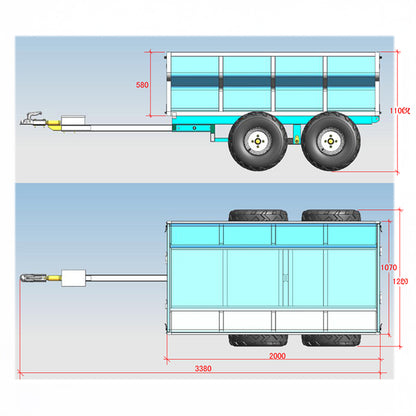

| Overall Dimensions (L x W x H) | 3,380 x 1,280 x 1,100 mm |
| Floor Dimensions (L x W x H) | 2,000 x 1,070 x 580 mm |
| Floor Material | 2 mm galvanised tread plate |
| Chassis Profile | 40 x 80 mm, 2.75 mm wall thickness |
| Tipper | 12V electric hydraulic, three-stage ram |
| Tipping Angle | 40° |
| Tyre Size | 22 x 11-10 (all-terrain) |
| Coupling | 50 mm rotatable tow bar ball hitch |
| Stabilisers | Without wheels, with crank (included) |
| Oil | Included (check level before first use) |
Product Add-Ons & Accessories
| Item | Type | Price (ex. VAT) |
|---|---|---|
| Assembly (requires assembly — we can assemble for you) | Service | Price on request |
| Battery Box for Tipping Trailer ATV 1420 kg | Accessory | £100.00 |
| Cargo Net 268 x 335 cm | Accessory | £40.00 |
| Dolly Manual | Accessory | £80.00 |
| Extension Side for Tipping Trailer 1420 kg | Accessory | £180.00 |
| Hydraulic System with Tipper Ram 12V | Spare Part | £675.00 |
| Quick Lock for Tailgate | Accessory | Price on request |
| Stabilisers with Wheels | Accessory | £90.00 |
For accessories pricing and availability, please contact us.

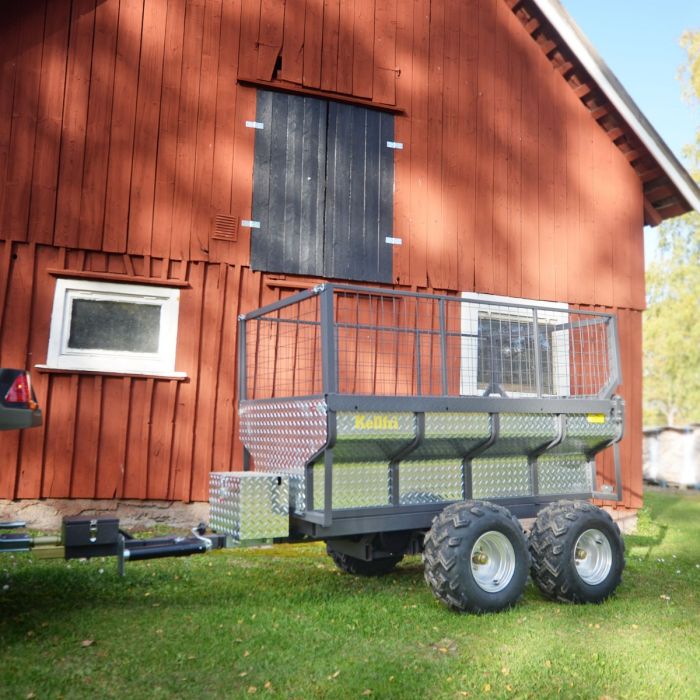

Note: Some images show the trailer with extension sides, a battery box, or a quick-lock tailgate — these are accessories and are not included as standard.
