Kellfri ATV Tipping Trailer 500kg with Galvanised Tread Plate
Kellfri ATV Tipping Trailer 500kg with Galvanised Tread Plate
Plus VAT
In stock
Couldn't load pickup availability
Kellfri ATV Tipping Trailer 500kg with Galvanised Tread Plate
⚠️ Price includes UK delivery. Customer assembly required (pre-assembly by arrangement)
Overview
The Kellfri TV06PRO is a multipurpose ATV tipping trailer built for demanding farm, land, and equestrian work. With a 500 kg loading capacity, galvanised tread plate construction, and a body large enough to fit an EU pallet, it's a practical, durable hauling solution for a wide range of tasks — from mucking out stables and moving hay bales to transporting logs, fence posts, and general waste. Its robust build and easy-tip design make it equally at home on a livery yard as it is on a working farm.
Key Features
- 500 kg loading capacity
- Volume capacity: 0.3 m³ (1.0 m³ with side extension accessory)
- Full galvanised tread plate body for long-term corrosion resistance

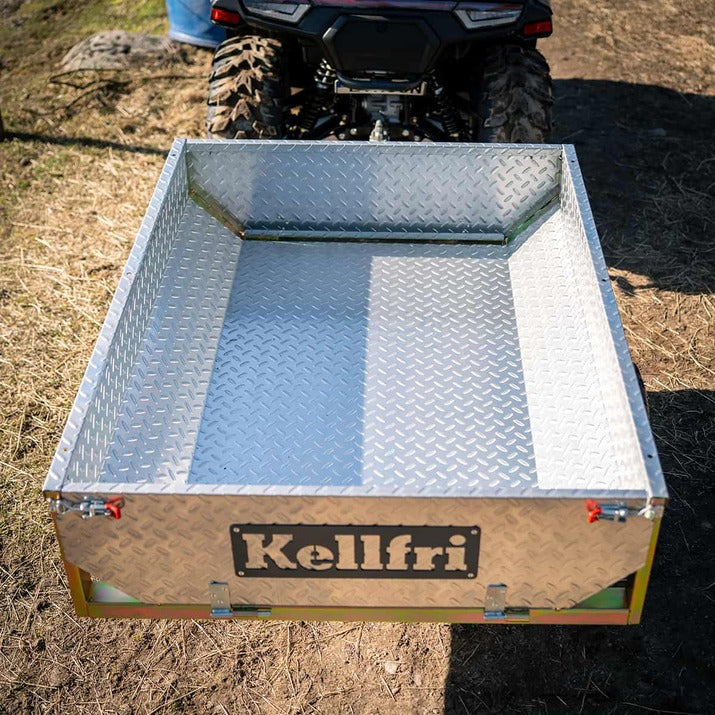

- Flat body with arched inner corners — sized to fit a standard EU pallet

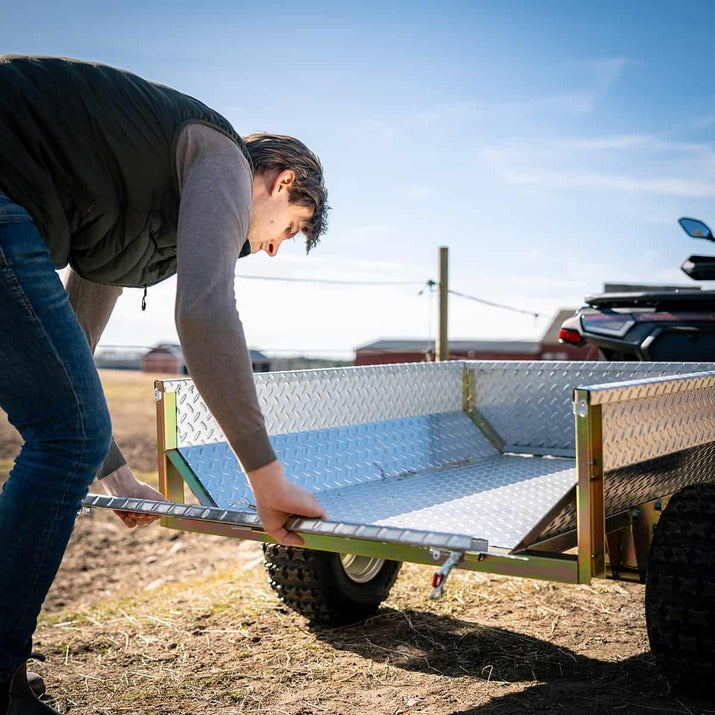

- Removable front and rear panels for transporting longer materials (logs, twigs, fence posts)
- Low loading height for easy filling

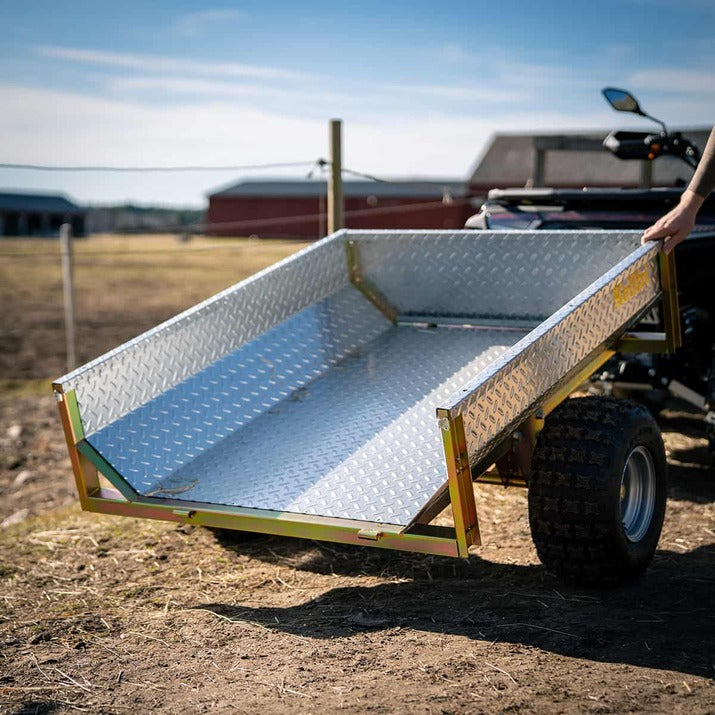

- Centrally located tilt shaft for easier tipping
- Front-end latch locking to prevent tipping while driving
- Heavy duty tyres with high ground clearance
- 50 mm ball coupling (ball glove) as standard
- Stable, lightweight, and flexible construction
- Supplied flat-pack — professional assembly available on request
Typical Uses
- Mucking out stables and transporting stable waste

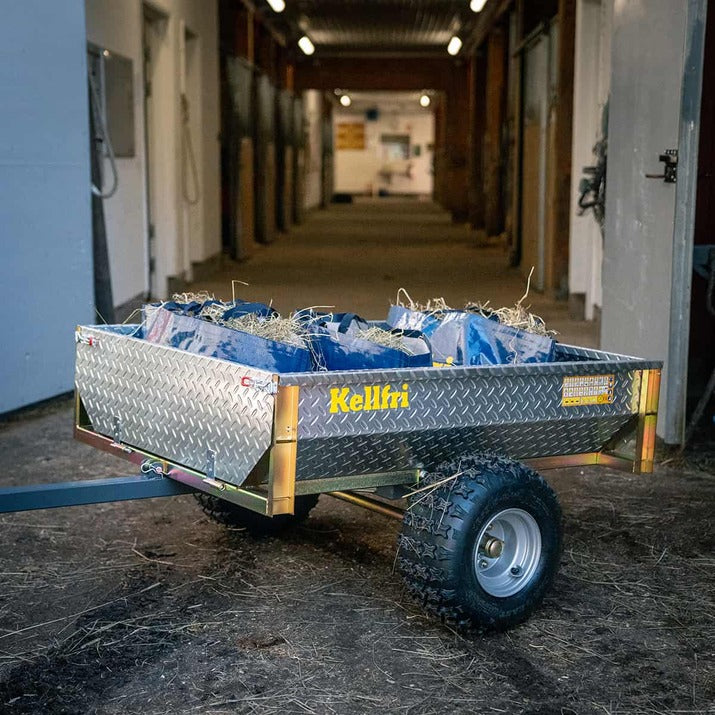

- Equestrian yard management — moving bedding, hay, and feed
- Farm and land work — logs, twigs, fence posts, and general materials
- Parks, estates, and groundskeeping
- Garden waste, leaves, and bulk loose materials
Safety & Security
- Front-end latch locking prevents accidental tipping while in motion
- Stable construction with well-dimensioned chassis
- High ground clearance for confident off-road use
Practical Elements
- Removable front and rear panels to accommodate longer loads
- Arched inner corners for easy cleaning and material flow when tipping
- Centrally placed tilt shaft reduces effort when emptying
- Compatible with extension panels (available as accessory) for bulky loads such as bags, leaves, and loose material
Specifications
| Specification | Detail |
|---|---|
| Product No. | 23-TV06PRO |
| Max. Load | 500 kg |
| Weight | 105 kg |
| Volume (standard) | 0.3 m³ |
| Volume (with side extension) | 1.0 m³ |
| Tip Angle | 45° |
| Plating Thickness | 1.5 mm |
| Body Material | Galvanised tread plate |
| Coupling | 50 mm ball coupling |
Product Add-Ons & Accessories
| Item | Type | Price (ex. VAT) |
|---|---|---|
| Assembly (supplied flat-pack — we can assemble for you) | Service | Price on request |
| Side Extension Panels | Accessory | Price on request |
| Extension Bracket for TV06PRO | Accessory | £150.00 |
| Extension Bracket for TV06PRO (Grille) | Accessory | £150.00 |
This trailer is supplied flat-pack. Professional assembly is available — contact us for a quote. Side extension panels increase body volume from 0.3 m³ to 1.0 m³.
